Alur Orthopedic Implants
Alur Orthopedic Implants

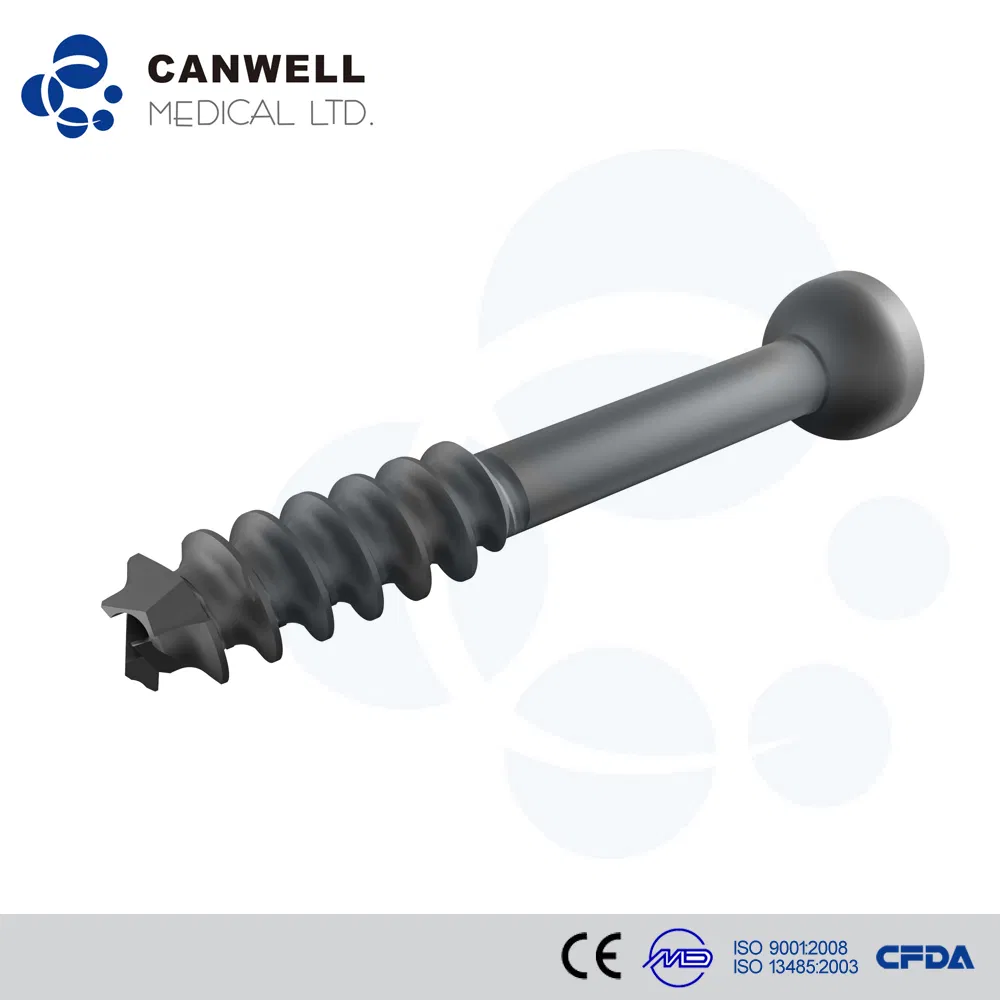

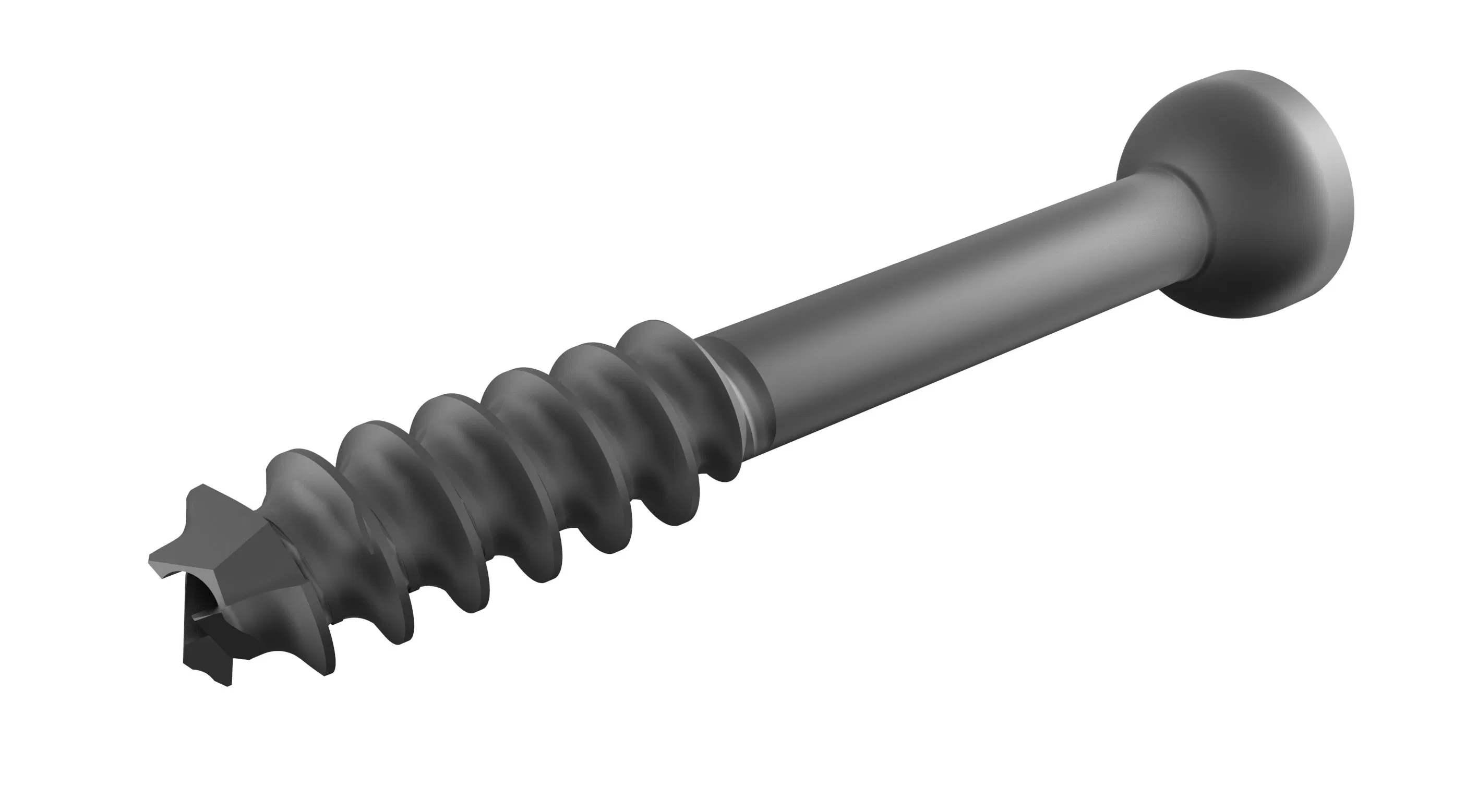

Orthopedic Plates and Screws 4.5mm Cannulated Screw
| Product Name | Orthopedic plates and screws 4.5mm cannulated screw |
| Material | The 4.5mm cannulated screws are made of titanium. |
| Standard | ISO 13485, ISO9001, QSR820, CE |
| Indications |
Indicated for treatment of medium fragment fractures, e.g: • Ligament fixation • Patella fractures • Talus and calcaneus fractures • Acetabulum and pelvis fractures • Medial malleolus and pilon tibial fractures |

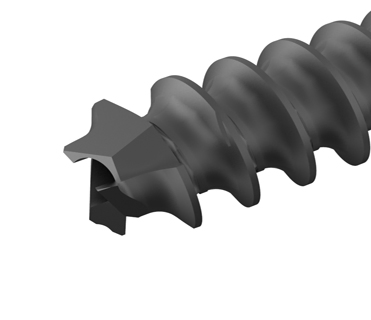

Thread Detail

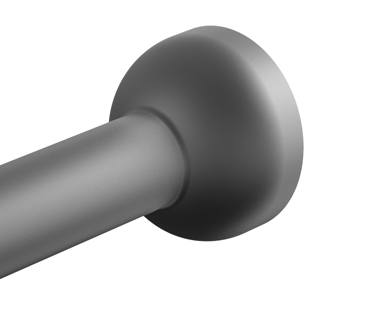

Head Detail

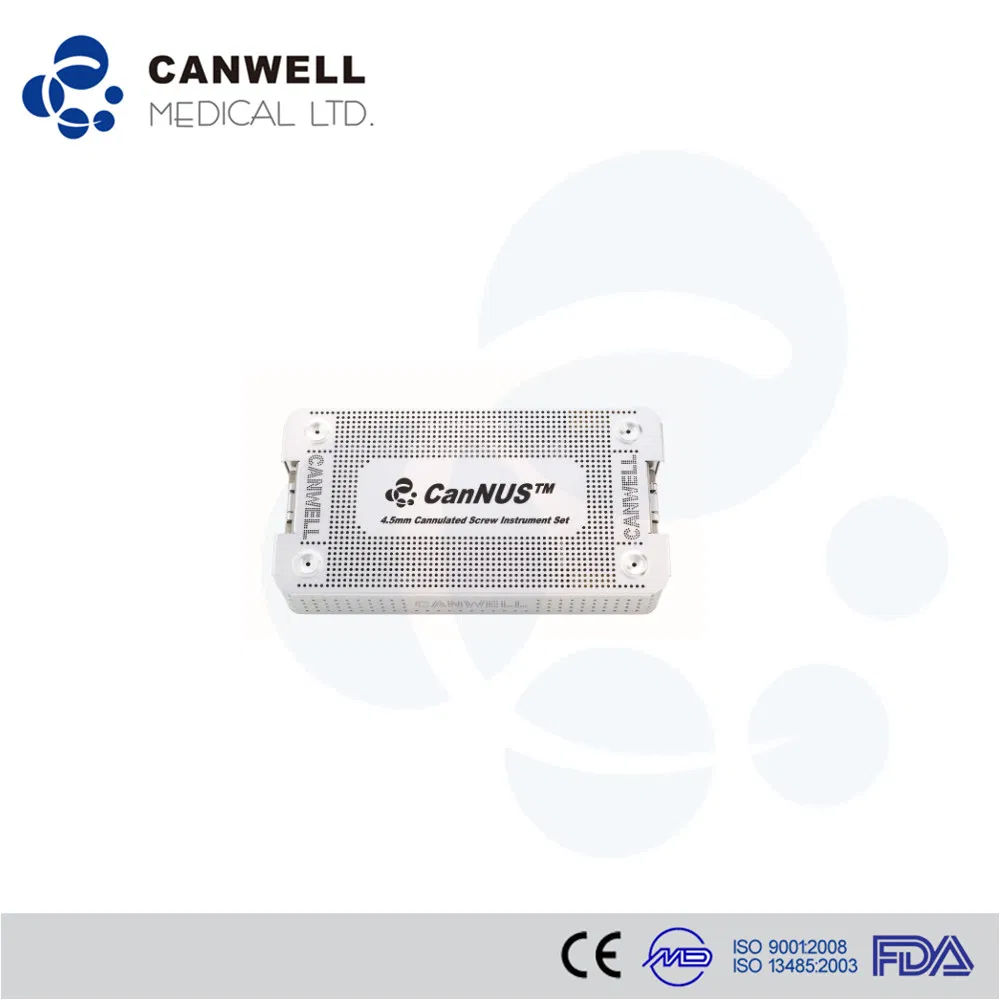

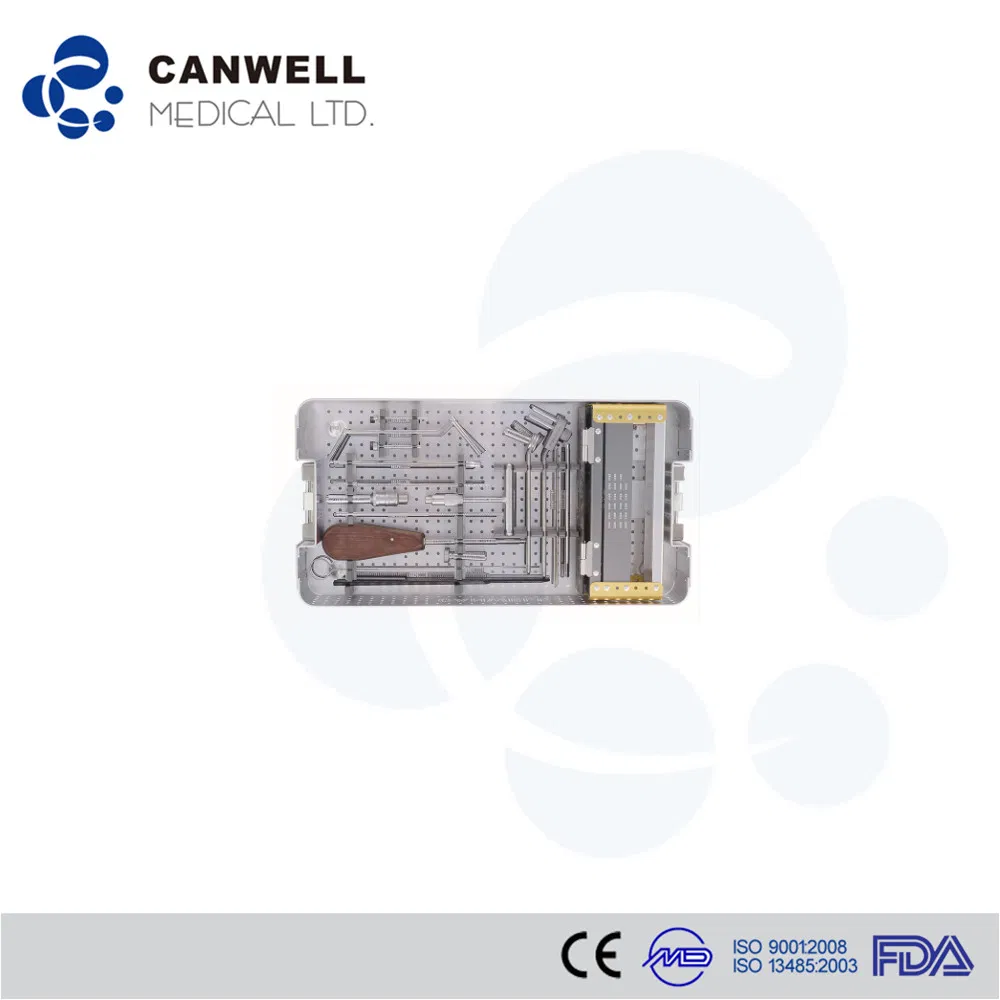

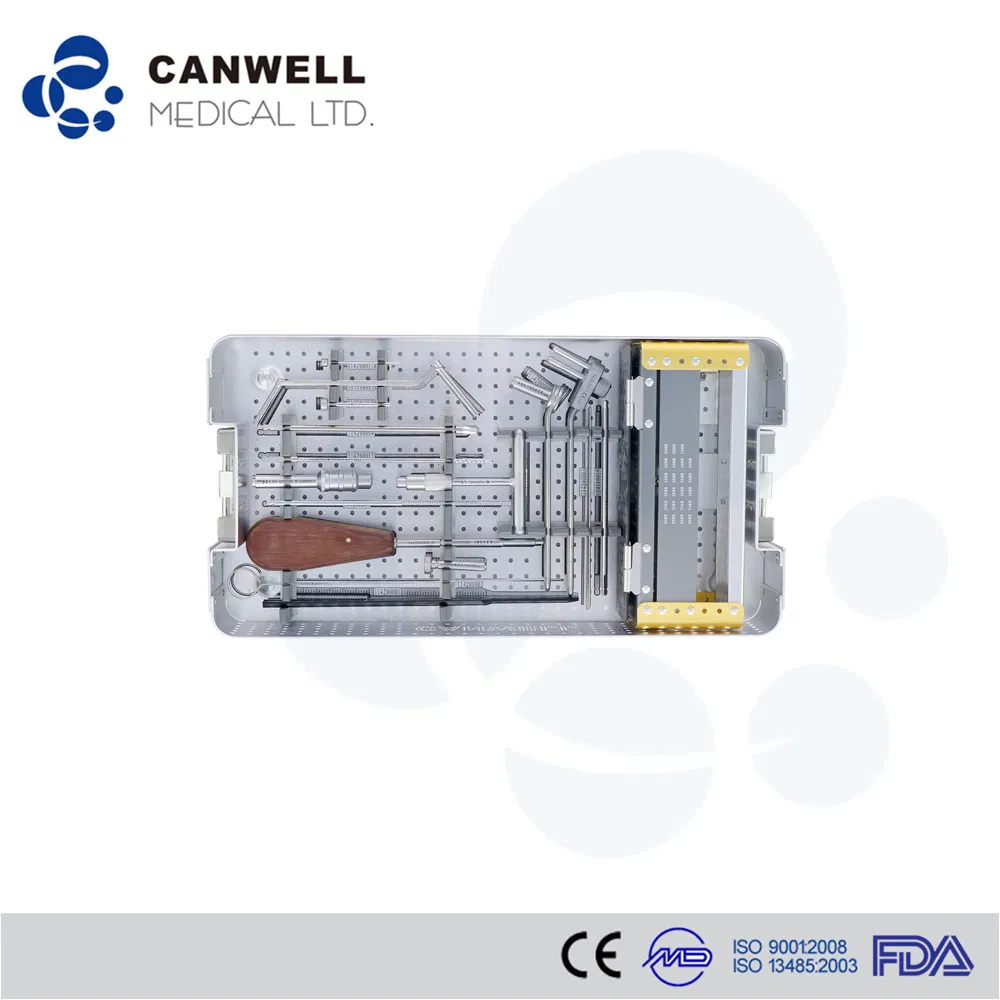

| P.N | Description | Qty. |
|---|---|---|
| 112100024 | T-handle with Quick Coupling Length 90mm | 1 |
| 113100013 | Universal Drill Guide Ø4.5/3.2mm | 1 |
| 114110015 | Screwdriver shaft with quick coupling, hexagonal Length 100mm SW3.5 | 1 |
| 114200001 | Depth Gauge Length 150mm/230mm | 1 |
| 114200003 | φ1.6mm Kirschner Wire Length 150mm Thread Length 11mm | 10 |
| 114200004 | Countersink Drill Bit Length 160mm | 1 |
| 114200012 | φ3.2 Cannulated Drill Bit Length 170mm | 1 |
| 114200014 | Cannulated Tap for Cancellous Bone screw φ4.5mm | 1 |
