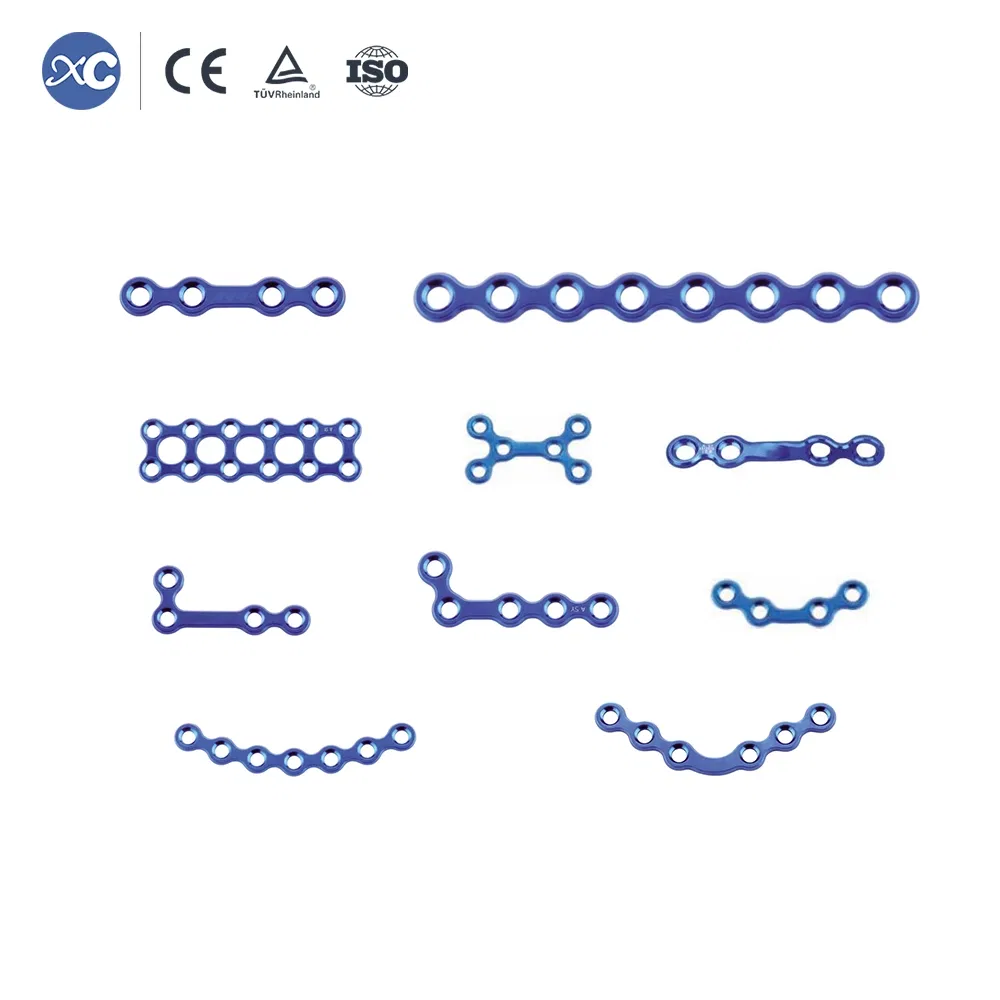

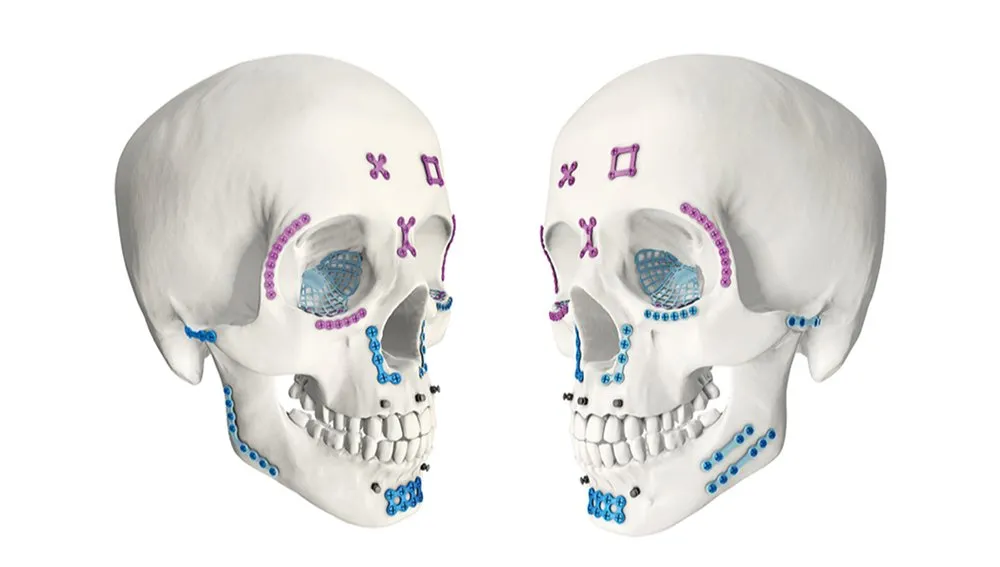

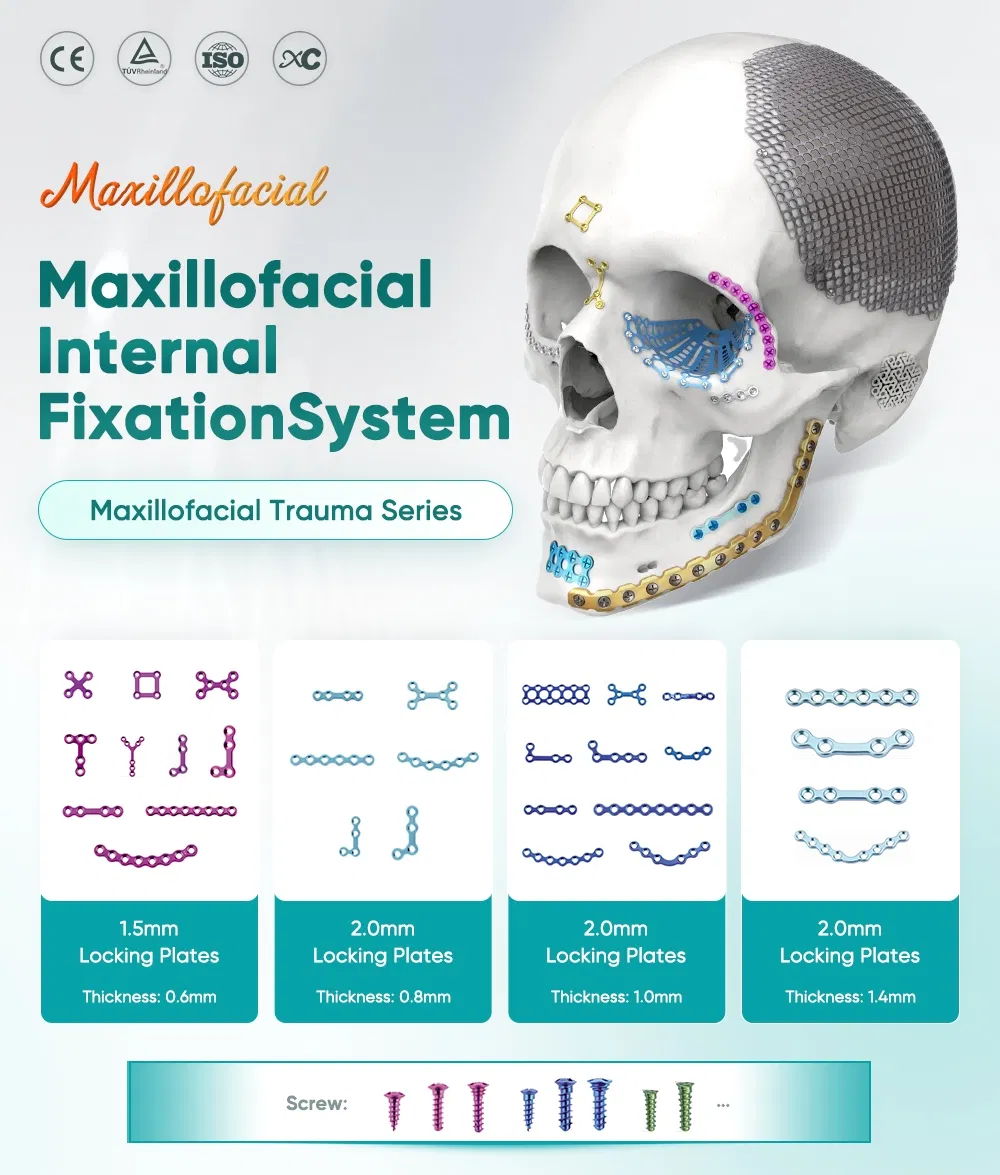

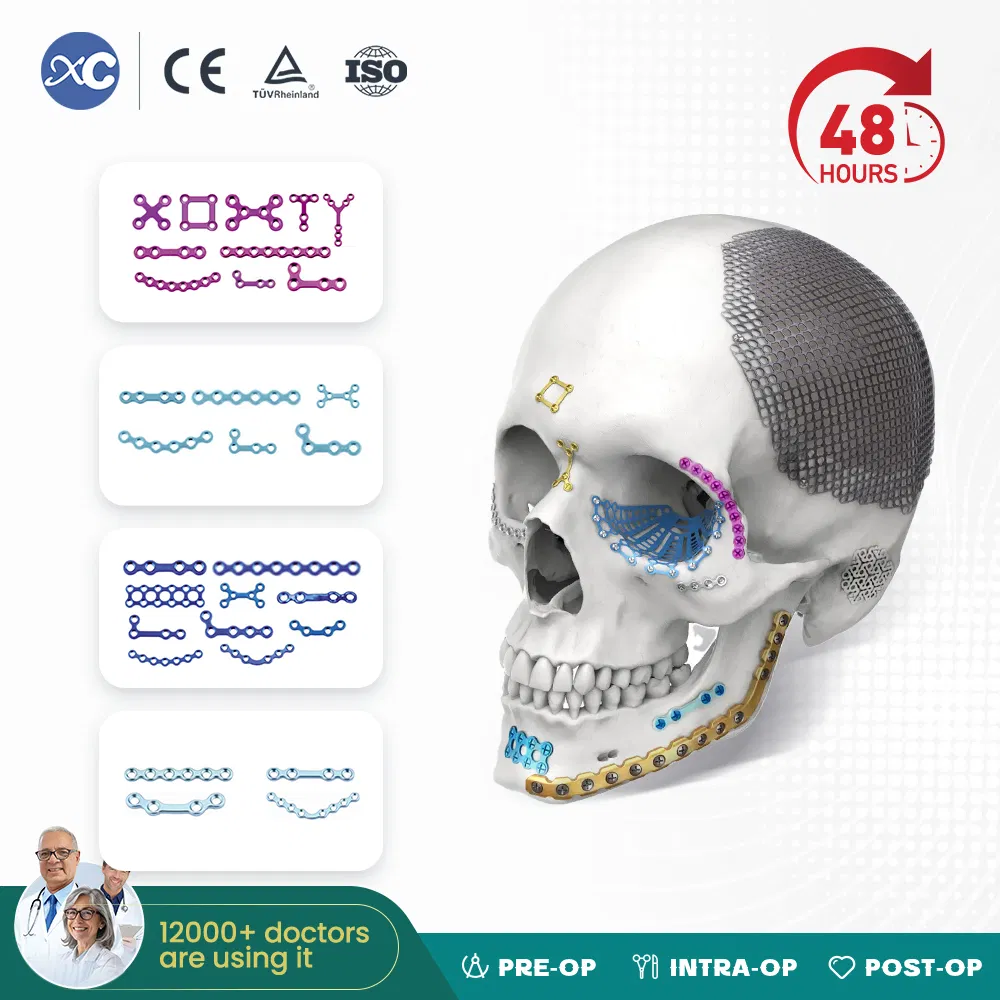

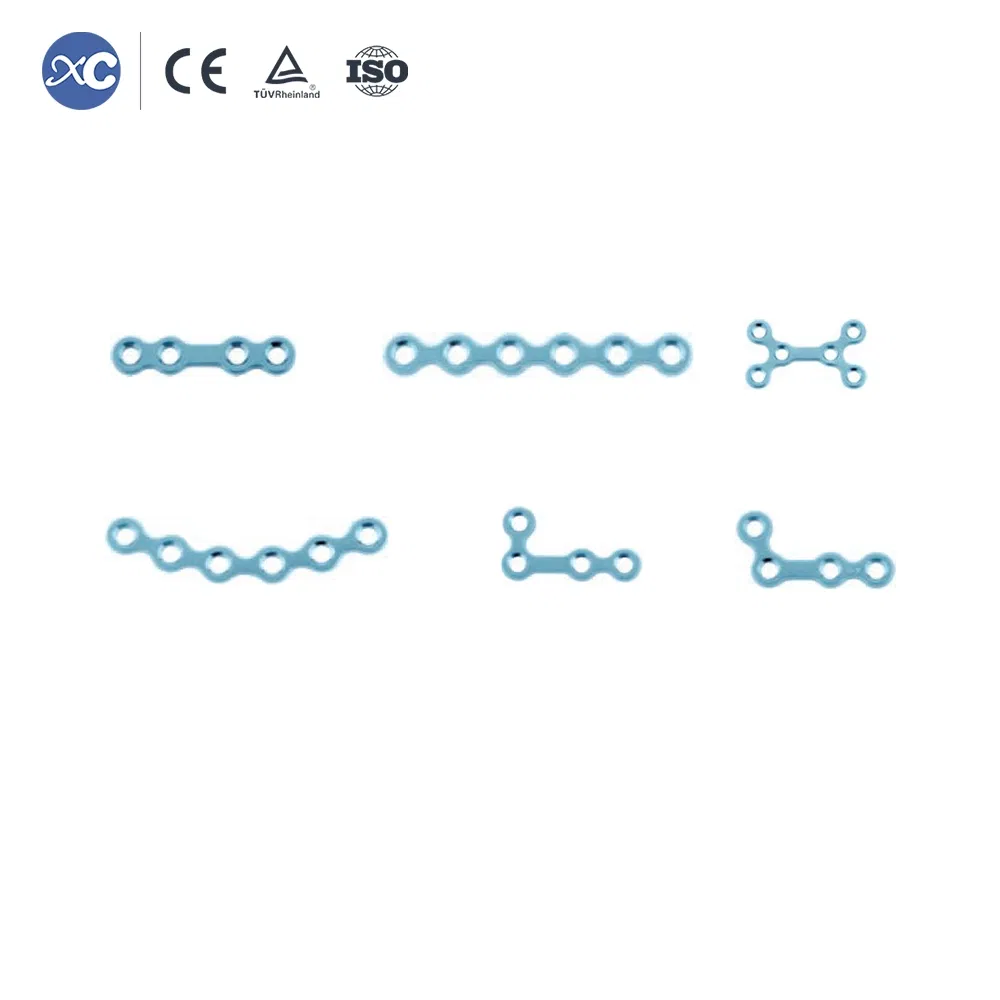

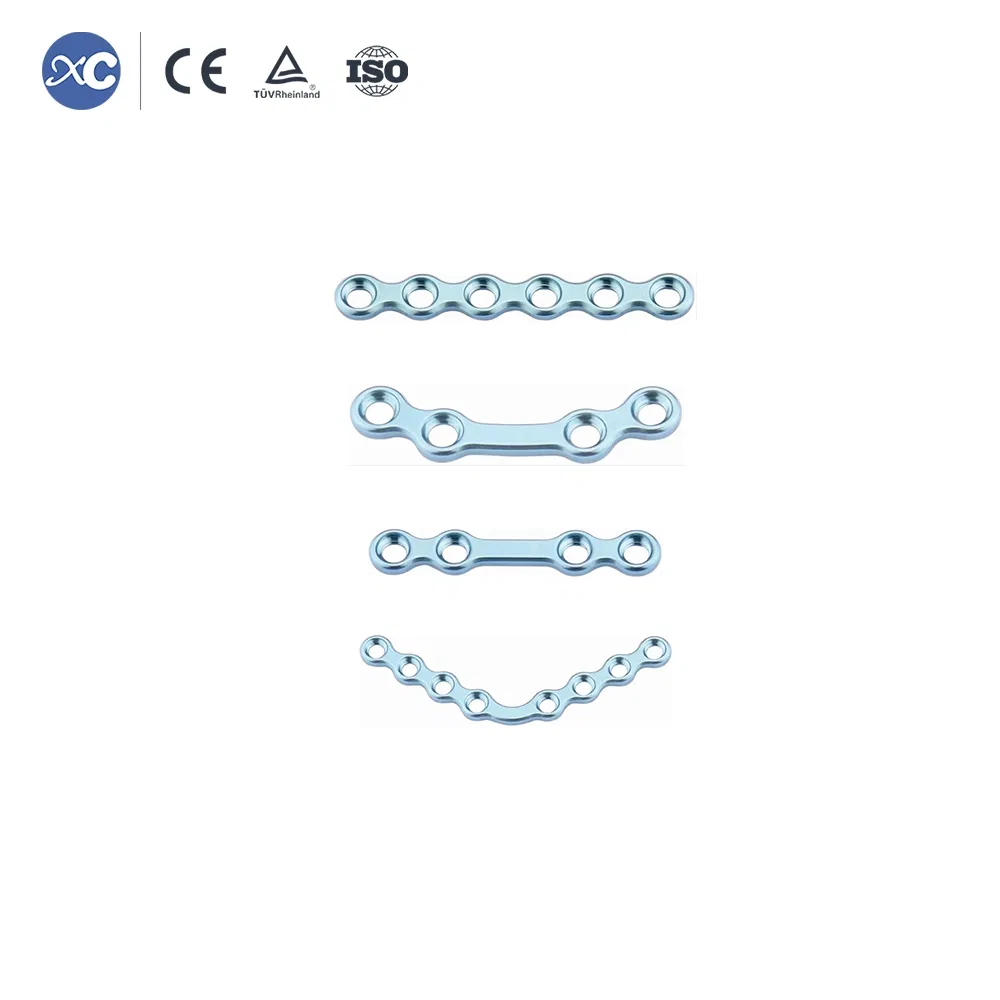

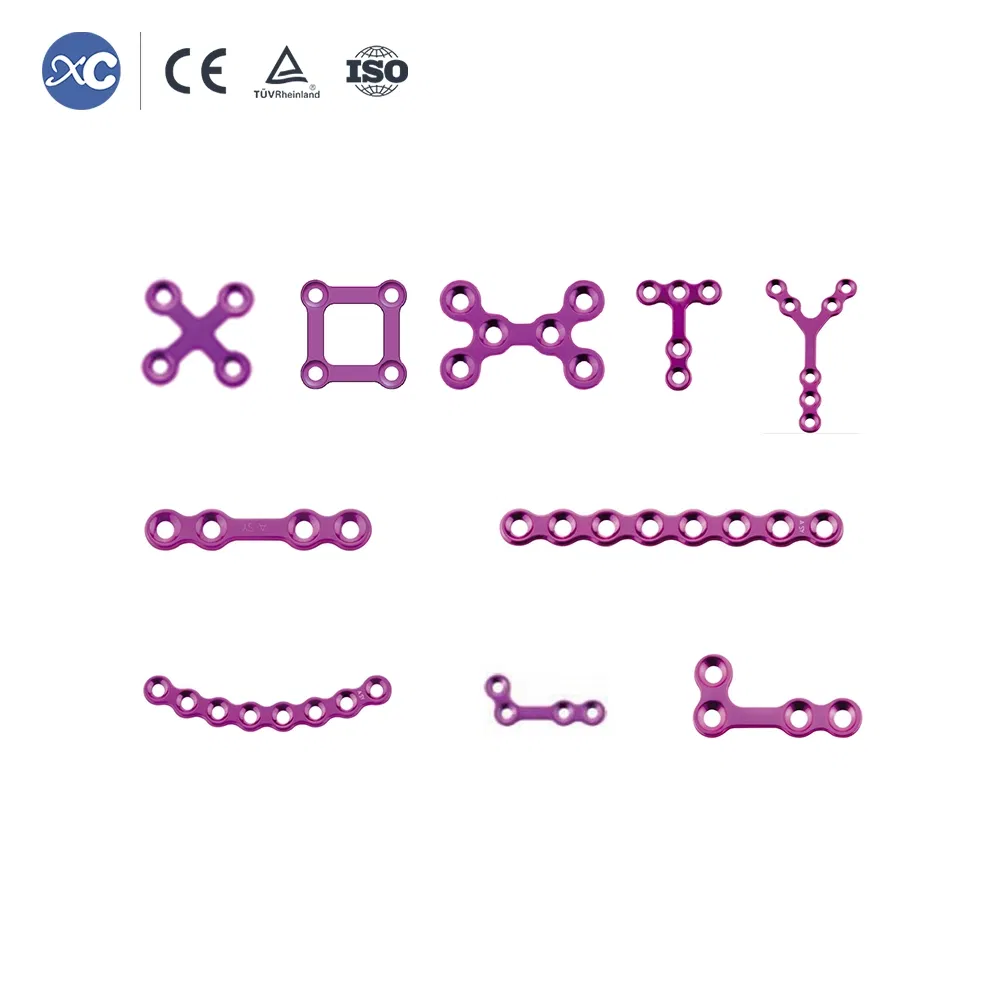

Maxillofical Locking Plate System
| 1.5mm Locking Plates (Thickness: 0.6mm) | ||
| 1.5 Maxillofacial Micro Locking X-Plate | RP1HS414X1 | 4 holes, 0.6mm, 14mm |
| 1.5 Maxillofacial Micro Locking Rectangular Plate | RP1HS414J1 | 4 holes, 0.6mm, 14*14mm |
| 1.5 Maxillofacial Micro Locking Straight bridge Plate | RP1HS420J1 | 4 holes, 0.6mm, 20mm |
| 1.5 Maxillofacial Micro Locking Straight Plate | RP1HS624Z1 - RP1HS1456Z1 | 6-14 holes, 24-56mm |
| 2.0mm Locking Plates (Thickness: 0.8mm) | ||
| 2.0 Maxillofacial Mini Locking Straight bridge plate | RP2HS424ZQ2 - RP2HS429ZQ2 | 4 holes, 24-29mm |
| 2.0 Maxillofacial Mini Locking Straight plate | RP2HS635Z2 - RP2HS1271Z2 | 6-12 holes, 35-71mm |
| 2.0mm Locking Plates (Thickness: 1.0mm & 1.4mm) | ||
| 2.0 Maxillofacial Mini Locking Rectangle plate | RP2HS824J3 - RP2HS1650J3 | 8-16 holes, 1.0mm thickness |
| 2.0 Maxillofacial Mini Straight Locking plate | RP2HS635Z4 - RP2HS1695Z4 | 6-16 holes, 1.4mm thickness |

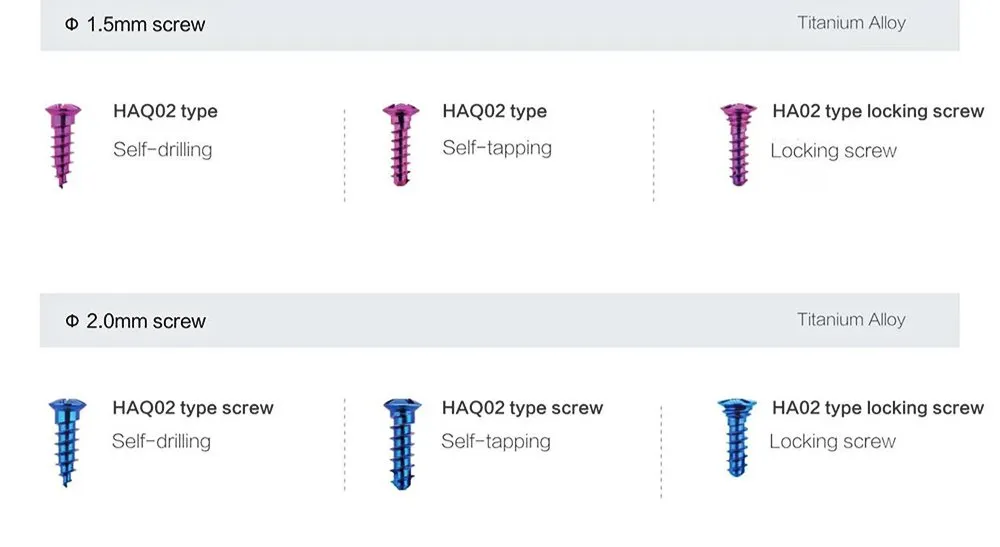

| Φ2.0 self-tapping locking Screw | RSH205D5SZG - RSH211SZG | 2.0*5.5mm to 2.0*11mm |
Plates have no front or back, usable on both left and right sides.

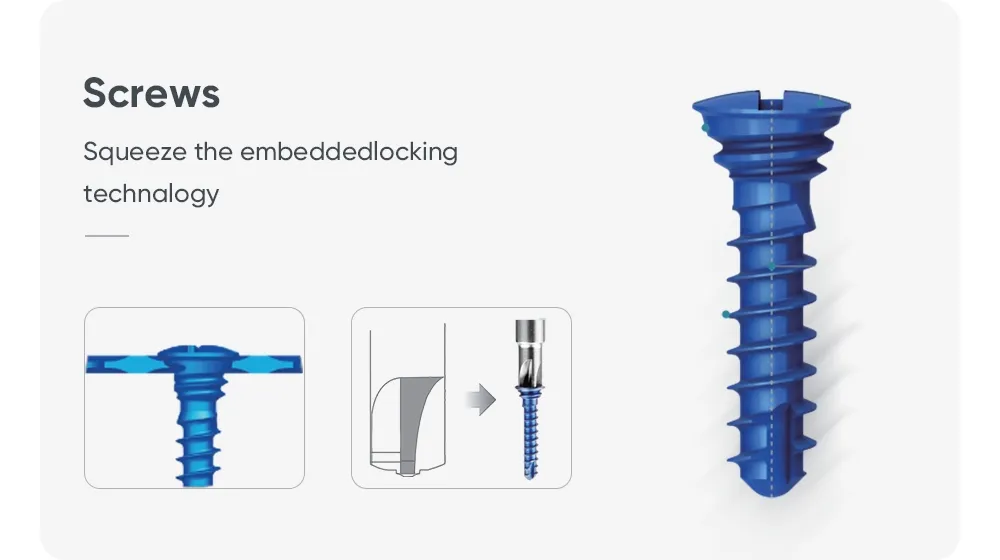

Radial compression fit between screw and plate ensures strong, stable fixation independent of bone quality.
Supports both locking and non-locking fixation for greater flexibility and broader indications.

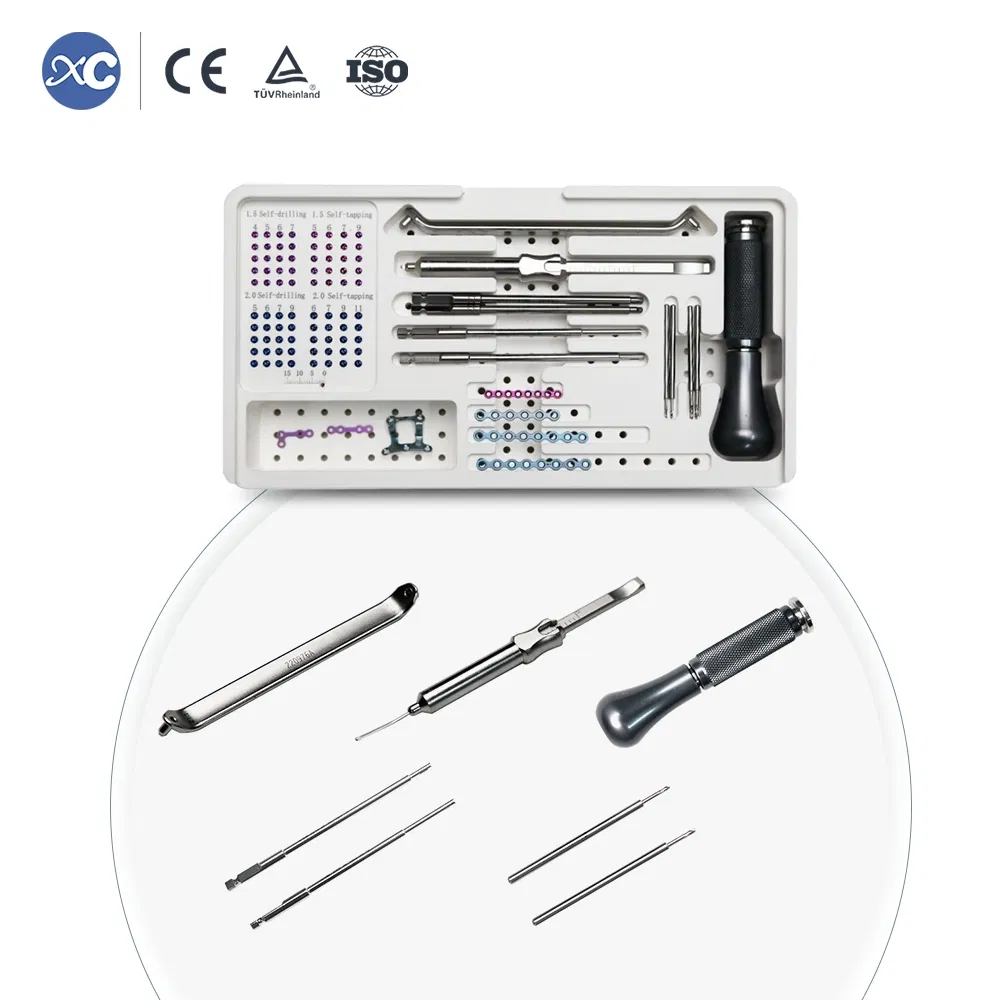

Match surgical instrument set: 1.5/2.0mm Maxillofacial Plate Instrument Set

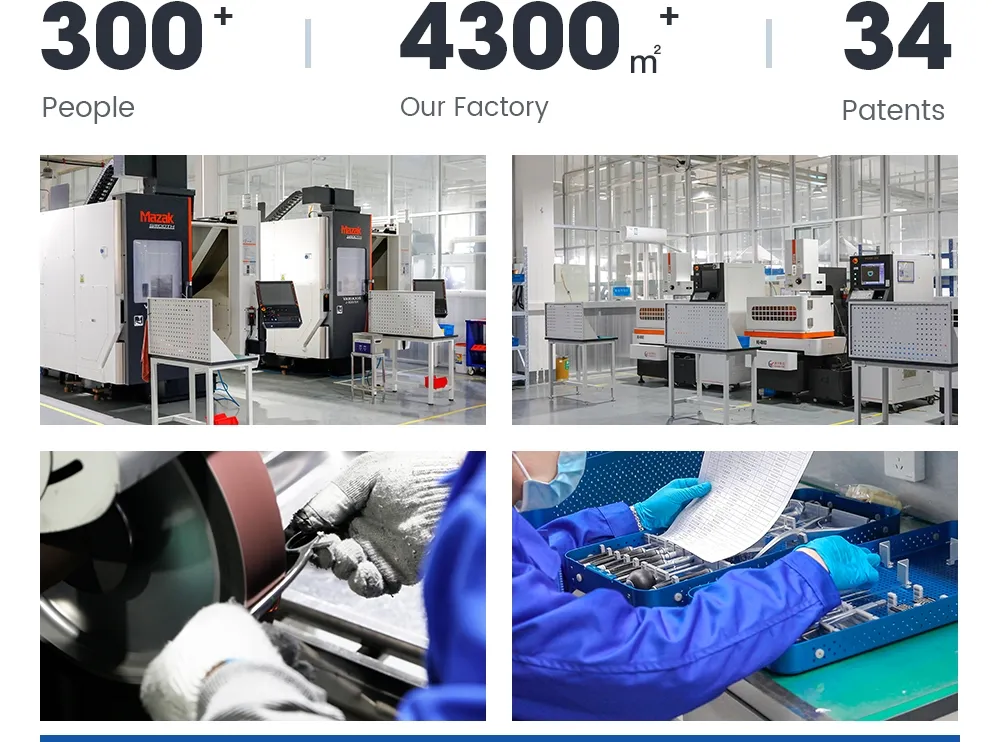

Professional Manufacturer
