Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
1 / 5
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.

Continuous Feed Blasting System for Steel Plating.

Customization: Available
After-sales Service: 1 Year Warranty and Consult Forever
Warranty: 12 Months From Date of Commissioning Completion.
Send Inquiry

Product Description

Basic Info.
Model NO.
Q69 Shot Blast Machine
Application
Steel Plate Pre-Treatment
Fuel
Electric
Type
Crawler Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, RoHS
Condition
New
Cleaning Standard
SA 2.5
Weight (Kg)
5tons - 30tons
Machine Type
Abrator
Material
Metal / Coil
Product Description

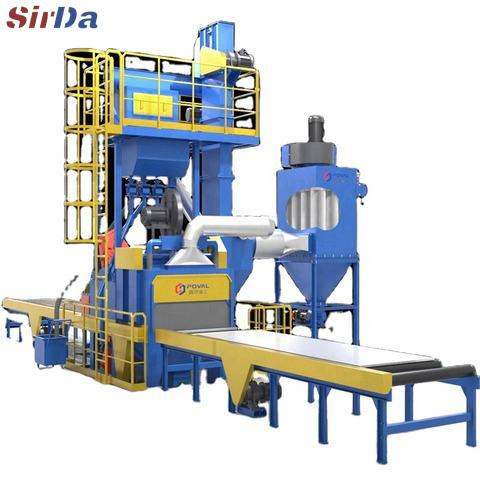

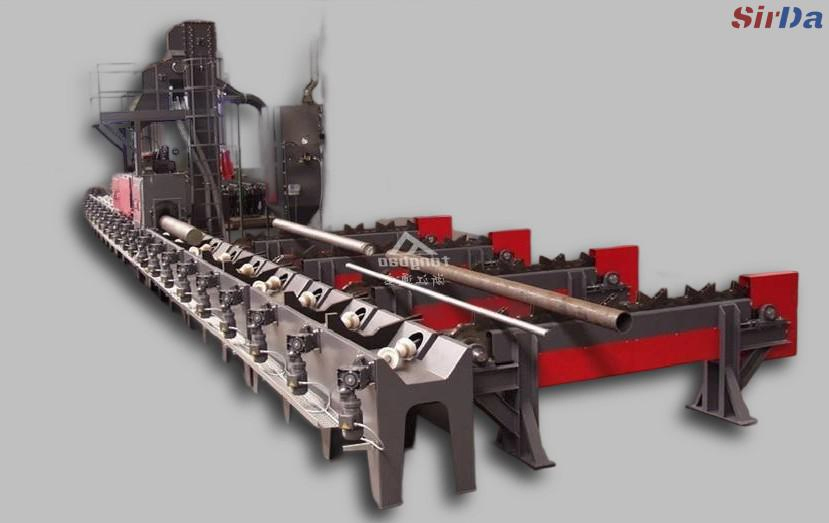

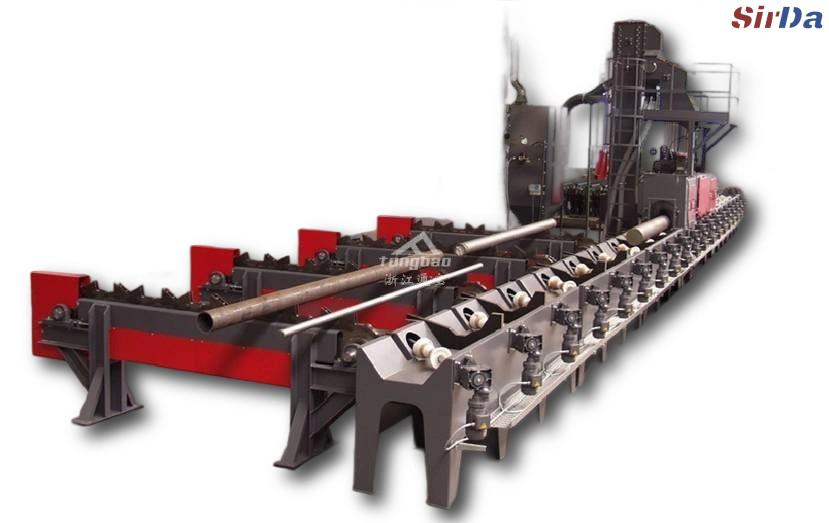

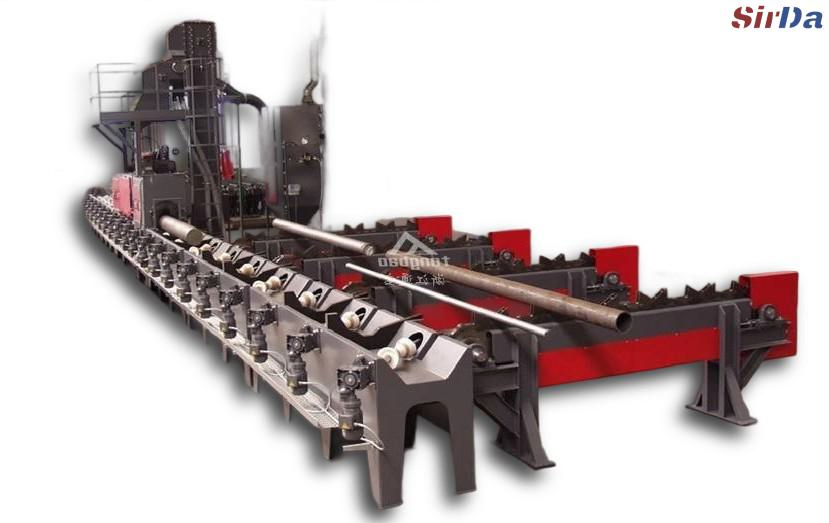

Q69 Series Roller Conveyor Type Shot Blasting Machine

The Q69 series roller conveyor type shot blasting machine is designed to clean the external surfaces of steel pipes, round bars, drilling rods, and more. It efficiently removes rust, oxide layers, and paint films while intensifying the surface quality.

Key Applications
  • Removing scale and rust from metal profiles and sheet metal components.
  • Surface treatment of H-beams, steel plates, profiles, angle steel, pipes, etc.
  • Sandblasting cleaning of complex welded structures (top/bottom plates, welded ribs, etc.).
  • Typical industries: Steel and shipbuilding, automotive, motorcycle, bridges, and heavy machinery.
Technical Specifications

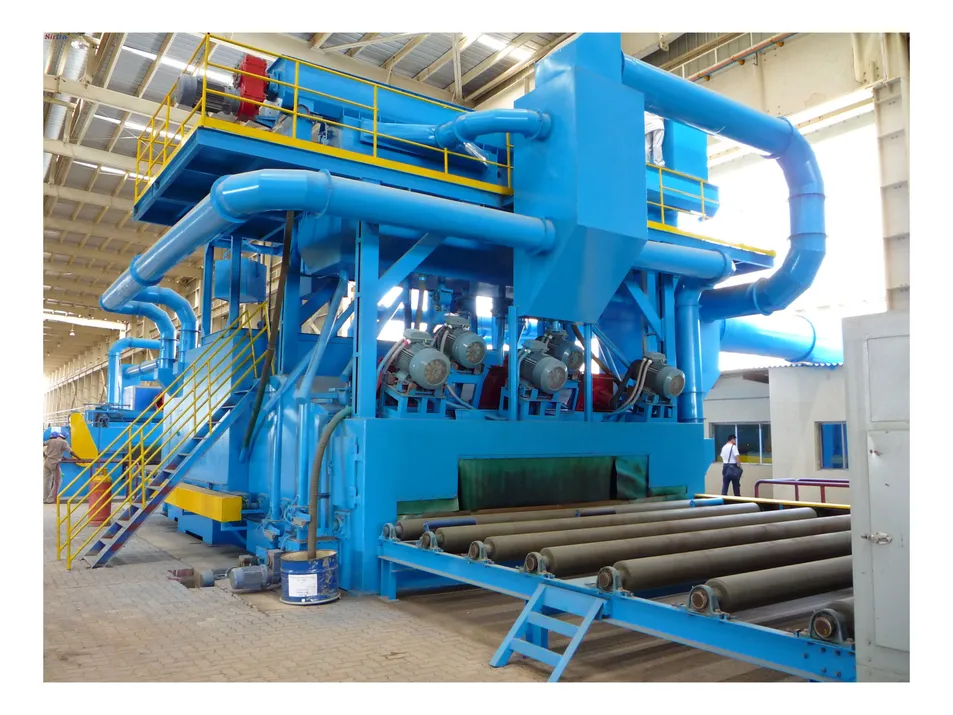

Shot Blast Cabinet
Roller Conveyor System

Load Capacity: 2 tons/meter
Roller Speed: 0.5–4 meters/minute
Special alloy sleeves for 4,000+ hours life.

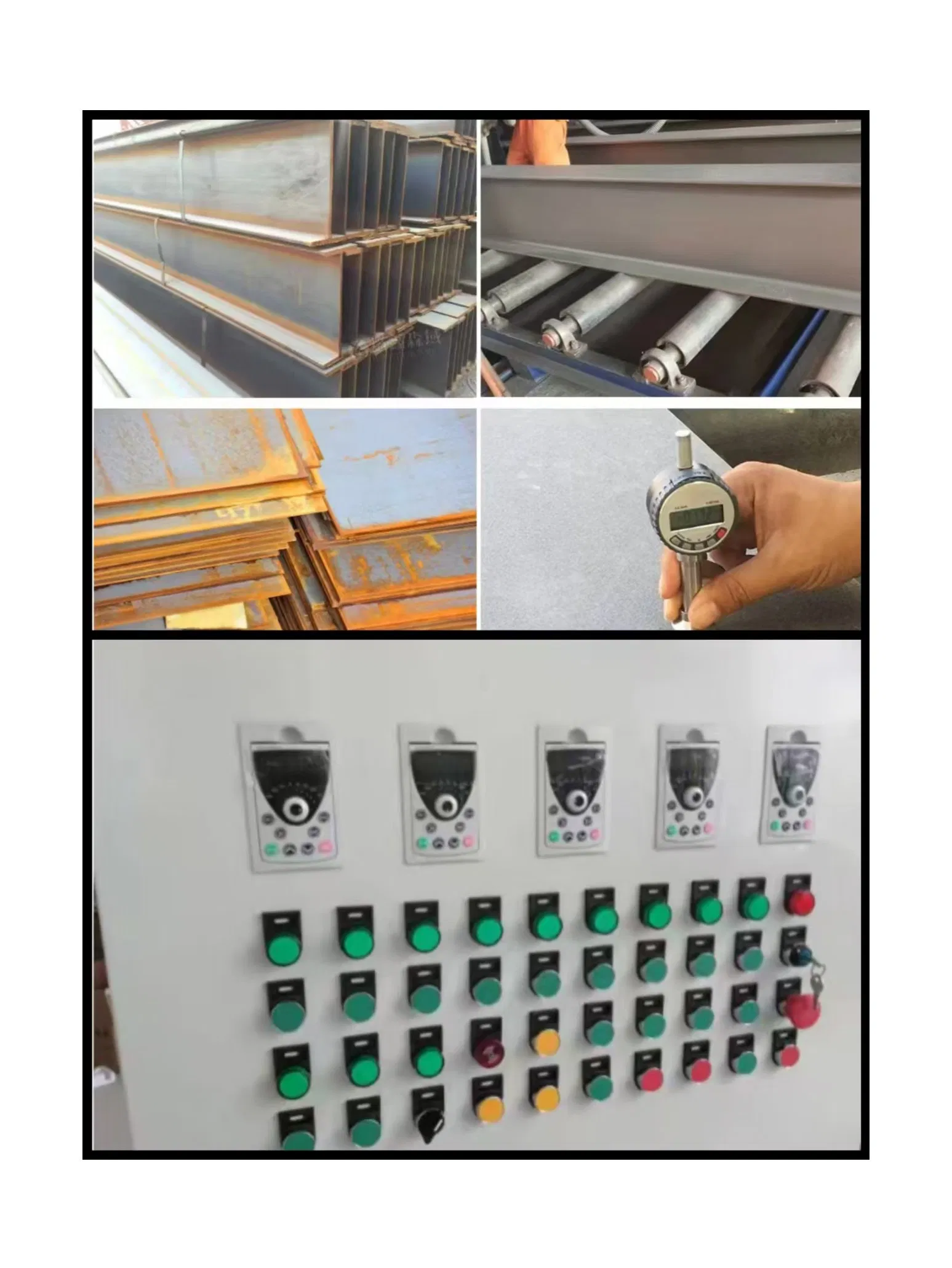

Blast Chamber
Blast Chamber & Control

Main & auxiliary chambers with 4-layer rubber curtains. PLC Control (Siemens/Omron) with emergency stop units.

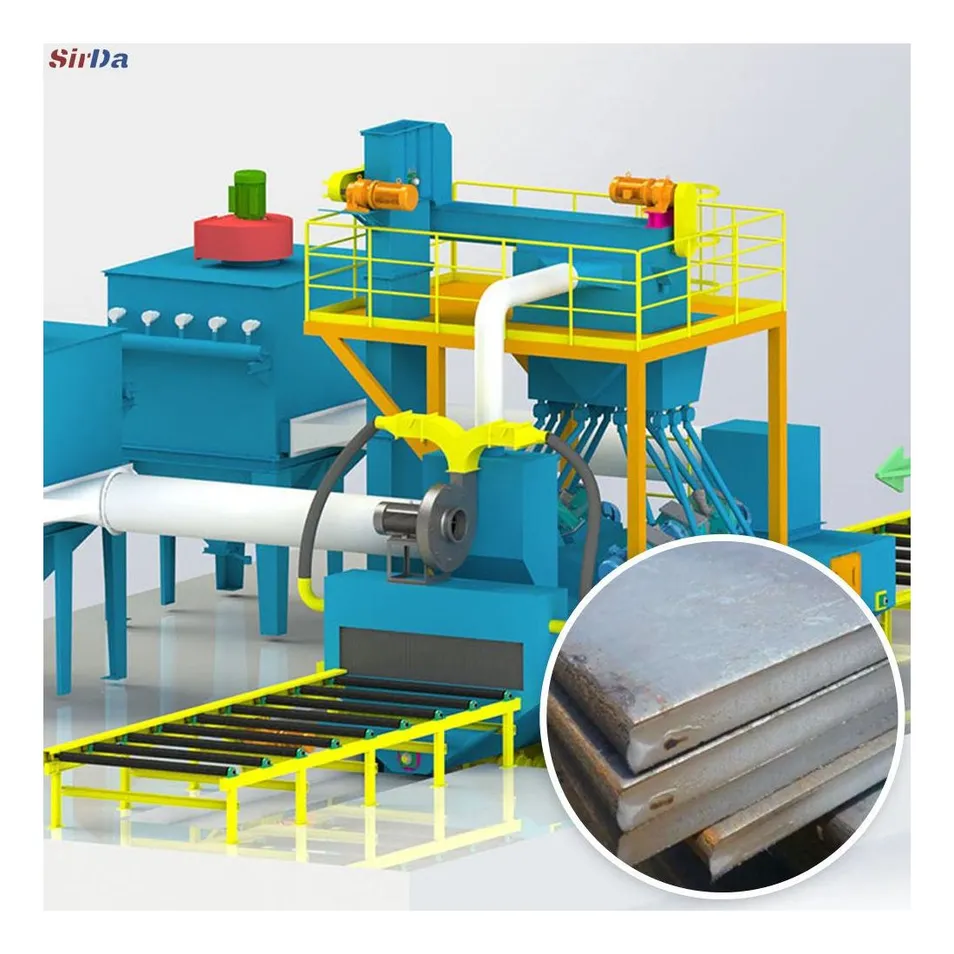

Abrasive Removal Unit
Abrasive Removal Unit

Features rotating interchangeable brushes and a blow-off station using high-pressure ventilators.

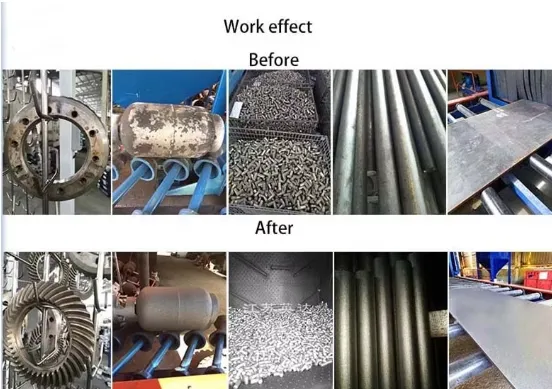

Customizable Equipment
Fully Customizable

Non-standard designs based on your specific dimensions. Frequency converter synchronization available.

Environmental Protection

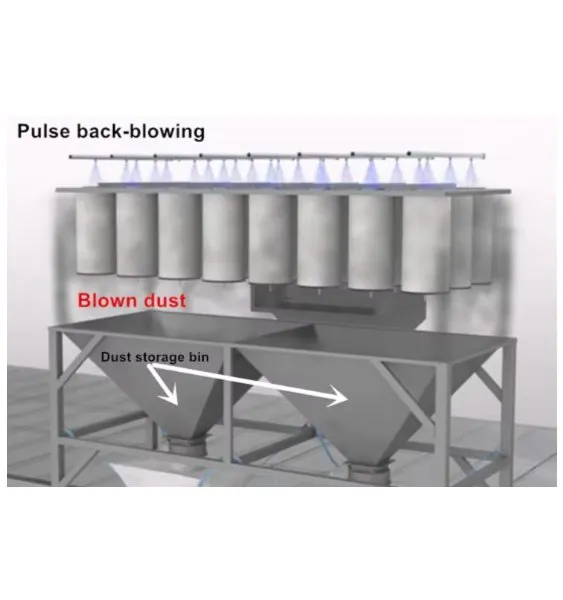

Dust Removal System
High Dust Removal Efficiency

Consists of ductwork and cartridge dust collectors. Emission levels reduced to 80g/m³.

  • Fan Power: 30 kW
  • Airflow: 26,000 m³/h
Product Parameters

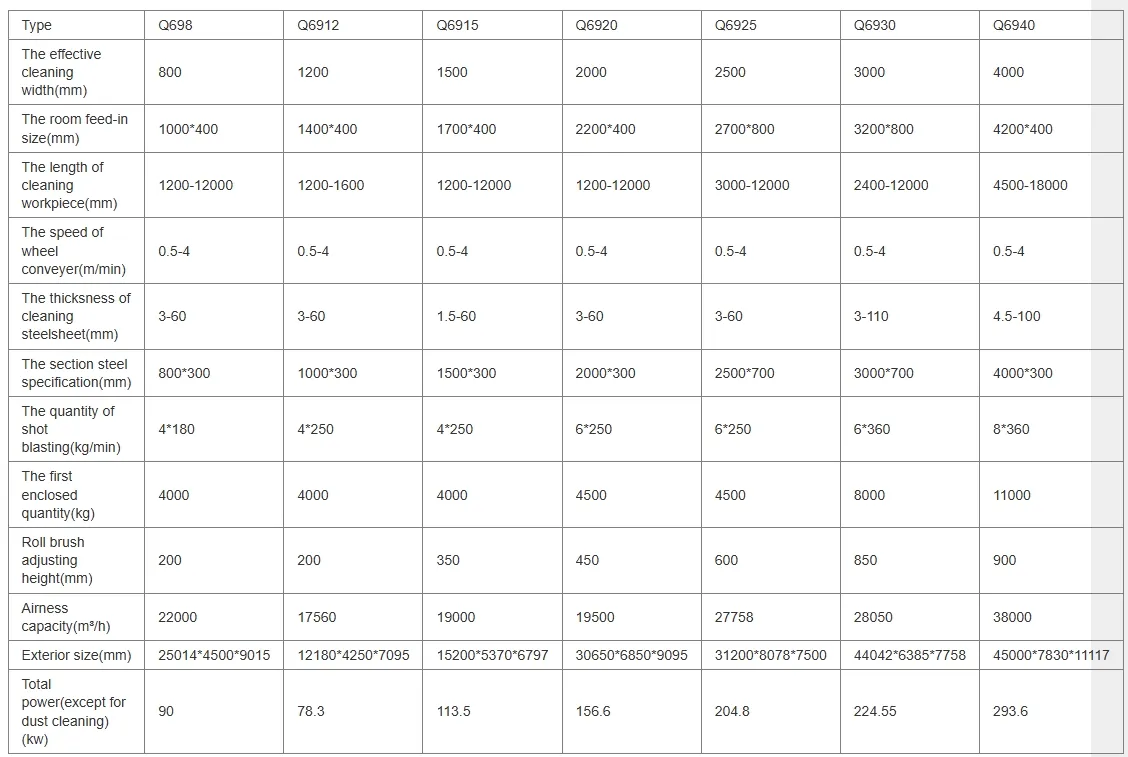

Specifications Table
Certifications
Certificate 1
Certificate 2
Packaging & Shipping
Container: 40'HQ container
Departure Port: Shanghai
Lead Time: Approx. 30 days

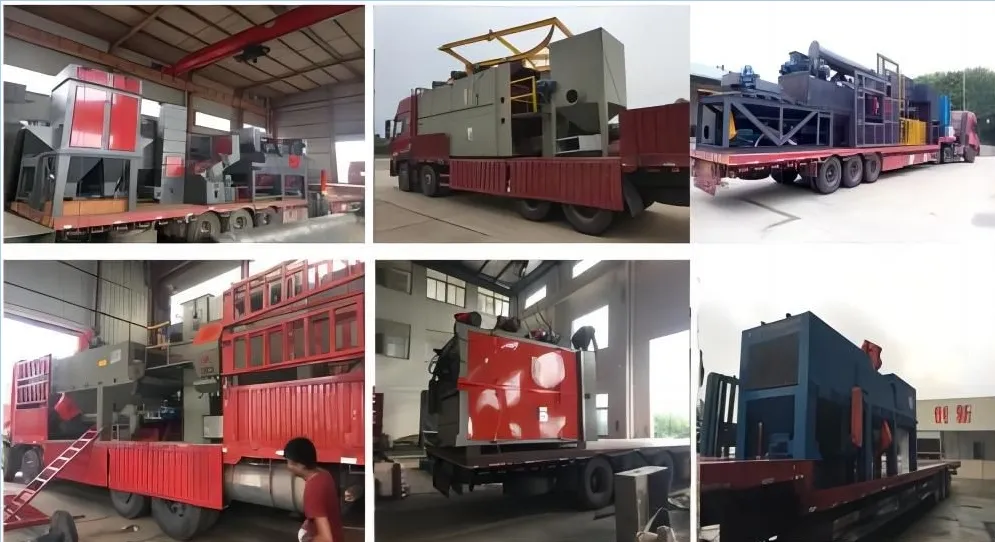

Shipping Details
Frequently Asked Questions
How many days are required to produce this machine?
Standard machines are in stock for immediate delivery. Customized designs typically require 30 to 50 days from engineering to completion.
How does the factory handle quality control?
Quality control is prioritized throughout the process. Each machine is fully assembled and undergoes rigorous testing before shipment.
What is the machine's quality guarantee?
The quality guarantee period is one year. We utilize world-renowned brand components to ensure optimal working conditions.
Do you provide overseas installation and commissioning?
Yes, we provide overseas services. We send technicians to assist with installation, commissioning, and staff training. Timeframes vary from 5 to 20 days depending on machine size.
What English documentation is provided?
We supply comprehensive English documentation including foundation drawings, manual books, electrical wiring diagrams, and maintenance guides.
Is the machine customizable for specific dimensions?
Yes, we specialize in designing and manufacturing non-standard steel pretreatment equipment based on the specific dimensions you provide.
