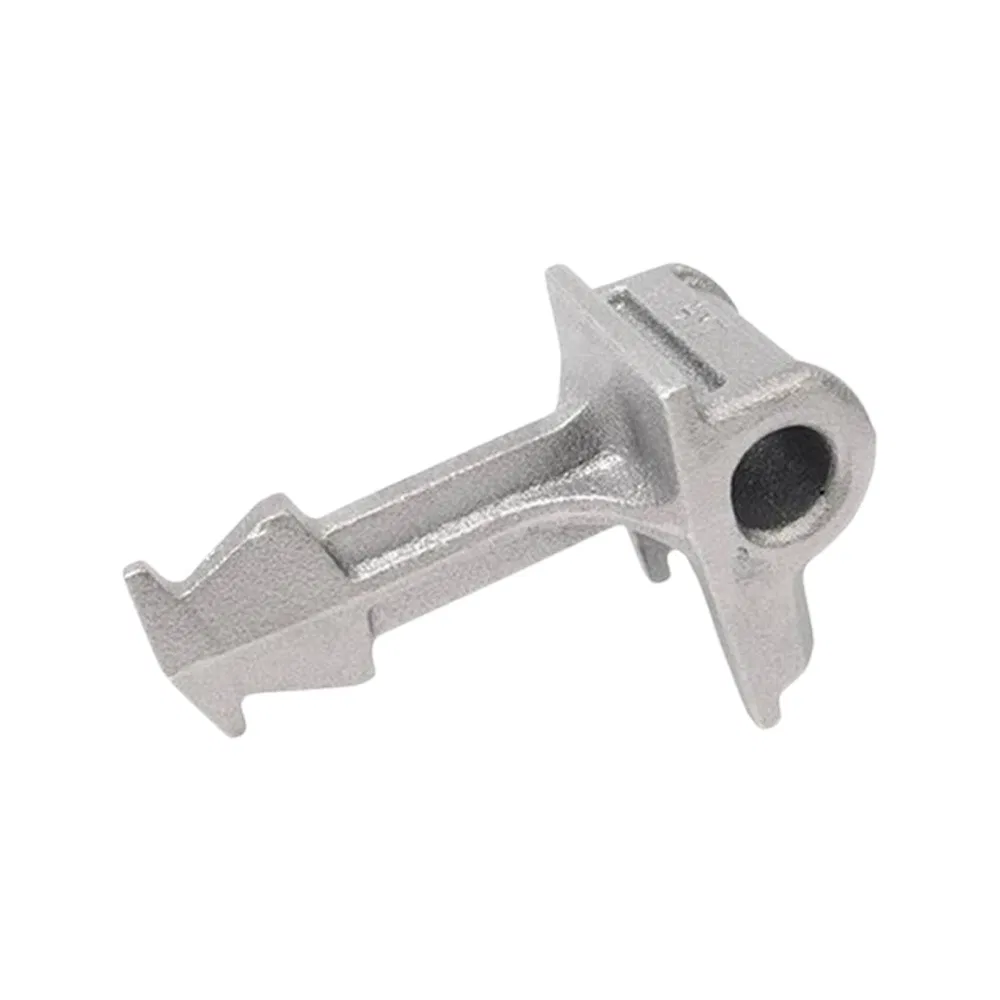

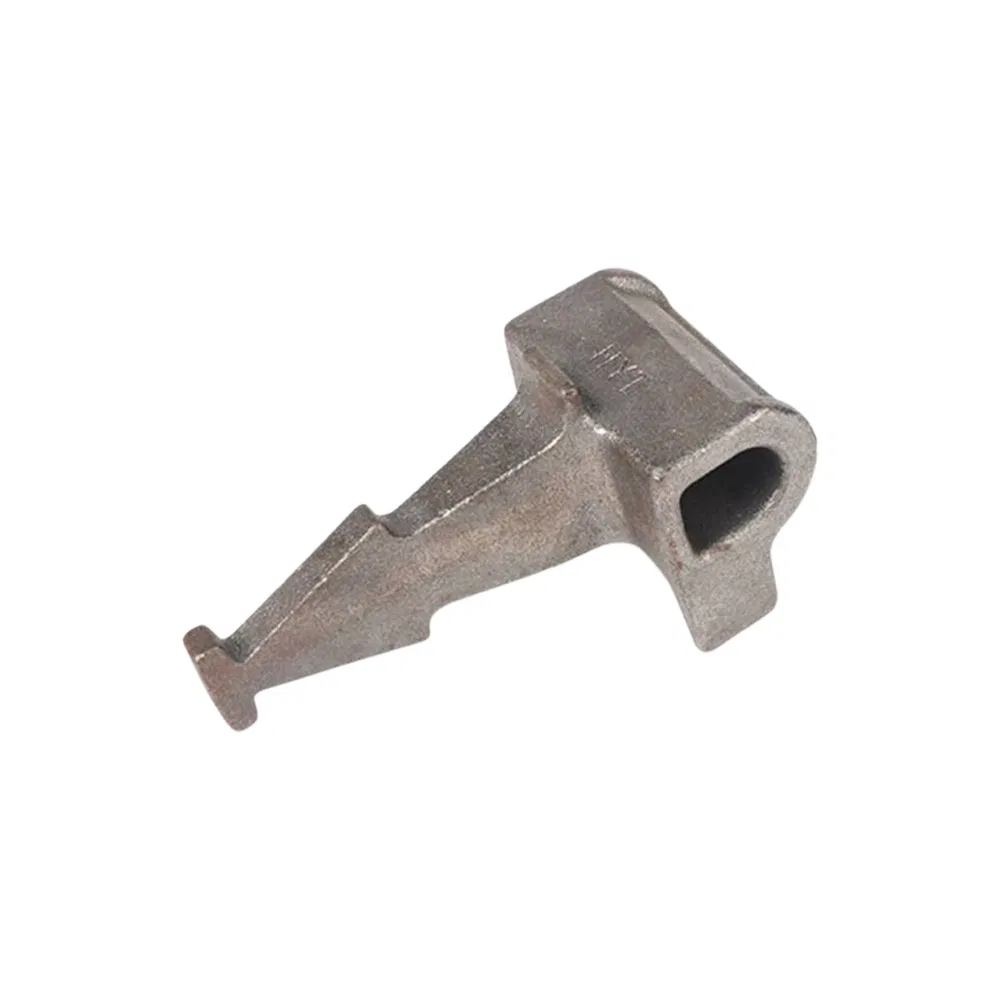

Direct Factory Sales Customized Malleable Iron Rail Shoulder

1 / 5

Direct Factory Sales Customized Malleable Iron Rail Shoulder

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Certification

ISO9001

Type

Shoulder

Material

Malleable Iron

Surface

Plain Oiled

Application

Concrete Sleeper

Processing

Casting

Hardness

130-230

Tensile Strength

500-400MPa

Trademark

XRD

HS Code

8431499000

Product Description

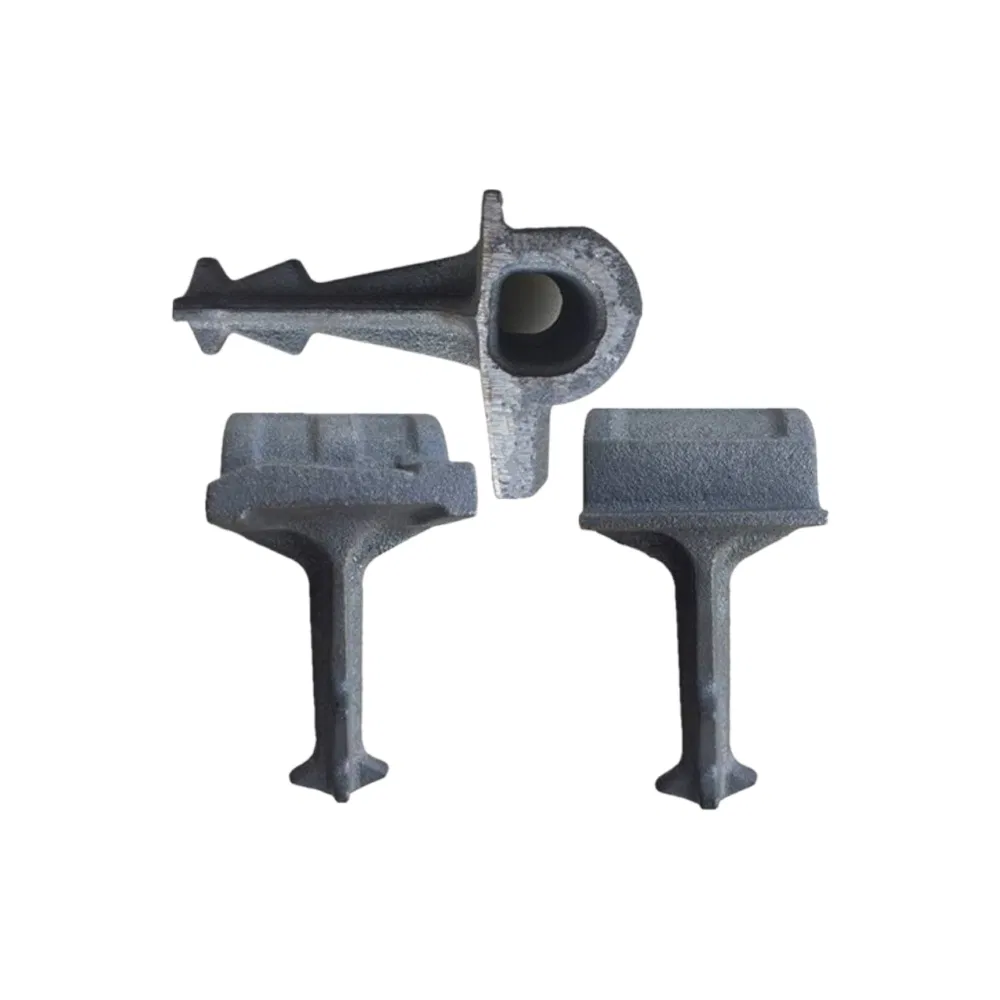

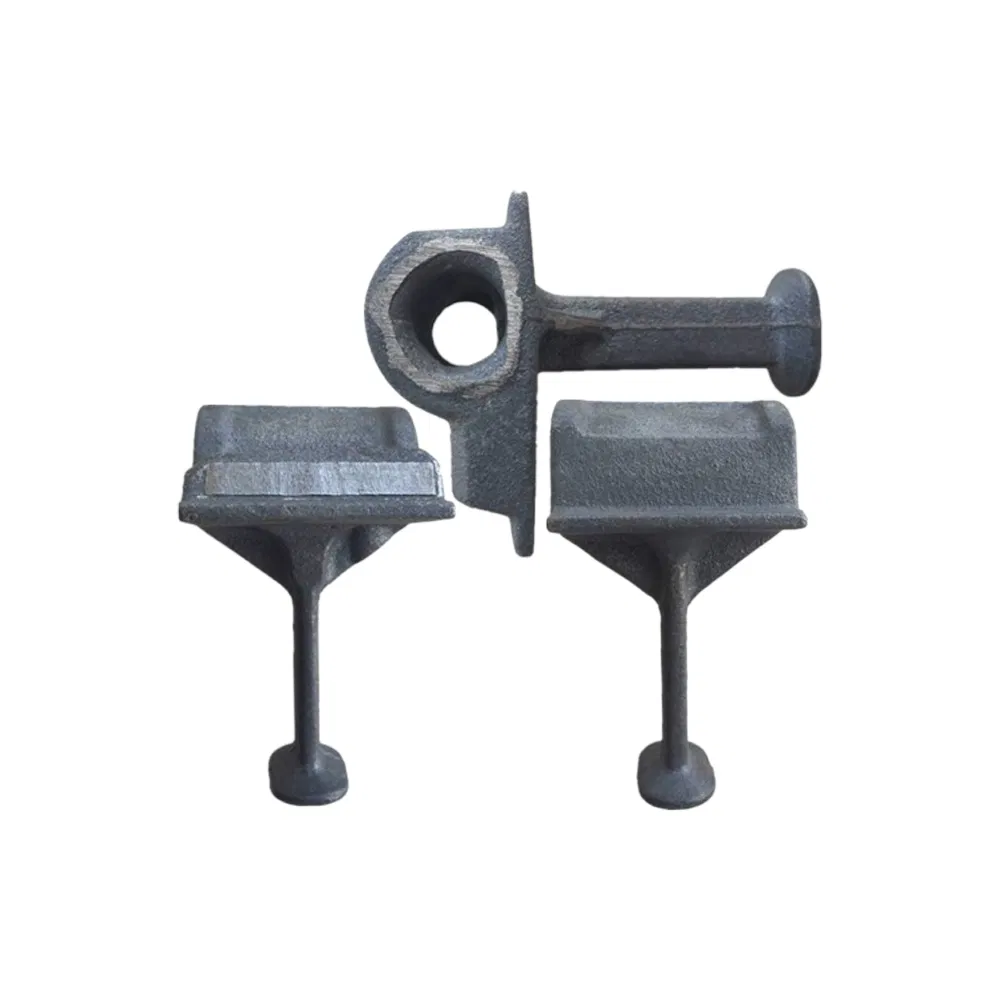

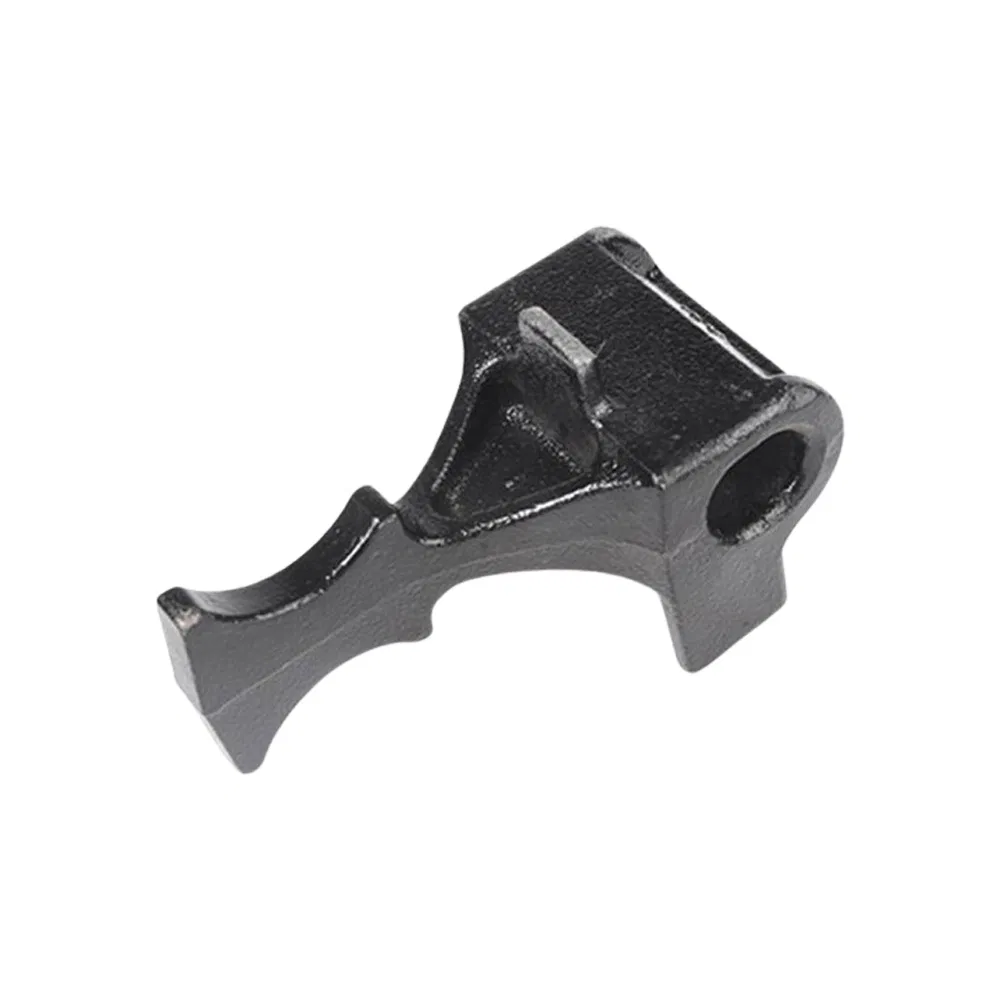

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on rail shoulder, both of which are used for the fixing of elastic rail clips.

Technical Reference Standards
Standard	GB 1348-88	GB 1348-88	GB 1348-89
Chemical Composition	C:3.60-3.80 \| Si:2.50-2.90	C:3.40-3.90 \| Si:2.70-3.00	C:3.50-3.60 \| Si:3.0-3.2
Tensile Strength	≥500 Mpa	≥450 Mpa	>400 Mpa
Yield Strength	≥320 Mpa	≥310 Mpa	≥250 Mpa
Elongation(%)	≥7	≥10	≥15
Hardness	170~230HB	160-210HB	130~180HB
Organization	Ferrite + Pearlite	Graphite + Ferrite + Pearlite	Ferrite

Product Advantages

High-Quality Materials: Manufactured from high-grade materials such as QT500-7 and QT450-10, ensuring exceptional strength and durability for demanding railway applications.

Versatile Applications: Available in cast-in and weld-on versions, compatible with UIC54, UIC60, 50kg, and 60kg rail systems.

Advanced Manufacturing: Utilizes hot forging and casting techniques for precise engineering, robust construction, and consistent quality.

Core Strengths

Quality Control

Rigorous testing to meet international standards.

Engineering

Expert team dedicated to modern rail solutions.

Services

Effective OEM & ODM customization available.

Mission

Advancing rail safety and efficiency worldwide.

Frequently Asked Questions

What factors should be considered when selecting track accessories?

Key factors include compatibility with existing track specifications, adherence to international quality standards, material durability for specific environmental loads, and overall cost-effectiveness.

How is the quality of the Rail Shoulders ensured?

Quality is guaranteed through rigorous testing procedures, sourcing from certified manufacturers, and strict compliance with industry standards like GB 1348.

Do you offer customized solutions for specific railway projects?

Yes, tailored solutions and OEM/ODM services are available to meet unique engineering requirements and specific regional standards.

What materials are used in the production of rail shoulders?

Most rail shoulders are manufactured using high-grade malleable iron or ductile iron (such as QT500-7 and QT450-10) to ensure high tensile strength and longevity.

Is technical support available for installation?

Comprehensive technical support and after-sales services are provided to assist with installation, maintenance, and troubleshooting for optimal performance.

Do you support international shipping for bulk orders?

Yes, international shipping is available to a wide range of countries. Shipping arrangements and costs are calculated based on order volume and destination.
