Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
1 / 5
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Basic Specifications
Model NO.
LH- Series
Type
PVD Vacuum Coating Machine
Technology
Physical Vapor Deposition, Cathod Arc Ion Coating
Substrate
Steel, Ceramic, Glass
Certification
CE, ISO
Operating System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue etc
Chamber Material
Stainless Steel
Coating Film
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
HS Code
8543300090
Floor & Wall Ceramic Tile PVD Ion Deposition System

This PVD Ion Deposition Machine is engineered for high-performance coating of ceramic tiles, tableware, porcelain, floor tiles, and glass mosaics. Beyond ceramics, the system is versatile enough to process metal and glass products. Our high-capacity solutions can achieve production rates of up to 1,500 square meters per day.

Core Function: The system deposits TiN (gold), Ti (silver), and other decorative/functional coatings. It serves as an eco-friendly and cost-effective replacement for traditional gold painting, offering superior adhesion and production efficiency.

Utilizing cold cathode arc discharge and magnetron sputtering technology, this machine thins particles to enhance film properties. It is a highly efficient, harmless, and pollution-free solution for modern manufacturing.

Equipment Overview
PVD Ion Deposition Machine

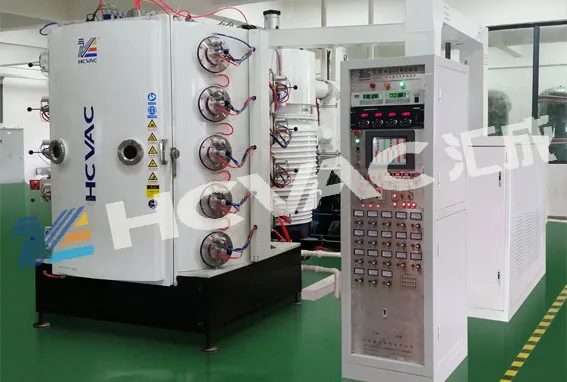

Vacuum Plating System

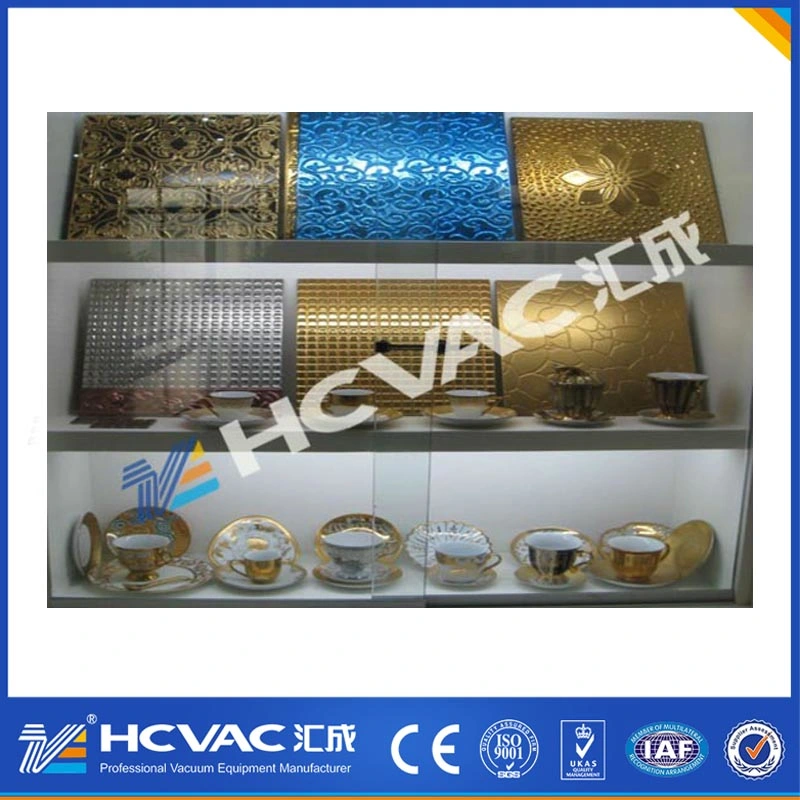

Coating Samples & Colors

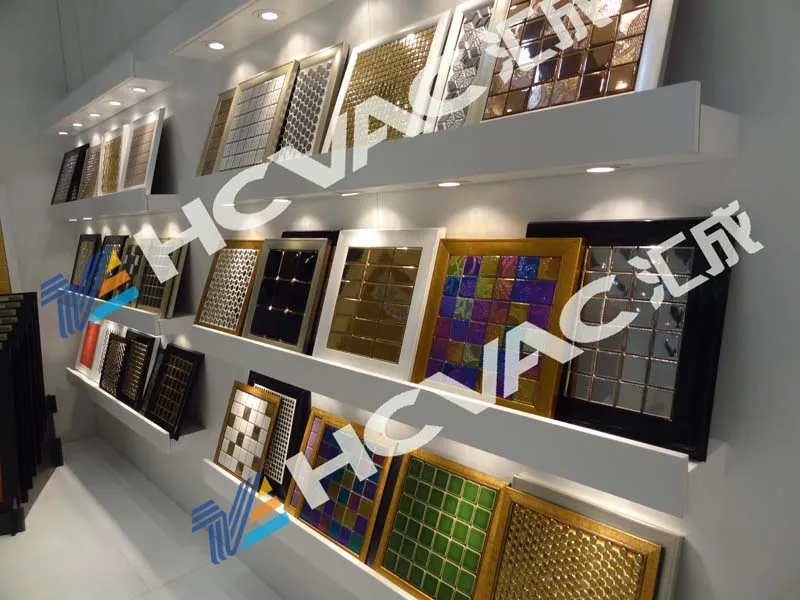

Ceramic Tile Samples

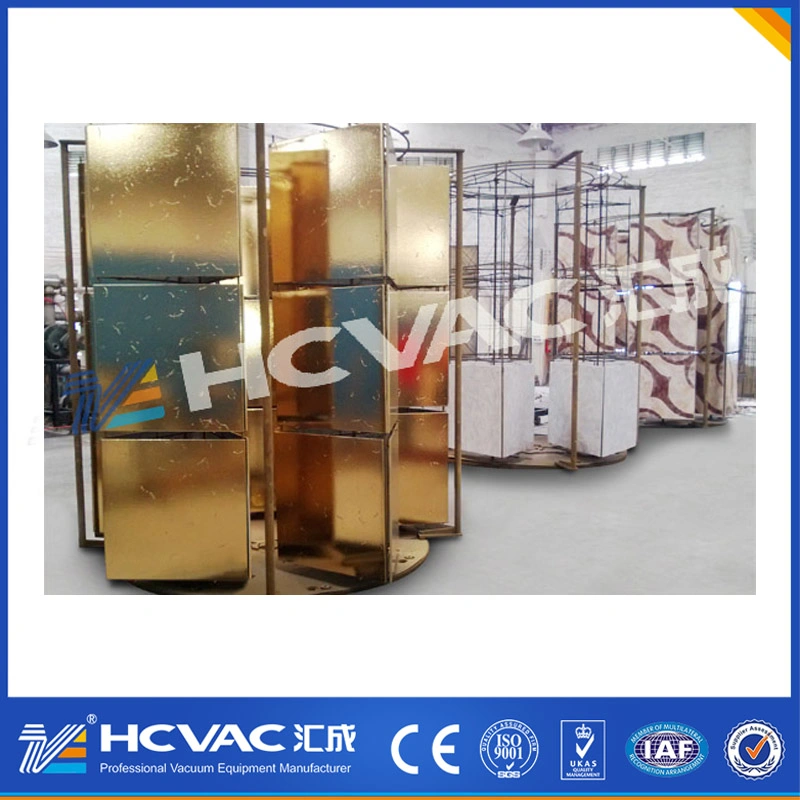

PVD Coating Results

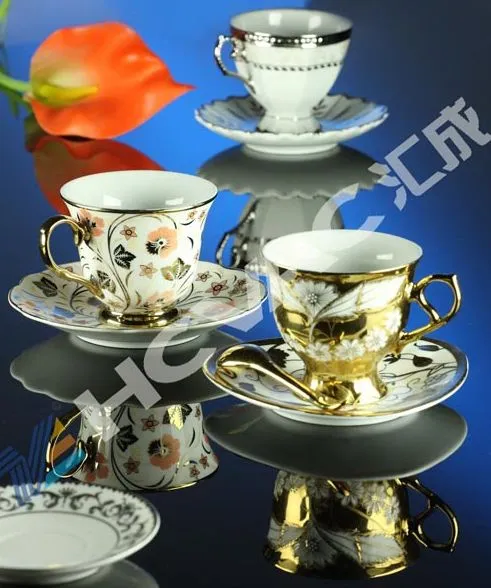

Coated Tableware

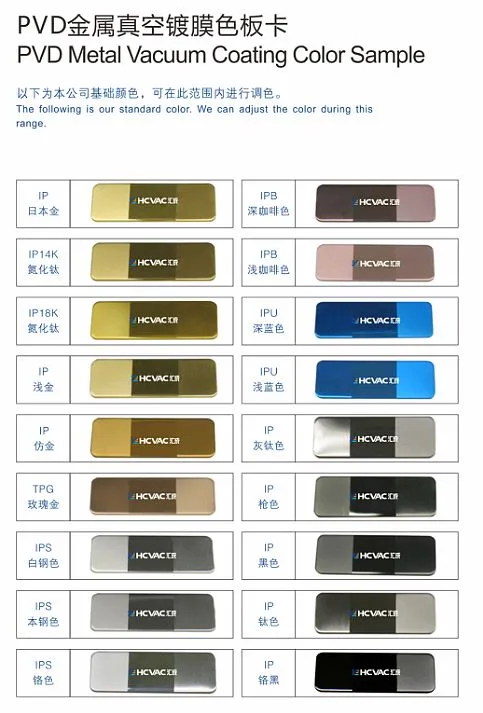

Color Range Sample
Technical Parameters
Model / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Main Configuration 8 multi-arc targets 12 multi-arc targets 14 multi-arc targets 20 multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Vacuum System Molecule pump/Diffusion pump + Roots pump + Mechanical pump (Up to 5.0*10⁻⁵ Pa)
Heating Control Normal to 350°C with PID control and radiation heating
Workpiece Motion Public rotation with frequency control: 0-20 RPM
Control System Manual / Automatic / PLC + HMI Options
Frequently Asked Questions
What materials can be coated using this PVD machine?
The system is designed for ceramic tiles, porcelain, glass, and various metal substrates such as stainless steel.
What colors are achievable with PVD ion deposition?
Common colors include Gold, Rose Gold, Silver, Black, Blue, and Rainbow effects, achieved by using different target materials and gases.
Is the PVD coating process environmentally friendly?
Yes, PVD is a dry, vacuum-based process that is harmless and pollution-free, making it a green alternative to traditional electroplating.
What are the typical applications for this equipment?
It is widely used for decorative coatings on car wheels, sanitary ware, hotel products, ceramic tiles, watches, and ultra-hard coatings for industrial tools.
Can the equipment dimensions be customized?
Absolutely. We can design the vacuum chamber dimensions and configuration according to your specific technical requirements and production volume.
How easy is it to operate the system?
The machine features a user-friendly PLC touch screen interface with options for manual or fully automatic control modes for consistent results.
