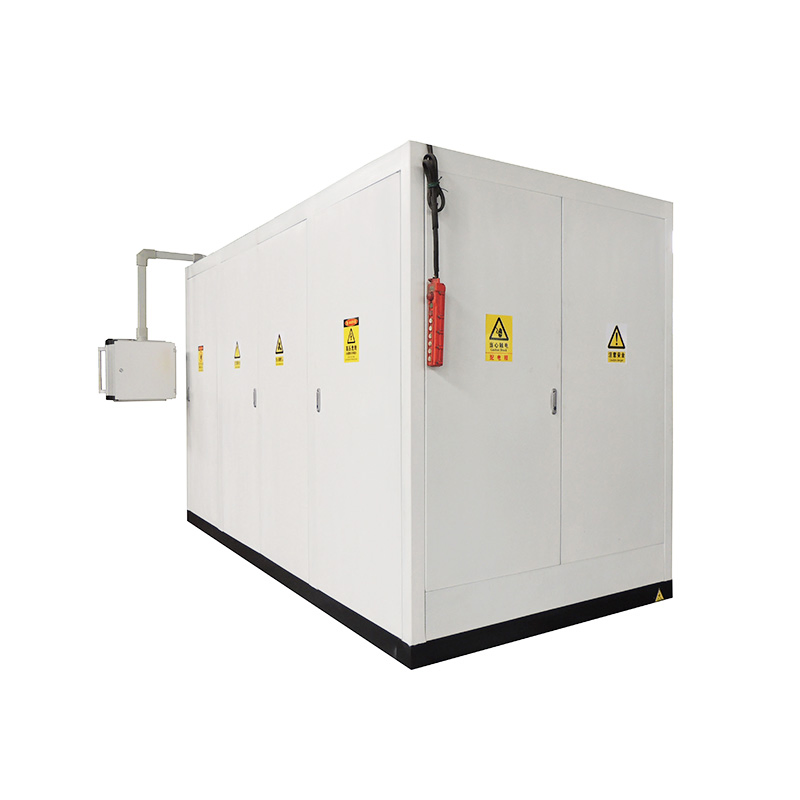

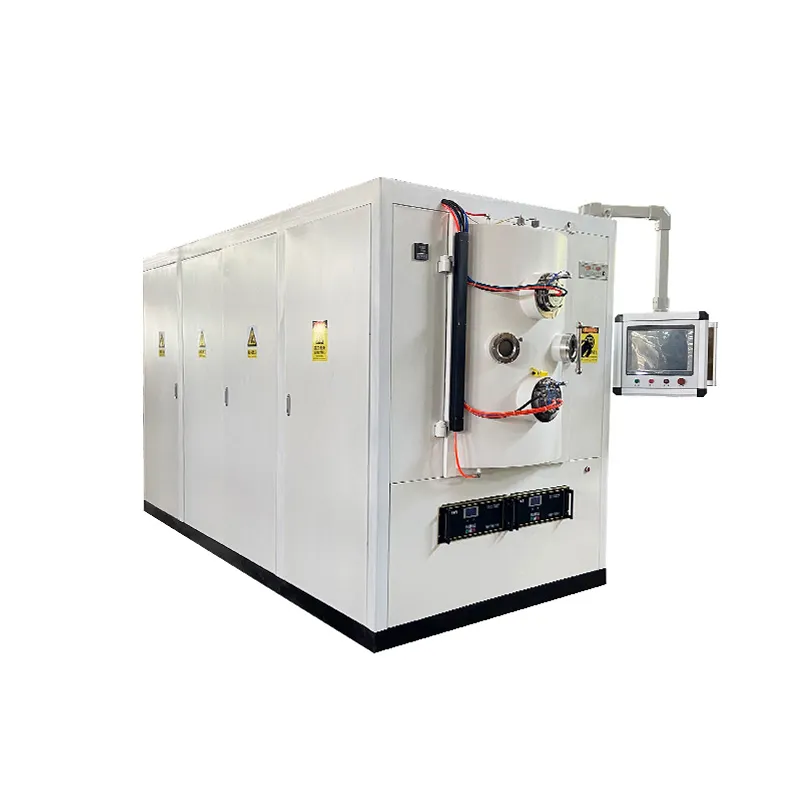

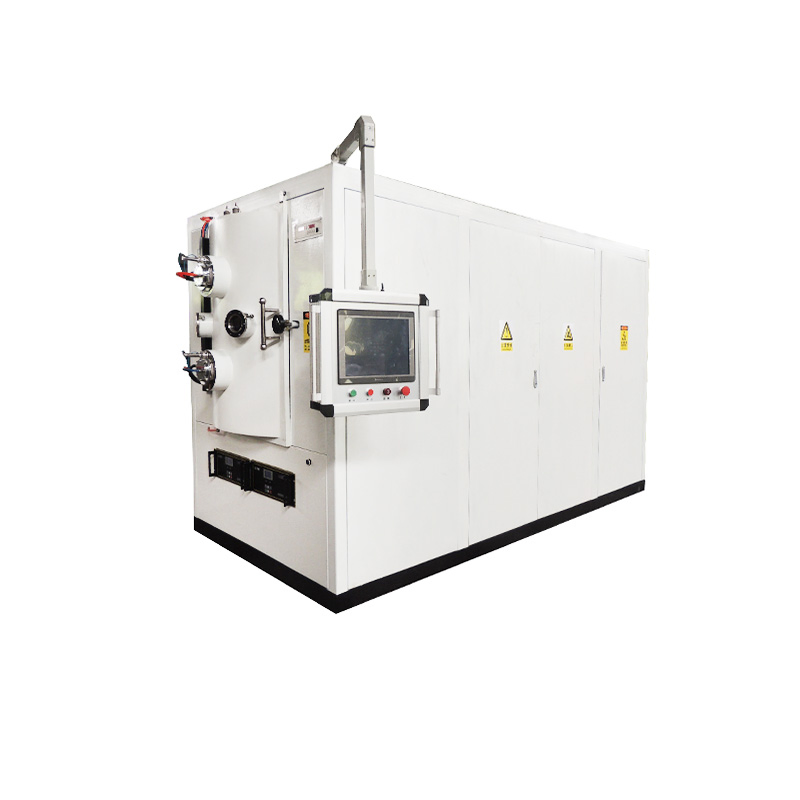

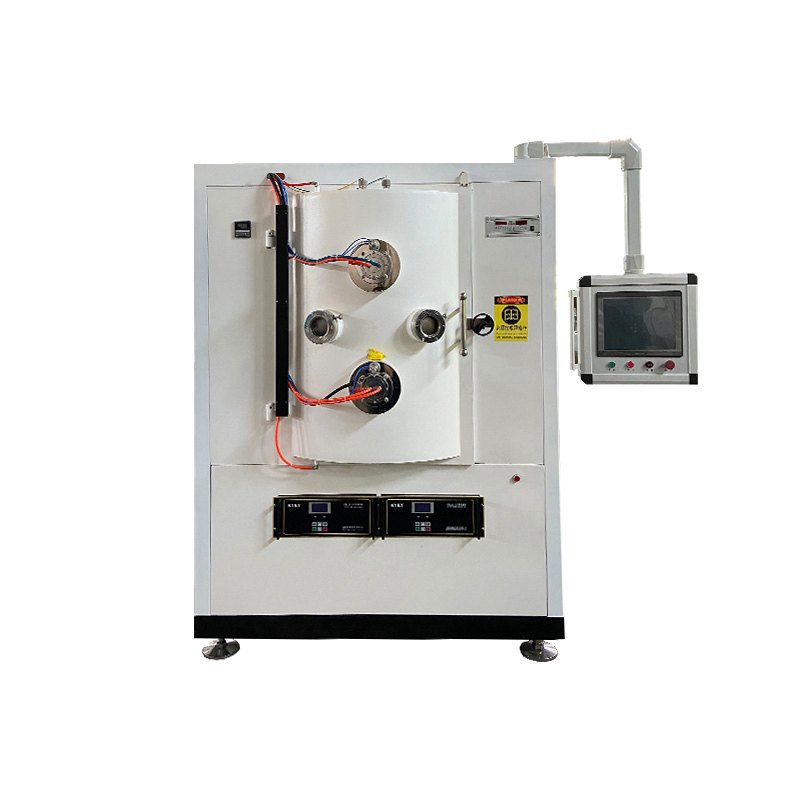

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Customization:	Available
After-sales Service:	Engineers Can Be Sent to The Worksite
Warranty:	1 Year

Basic Specifications

Type

Coating Production Line

Coating

Vacuum Coating

Substrate

Steel

Certification

CE

Key Selling Points

Long Service Life

Equipment Name

Titanium Nitride Coating Equipment

Raw Material

Chrome, Titanium, Silver, etc

Coating Film

Tin Tic Crn Zrn Ticn

Technology

Magnetron Sputtering + Arc Deposition

Capacity

50 Set/Sets Per Year

ARC Series System

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. After coating by this machine, workpieces' hardness, wear resistance, and resistance are significantly improved.

The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies.

System Features

Chamber size: φ 600mm-φ1800mm (Customizable)
3-point vacuum level measuring and 2-point temperature measuring
High power ion source achieving uniformed, large-area ion deposition
Multi-arc sources for different metal and alloy layers
Fully automated auto-deposition control system
Selectable center-driving or planetary substrate dome
High vacuum pumping system (Diffusion or Turbo Molecular pumps)

Technical Specifications

Model	ARC series
Vacuum Chamber	SUS304, φ600mm-1200×600-1200mm (H)
Rotation Speed	10 rpm to 50 rpm (Variable)
Evaporation Source	2 to 16 sets
Ultimate Pressure	5.0×10⁻⁴ Pa or lower
Pump Down Rate	25 minutes (to 5.0×10⁻³ Pa)

Utility Requirements

Layout Dimensions	Approx. 5000mm(W)×6500mm(D)×3500mm(H)
Power	3-phase, 380V, 50/60Hz, 100-180kVA
Cooling Water	140L/min or greater
Gross Weight	Approx. 8500kg

Industry Applications

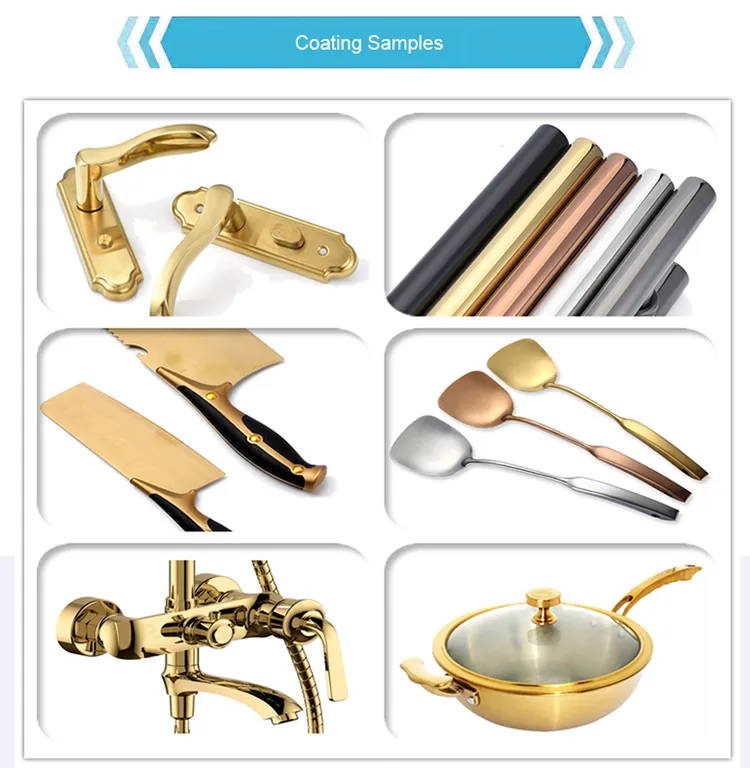

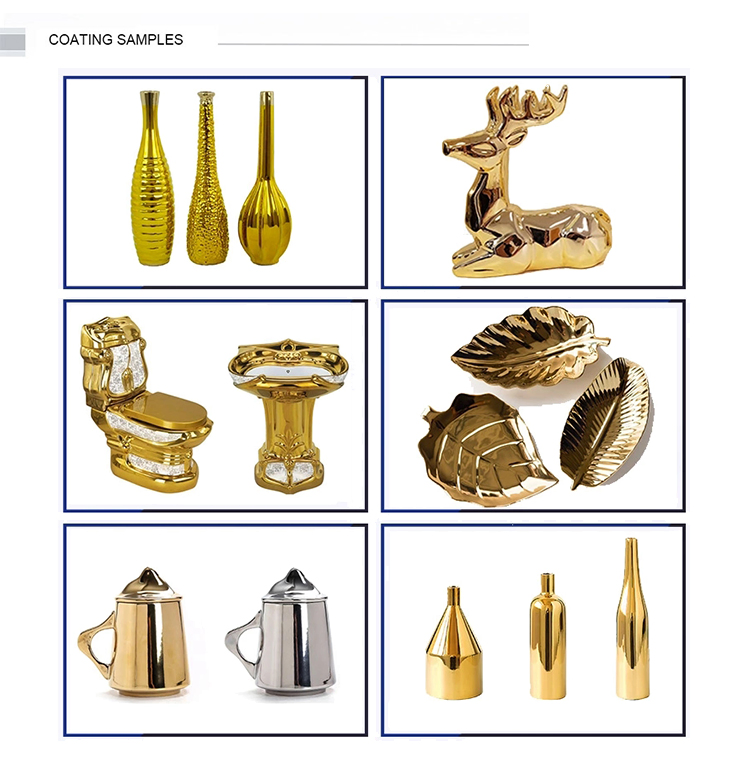

This equipment is widely used in the watch industry (straps, cases), glass ceramics (tableware, crafts), hardware (sanitary ware, locks), architecture (stainless steel plates, railings), and precision mold industries.

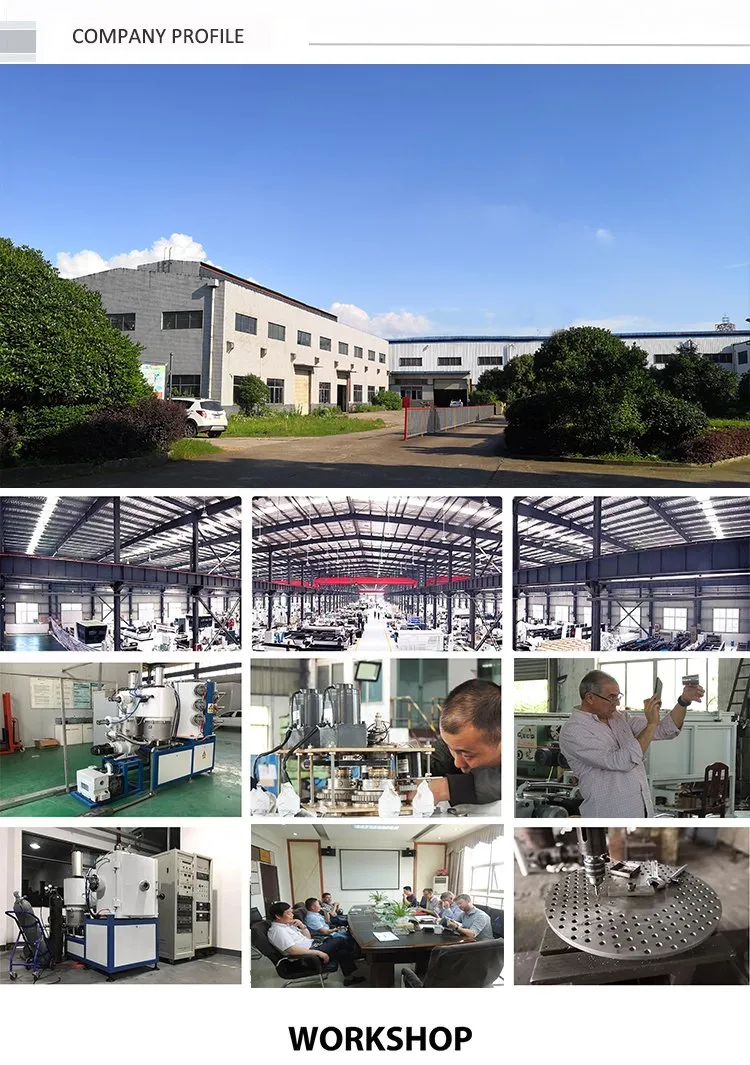

Equipment & Manufacturing

Frequently Asked Questions

What materials can be coated using this PVD machine?

The system is versatile and can coat metal, glass, and ceramic surfaces, including stainless steel, steel tools, and ceramic crafts.

How long does it take to reach the required vacuum level?

The pump-down rate is efficient, reaching 5.0×10⁻³ Pa in approximately 25 minutes.

Can the chamber size be customized for large components?

Yes, the chamber size is customizable from φ 600mm to φ 1800mm to meet specific production requirements.

What are the main benefits of Titanium Nitride (TiN) coating?

It significantly improves the surface hardness, wear resistance, and corrosion resistance of the workpieces while providing an attractive finish.

Is the coating process automated?

Yes, the machine features an auto-deposition control system for a fully automated and consistent coating process.

What industries benefit most from this technology?

Key industries include manufacturing plants, automotive (piston rings, alloy wheels), precision tools (drill bits, cutters), and decorative hardware.
