Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
1 / 5
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
TY-OI801
Material
Titanium
Feature
Disposable
Certification
CE, ISO13485
Group
Adult
Properties
Implant Materials & Artificial Organs
Classification
Class III
Warranty
One Year
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
Color
As Picture
Transport Package
Carton
HS Code
9021100000
Production Capacity
50000 Sets/Year
🔬 Product Introduction

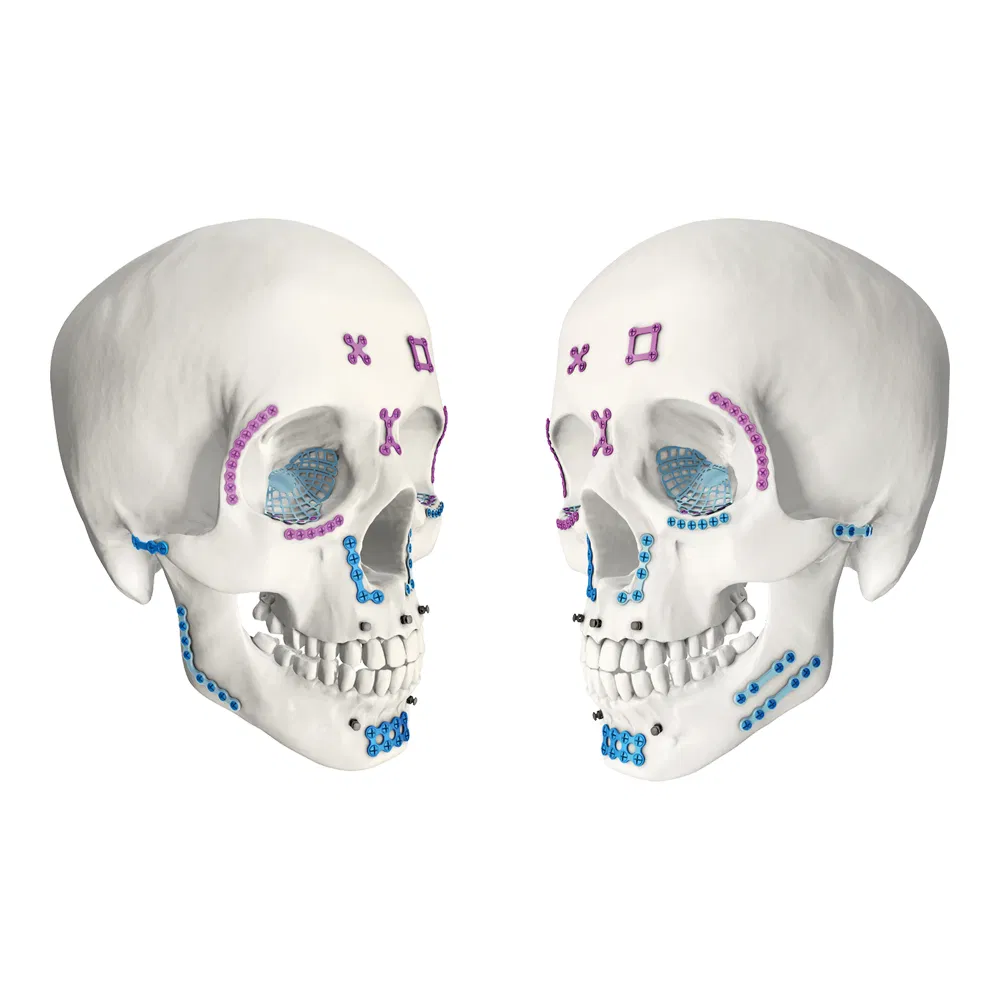

Maxillofacial Plate
Maxillofacial Plate Detail
Main Advantages:
  • Reversible Use: Locking maxillofacial micro and mini plates can be used reversibly.
  • Squeeze Locking Technology: Advanced locking mechanism for stability.
  • Dual Screw Compatibility: One hole selects two kinds of screws (locking and non-locking), allowing free collocation.
  • Premium German ZAPP Titanium: Adopt special customized pure titanium raw material with uniform grain size.
  • Diagnostic Compatibility: Does not affect MRI/CT examinations.
  • Soft Tissue Friendly: Concave design and smooth edges reduce discomfort and stimulation.
⚙️ Matching Accessories

Matching Screws:

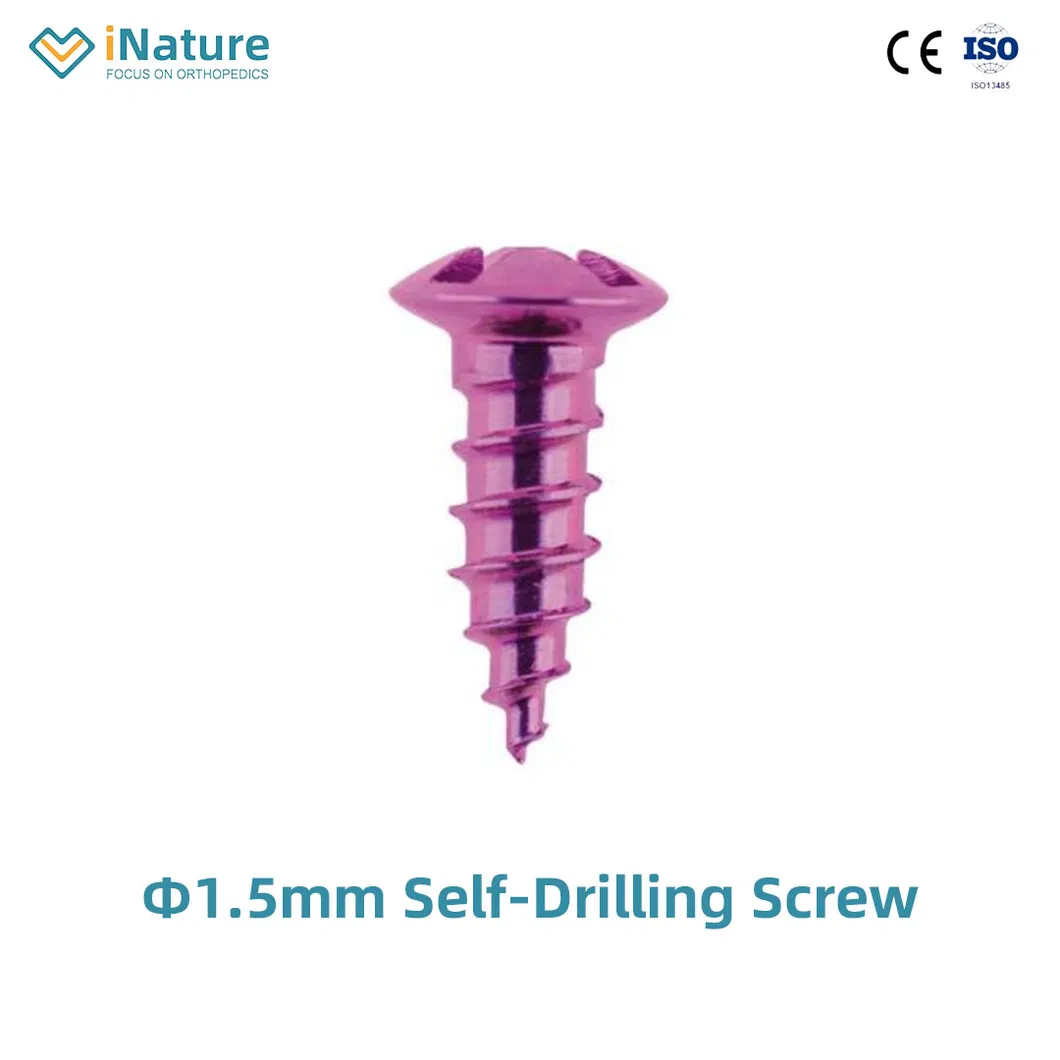

  • φ1.5mm self-drilling screw
  • φ1.5mm self-tapping screw
  • φ1.5mm locking screw

Matching Instruments:

  • Medical drill bit φ1.1*8.5*48mm
  • Cross head screw driver: SW0.5*2.8*95mm
  • Straight quick coupling handle
📊 Model Specifications
Model Name Specification Details
Maxillofacial Micro Locking X-Plate4 holes, 0.6mm, 14mm
Maxillofacial Micro Locking Rectangular Plate4 holes, 0.6mm, 14*14mm
Maxillofacial Micro Locking Straight Bridge Plate4 holes, 0.6mm, 20mm
Maxillofacial Micro Locking Straight Plate6-14 holes, 0.6mm, 24mm-56mm
Maxillofacial Micro Locking Arc Plate6-14 holes, 0.6mm, 24mm-49mm
Maxillofacial Micro Locking 110° L-plate4-5 holes, 0.6mm, 16mm-20mm
Maxillofacial Micro Locking 90° L-plate4 holes, 0.6mm, 16mm
Maxillofacial Micro Locking Y-plate6-7 holes, 0.6mm, 17mm-28mm
Maxillofacial Micro Locking T-plate5-7 holes, 0.6mm, 16mm-24mm
📸 Product Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Detailed Product Diagram
Frequently Asked Questions
What material is used for these maxillofacial plates?
The plates are manufactured using special customized German ZAPP pure titanium, ensuring high biocompatibility and uniform grain size.
Are these implants compatible with MRI and CT scans?
Yes, the titanium material used does not affect MRI or CT examinations, allowing for safe post-operative imaging.
Can I use both locking and non-locking screws with the same plate?
Yes, the design allows one hole to select either locking or non-locking screws, providing flexibility for different clinical needs.
What is the thickness of the micro locking plates?
The standard thickness for these maxillofacial micro locking plates is 0.6mm.
Do the plates require special instruments for installation?
They are designed to be used with matching φ1.1mm medical drill bits and SW0.5mm cross head screw drivers.
How are the products packaged?
The products are available in both sterile and non-sterile packaging options, depending on your requirements.
