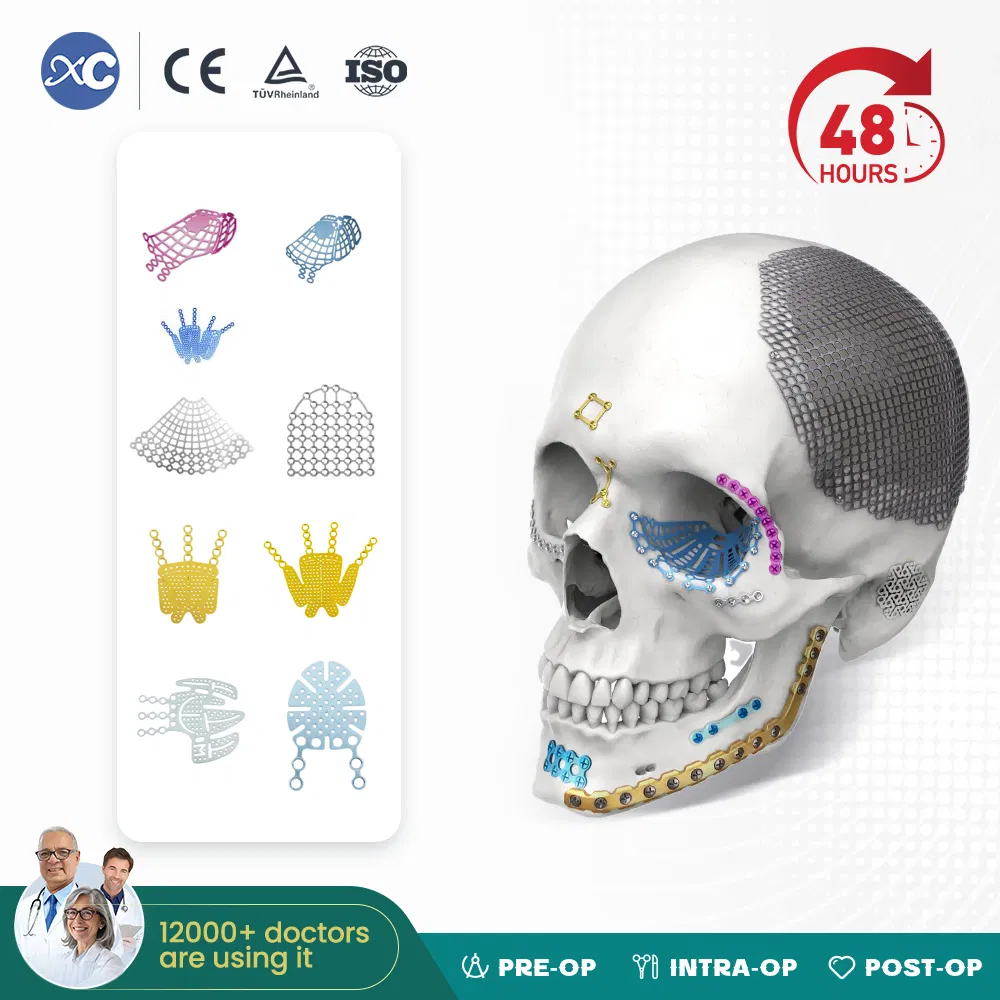

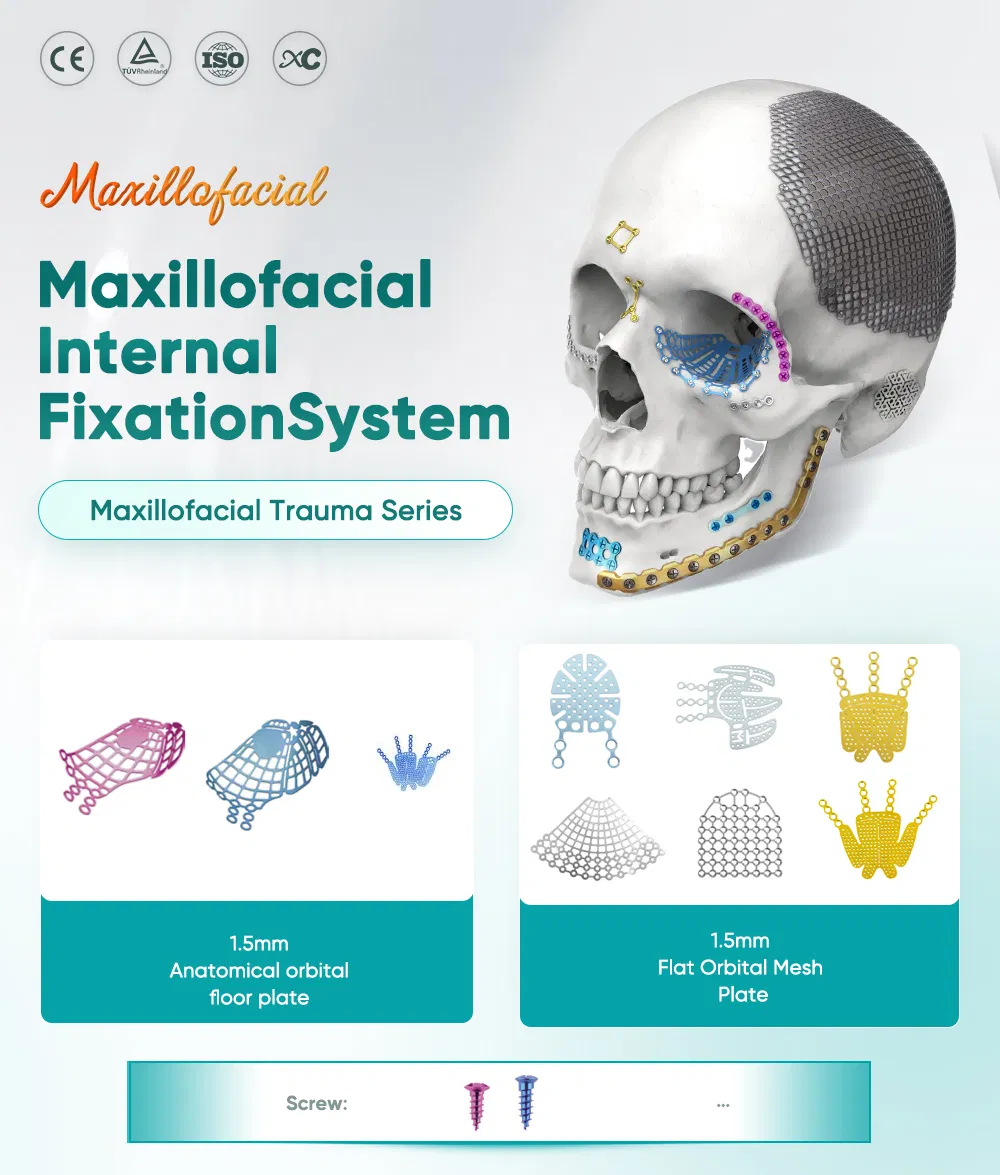

Maxillofacial Anatomical Orbital Floor Orthopedic Implant 1.5mm Series Bone Plate
| 1.5mm Orbital Floor Mesh Specifications | |
|---|---|
| Name | Specification |

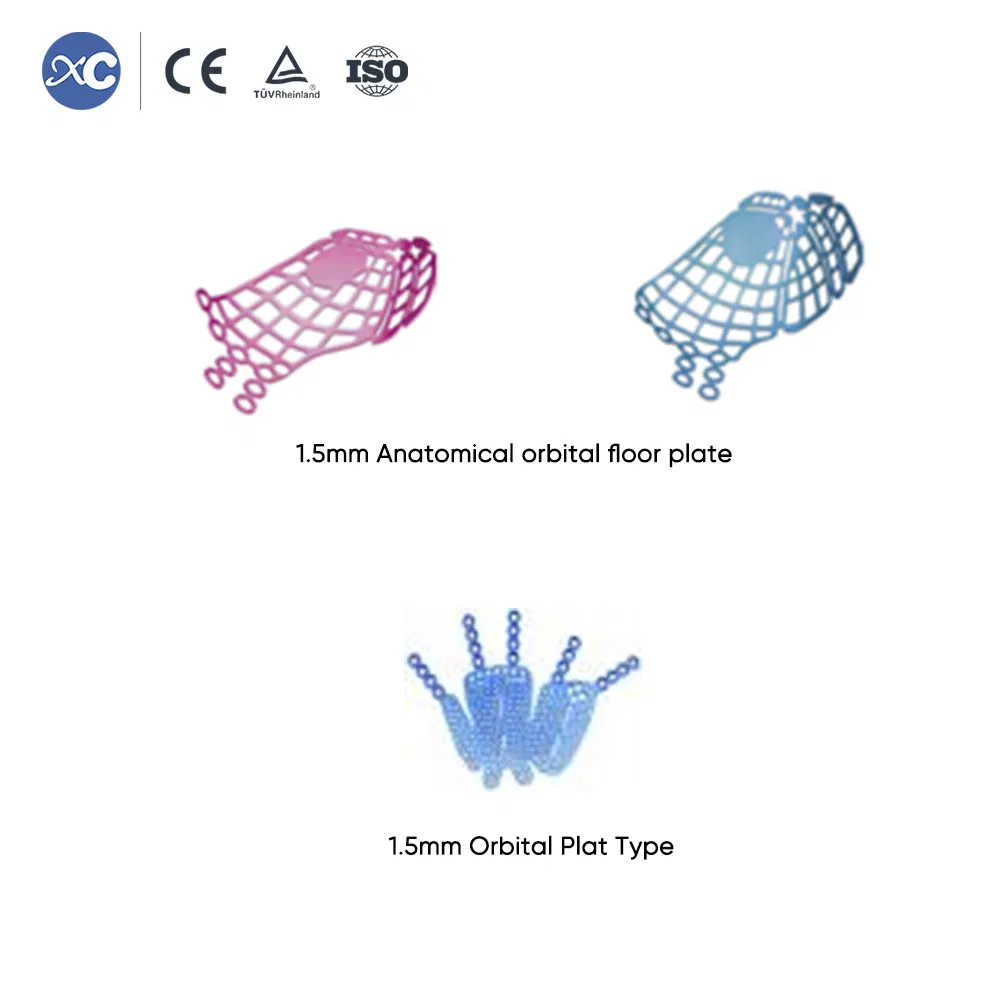

| 1.5mm Anatomical orbital floor plate | 0.4mm, 30*30mm, Left |
| 0.4mm, 30*30mm, Right | |
| 0.5mm, 30*30mm, Left | |
| 0.5mm, 30*30mm, Right | |
| 1.5mm Anatomical orbital floor plate | 0.4mm, 34*36mm, Left |
| 0.4mm, 34*36mm, Right | |
| 0.5mm, 34*36mm, Left | |
| 0.5mm, 34*36mm, Right | |
| 1.5mm Orbital Plate,Type (Thickness: 0.6mm) | L |
| R | |

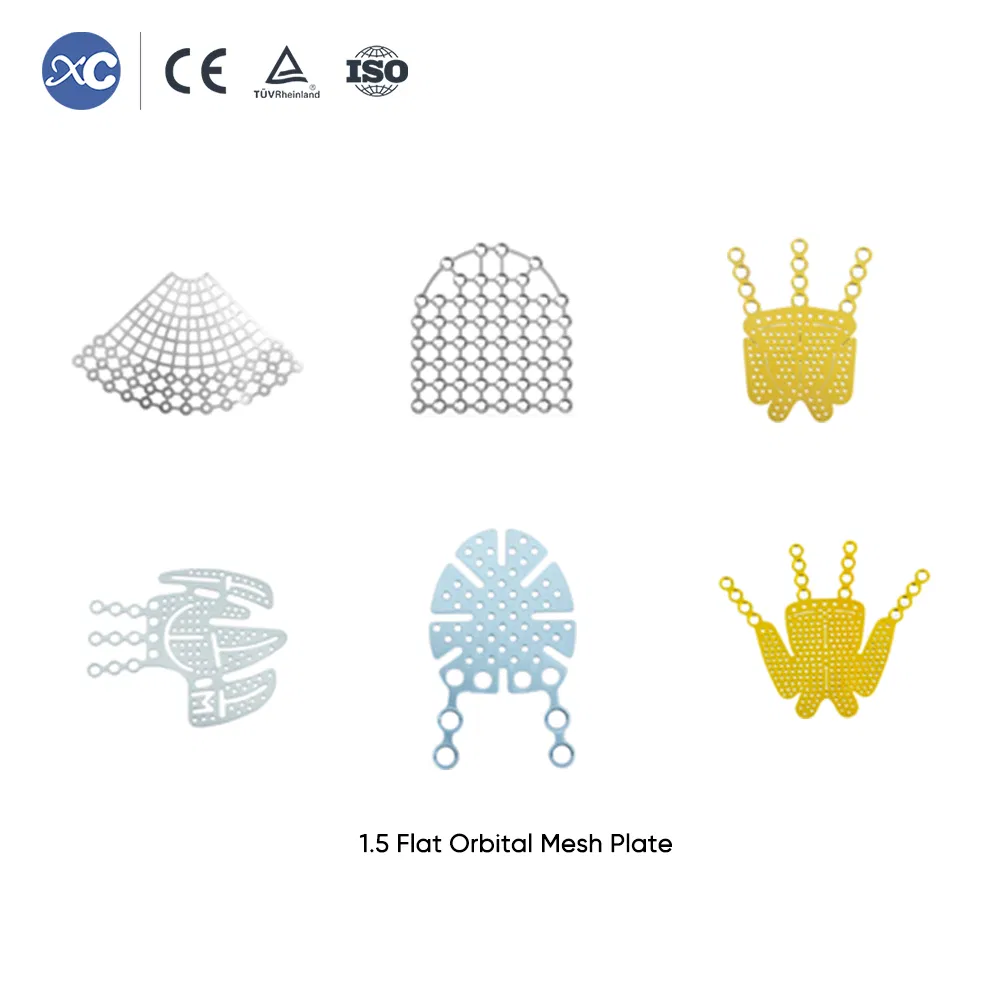

| 1.5 Flat Orbital Mesh Plate (Sector shape) | 0.4mm, 46*46mm |
| 1.5 Flat Orbital Mesh Plate (Window shape) | 0.4mm, 37*35mm |
| 1.5 Flat Orbital Mesh Plate I | 0.4mm, 30*30mm |
| 1.5 Flat Orbital Mesh Plate II | 0.4mm, 36*38mm |
| 1.5 Flat Orbital Mesh Plate III | 0.3mm, 46*39mm |
| 1.5 Flat Orbital Mesh Plate (Egg shape) | 0.4mm, 20*20mm |

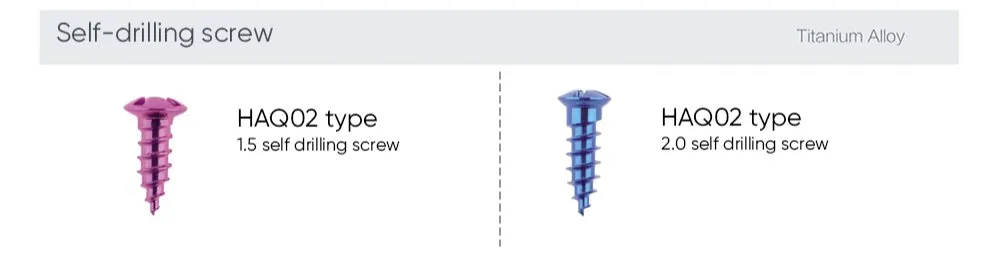

| 1.5 self drilling screw | φ1.5*4mm |
| φ1.5*5mm | |
| φ1.5*6mm | |
| 2.0 self drilling screw | Φ2.0*4.5mm |
| Φ2.0*5mm | |
| Φ2.0*5.5mm | |
Based on the anatomy of the orbital floor and medial wall, effectively avoiding critical structures such as the optic foramen.
Leaf-shaped design minimizes intraoperative bending, restores orbital continuity, saves operative time, and reduces surgical trauma and complications.
Reinforced posterior area of the orbital floor mesh stabilizes repositioned tissues, restores orbital volume and eye mobility, and improves enophthalmos and diplopia.

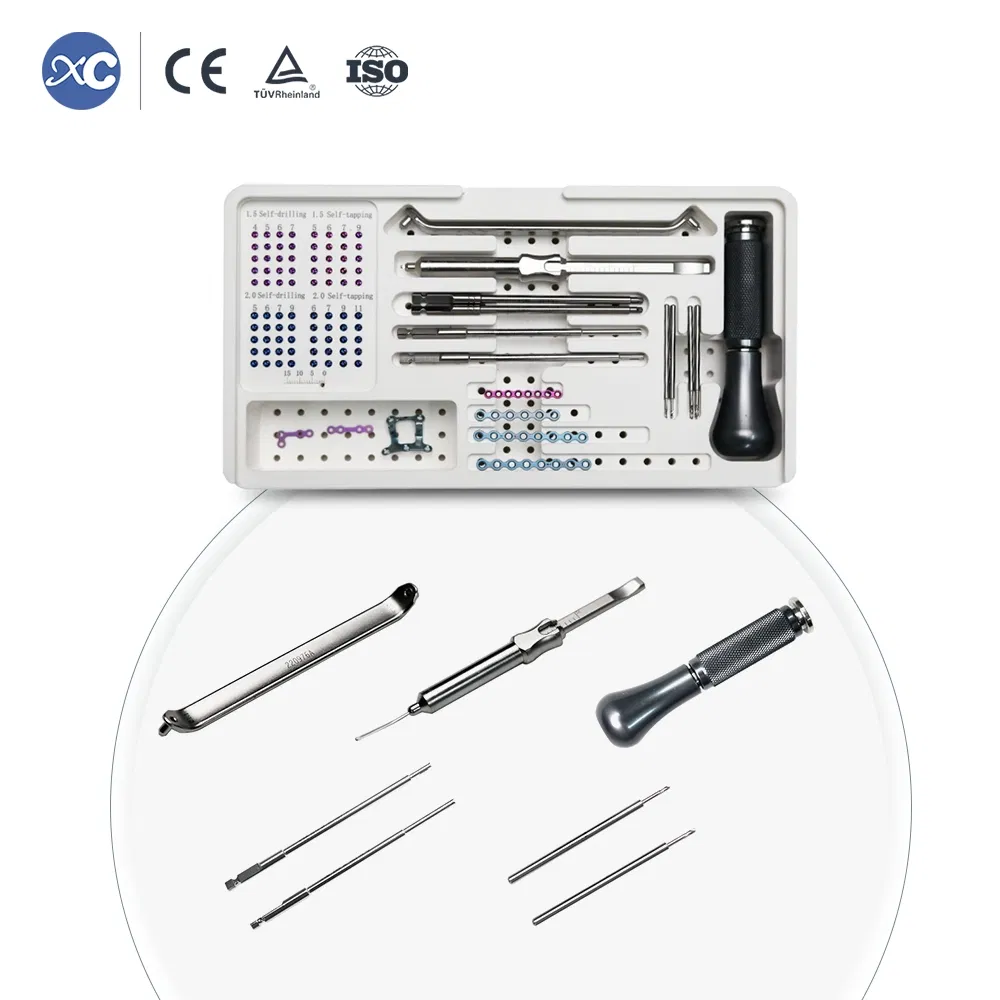

Match surgical instrument set: 1.5/2.0mm Maxillofacial Plate Instrument Set.

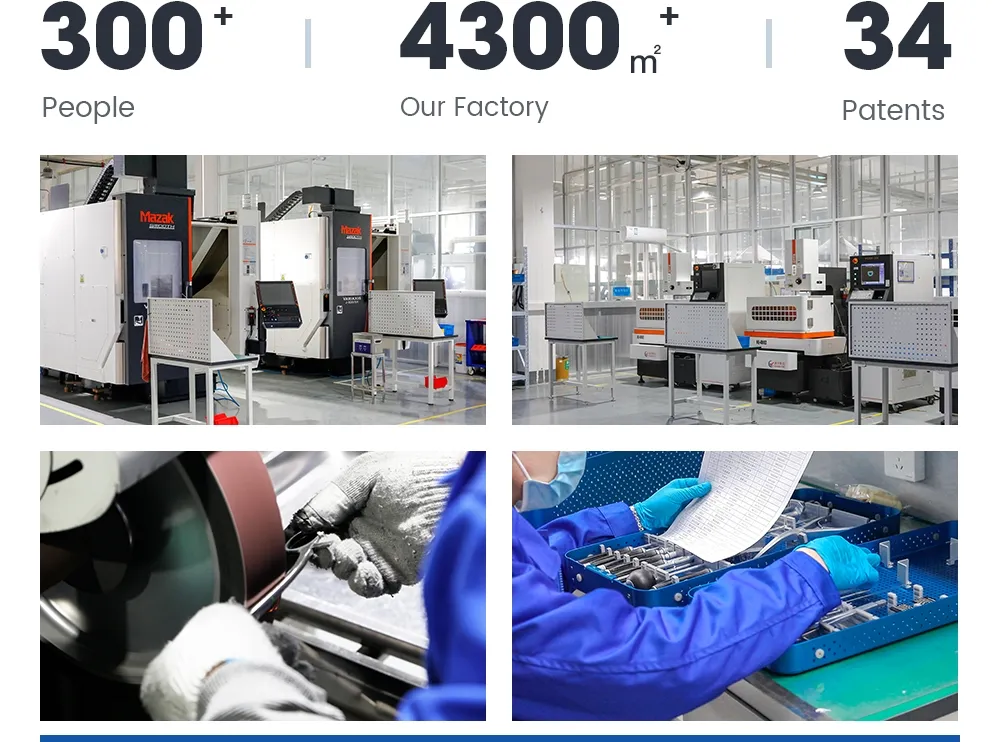

Our team can help you choose the full range of orthopedic implants and instruments. As a professional manufacturer, we have our own production lines and warehouses. After 15 years of research and development, now we have 6 main series of orthopedic products, such as spinal system, interlocking nail system, locking plate system, basic instruments system and medical power tool system. We also provide veterinary orthopedic products.
