Product Description

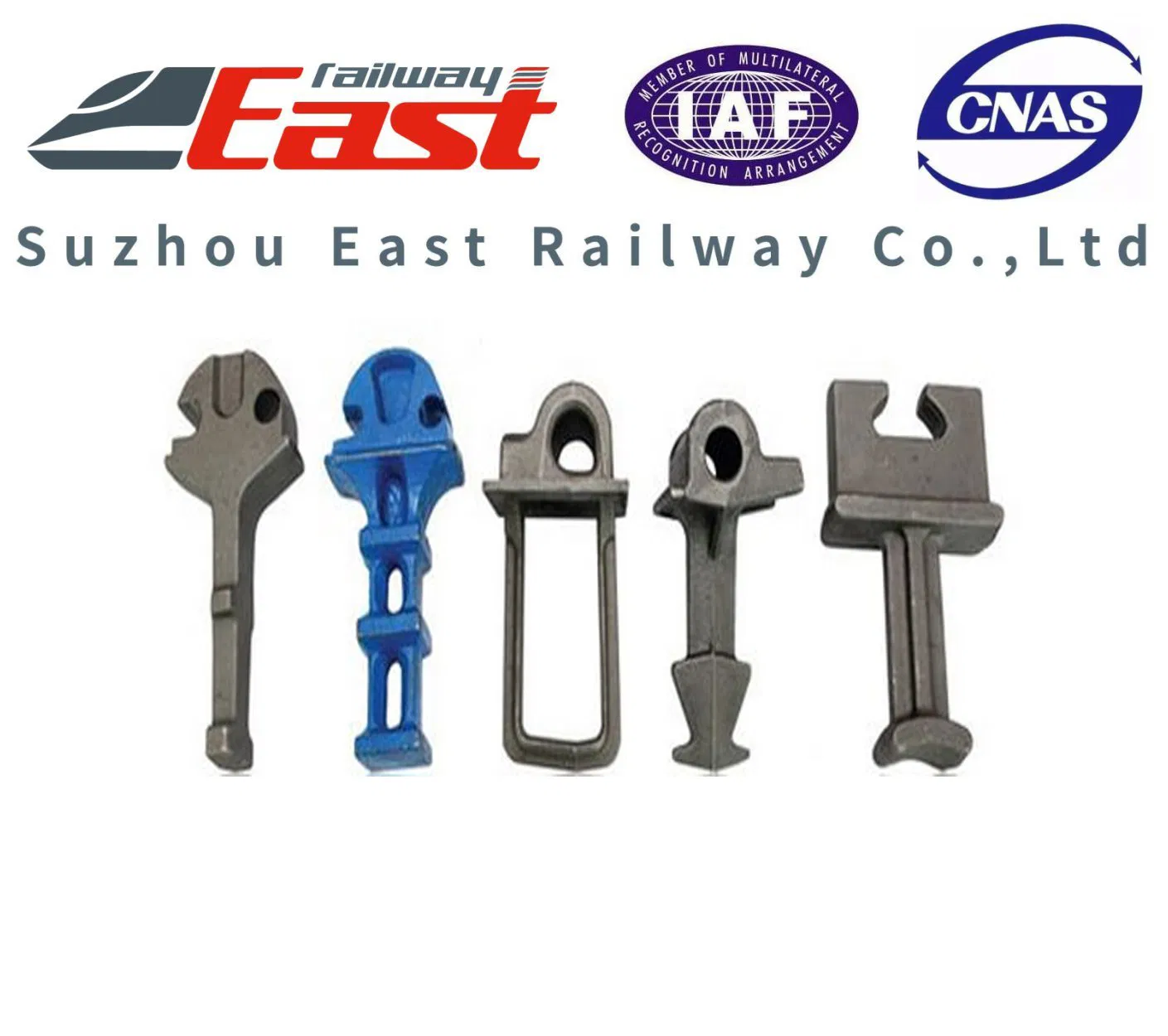

A rail shoulder is a pre-inserted item in concrete sleepers, available in single or twin stem types, used to fix elastic rail clips (mainly e-clips) within the fastening system. We produce two primary types: cast-in shoulders and weld-on shoulders.
Casting Rail Shoulders
Made from cast iron, these are pre-embedded in concrete sleepers. Materials include M.C.I. (malleable iron) and S.G.C.I. (spheroid graphite iron). Other available materials include QT600-3, QT700-2, ZG25, ZG35, and ZG45.
Standards: GB/T 1348, NF EN 1563, ISO1038, DIN 1693, JIS G5502, KS D 4302, GOST 7293.
Weld-on & Special Shoulders
Weld-on shoulders are manufactured via hot forging. They are ideal for locations where standard sleepers cannot be used, allowing shoulders to be welded onto flat steel base plates (AREMA standard). Special shoulders are also produced via hot forging for use with rail clip bolts and low/mid carbon steel clips.
Freight Wagon Components Overview
Freight wagons require high-quality spare parts for long-term operation. We provide a comprehensive range of components for various wagon modules.
| Module |
Parts Included |
| Bogie | Side frame, Bolster, Center plate, Wedge, Adapter, Stopper key, Wearing plate, Fastener |
| Air Brake System | Various braking components |
| Draft Gear System | Coupler, Knuckle, Yoke, Draft gear, Draft key, Striker, Control rod |
| Car Body & Accessories | Standard parts and customized fittings |

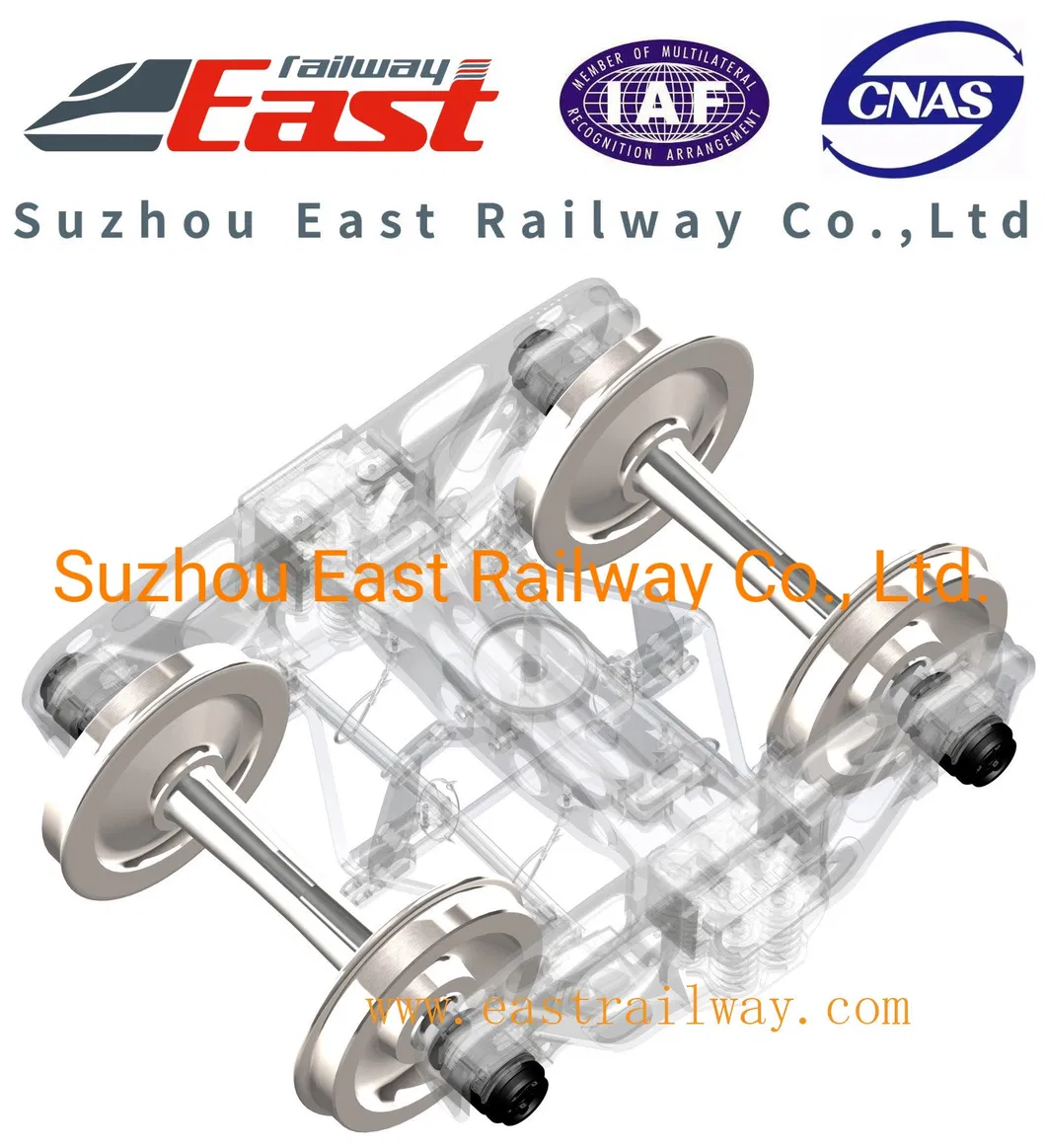

Technical Wheel Set Specifications

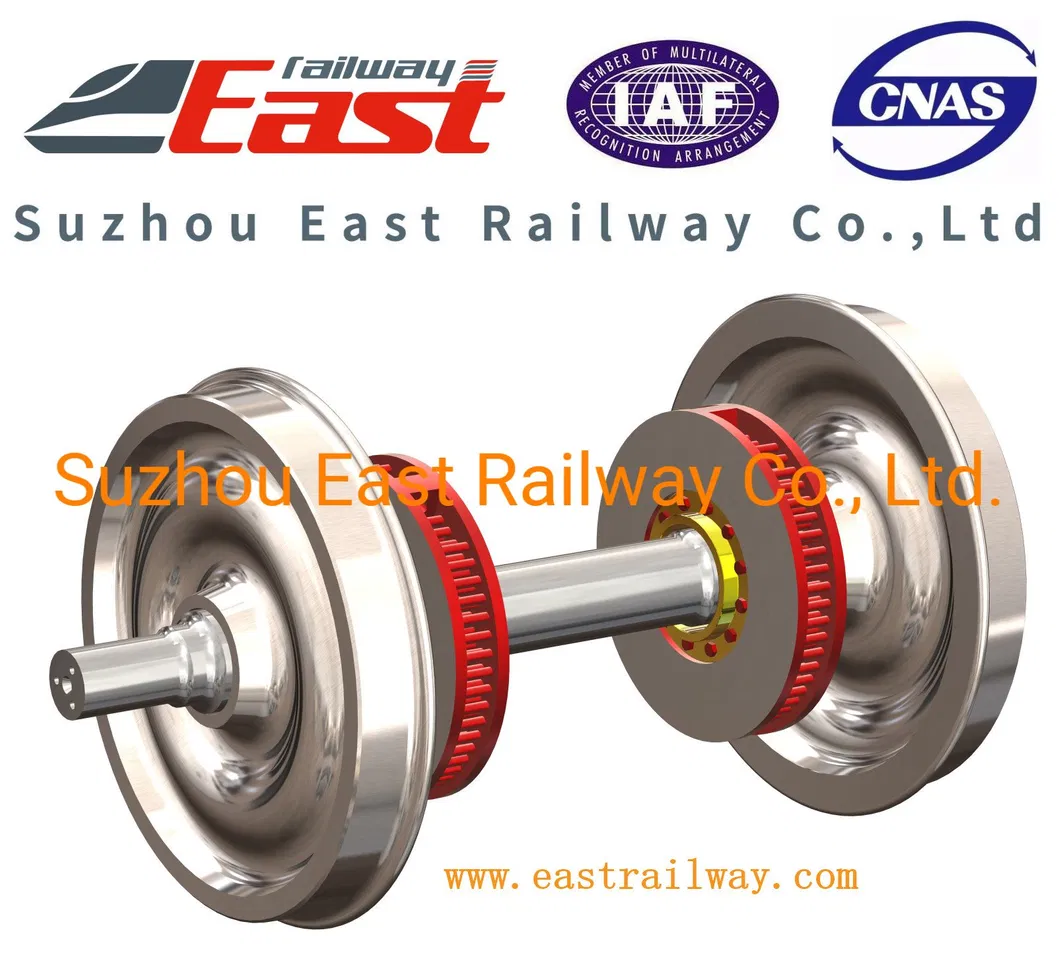

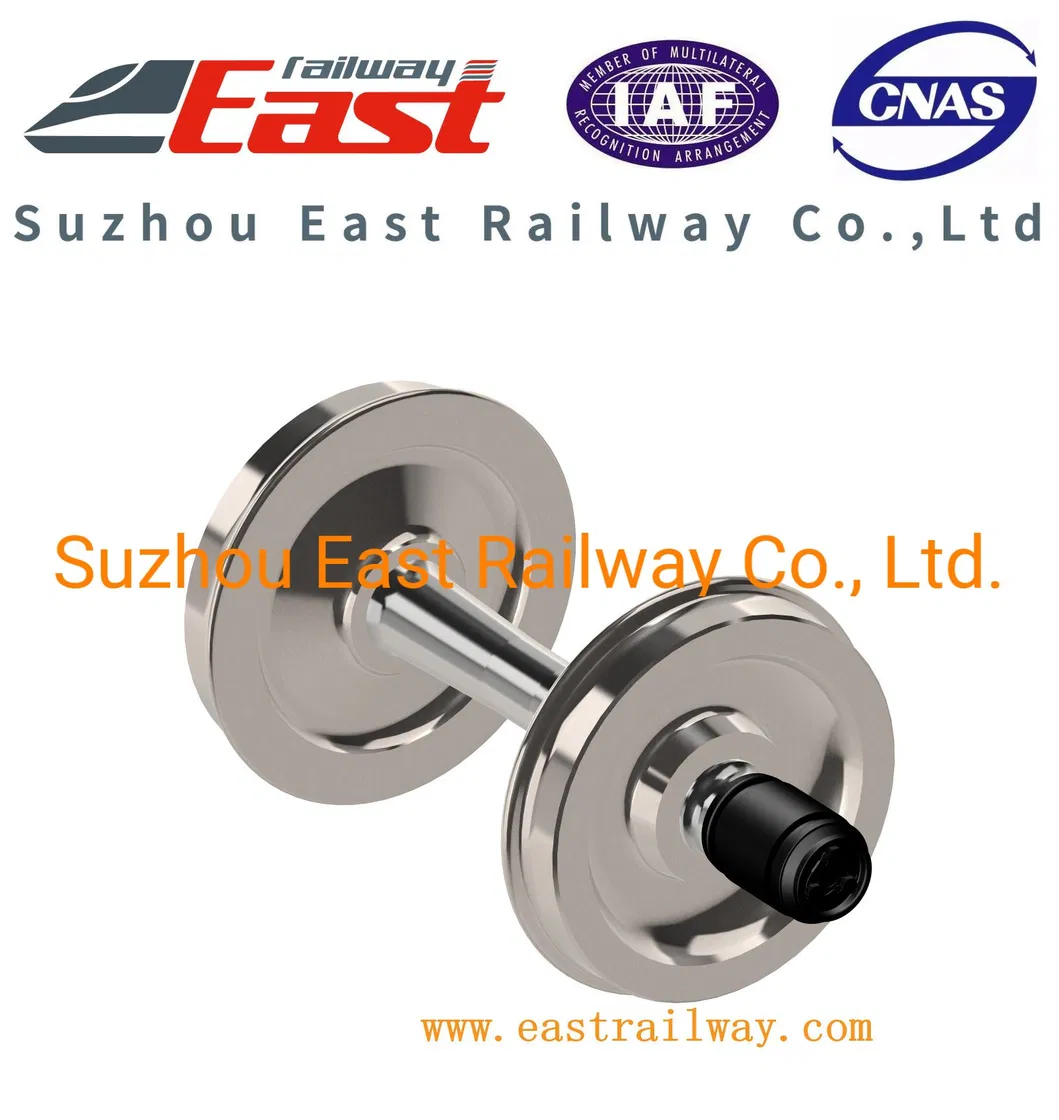

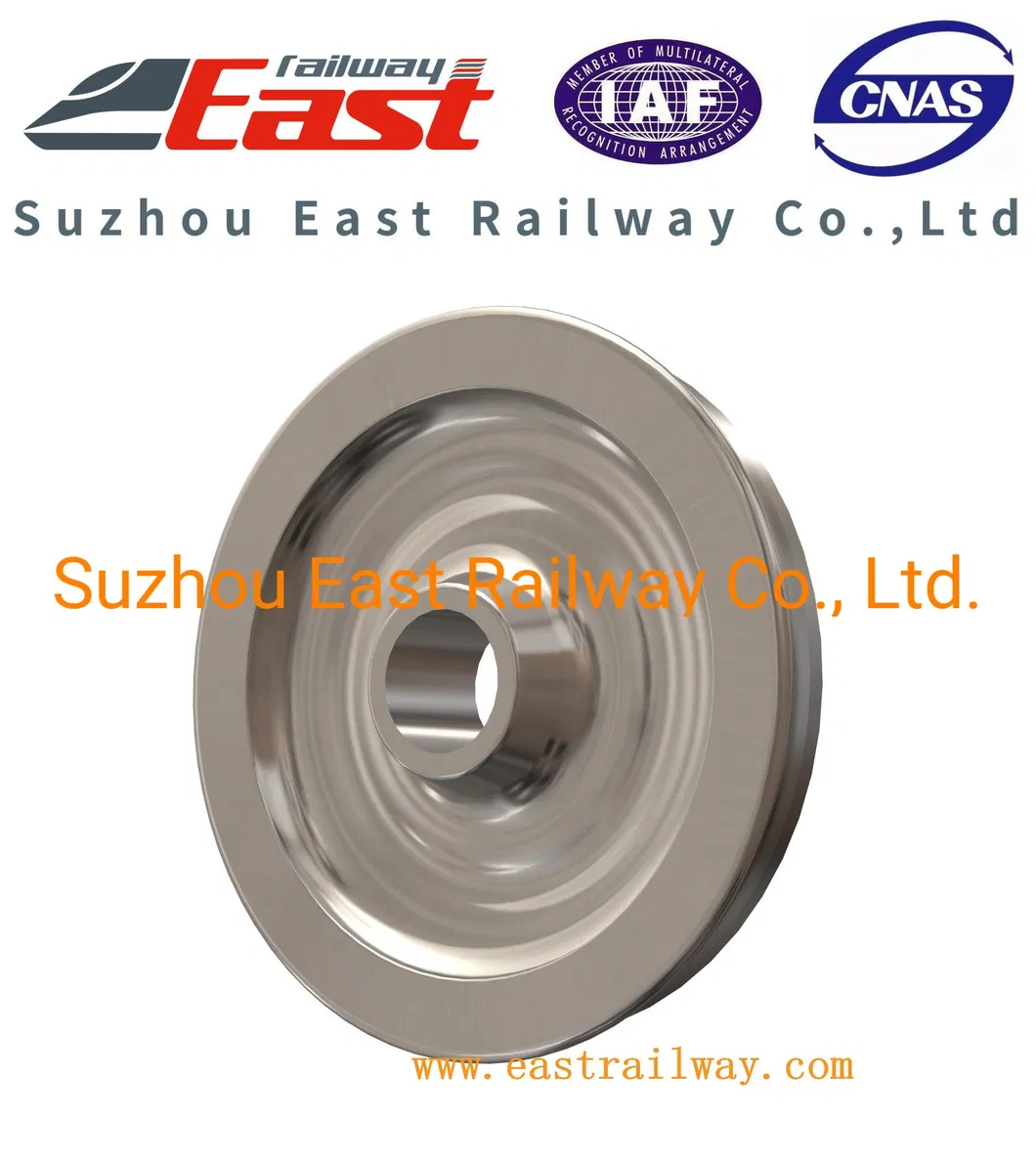

The wheel set is a critical component of the Railway Bogie. A standard set contains two wheels, one axle, and two bearings. Depending on application, it may include gears, brake discs, and axle boxes.
- TB/T 1718: Railway vehicle wheelset installation
- UIC 813: Technical specification for tractive and trailing stock
- BS 5892-6: Specification for traction wheelsets
- EN 13260: Railway applications product requirements
- JIS E4504: Quality requirements for rolling stock
Frequently Asked Questions
Q1: What are the two main types of rail shoulders available?
We provide Casting Rail Shoulders (pre-embedded in concrete) and Weld-on Shoulders (welded to steel base plates).
Q2: Which materials are used for Casting Rail Shoulders?
Common materials include Malleable Iron (M.C.I.), Spheroid Graphite Iron (S.G.C.I.), and grades like QT500, QT600, and ZG series.
Q3: What international standards do your products follow?
Our products comply with BS EN 1563, UIC 813, DIN 1693, and AREMA standards, among others.
Q4: Can weld-on shoulders be used with Pandrol style clips?
Yes, weld-on shoulders are applicable for Pandrol style clips ranging from 30lbs to 113lbs.
Q5: What components are included in a railway wheel set?
A standard wheel set includes two wheels, one axle, and two bearings, with optional gears or brake discs based on requirements.
Q6: What is the production capacity for these railway components?
The production capacity is approximately 500,000 pieces per year for rail shoulders.
