Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
1 / 5
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant
Suture Anchor for Shoulder Arthroscopy Implant

Suture Anchor for Shoulder Arthroscopy Implant

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
WZ-MDT
Feature
Implant
Certification
CE, ISO13485
Color
Silver and Orange
Usage
Orthopedic Surgery
Warranty
3 Years
Sterile
Eo Sterile
Function
Connect The Soft Tissue and Bone
🔍 Product Description
Suture Anchor System consists of anchor, nonabsorbable suture and inserter. Anchor is made of Ti6Al4V alloy, which meets the requirement of ISO5832-3:2016. Suture is made of ultra high molecular weight polyethylene material without coating, it is woven from several UHMWPE yarn, which meets the requirement of ASTM F2848-17. Blue suture is from white ultra high molecular weight polyethylene, dyed with blue color material, code of blue material is 73.1015, which listed and approved by FDA. Part of inserter contacting human body is made of stainless steel conforming ASTM F899-12b. Handle of inserter will not contact human body, and it is made of polycarbonate and ABS material.

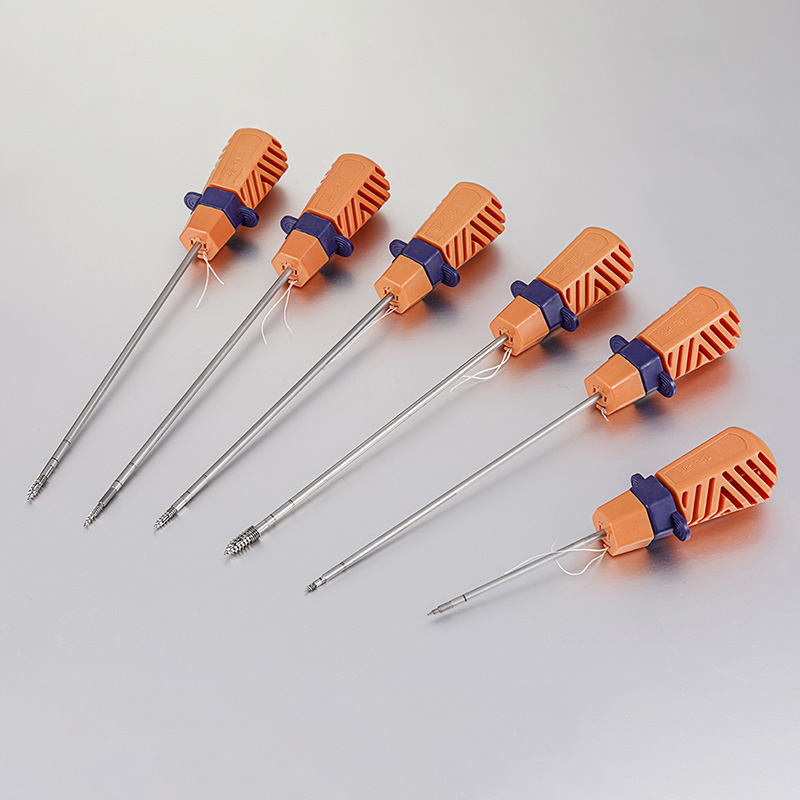

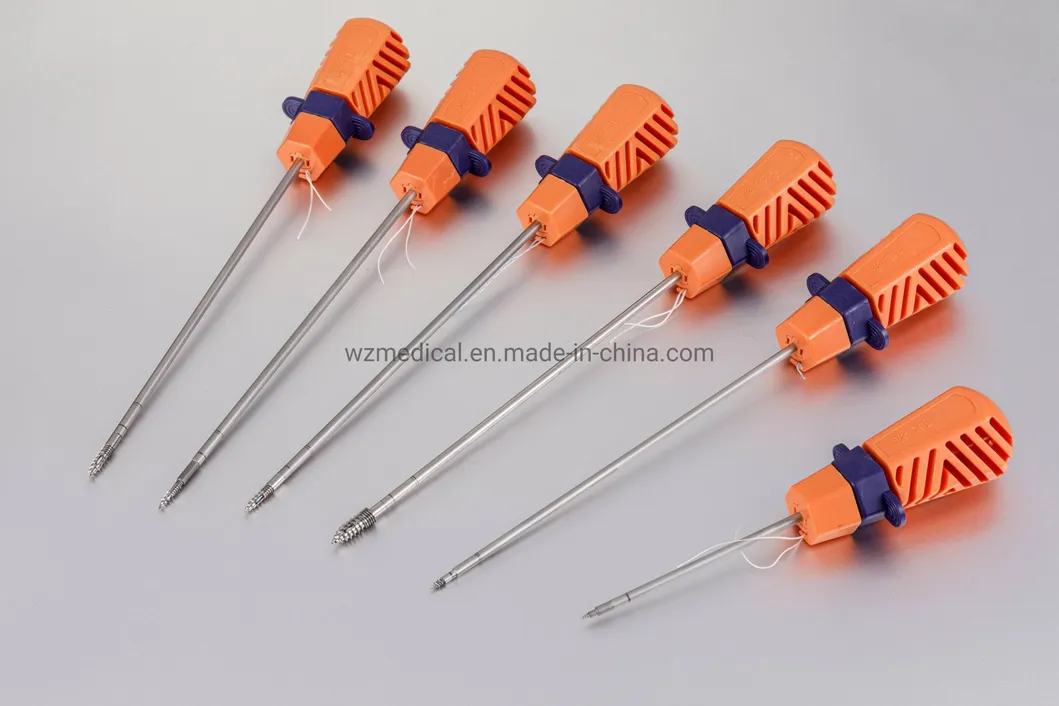

Suture Anchor System Overview

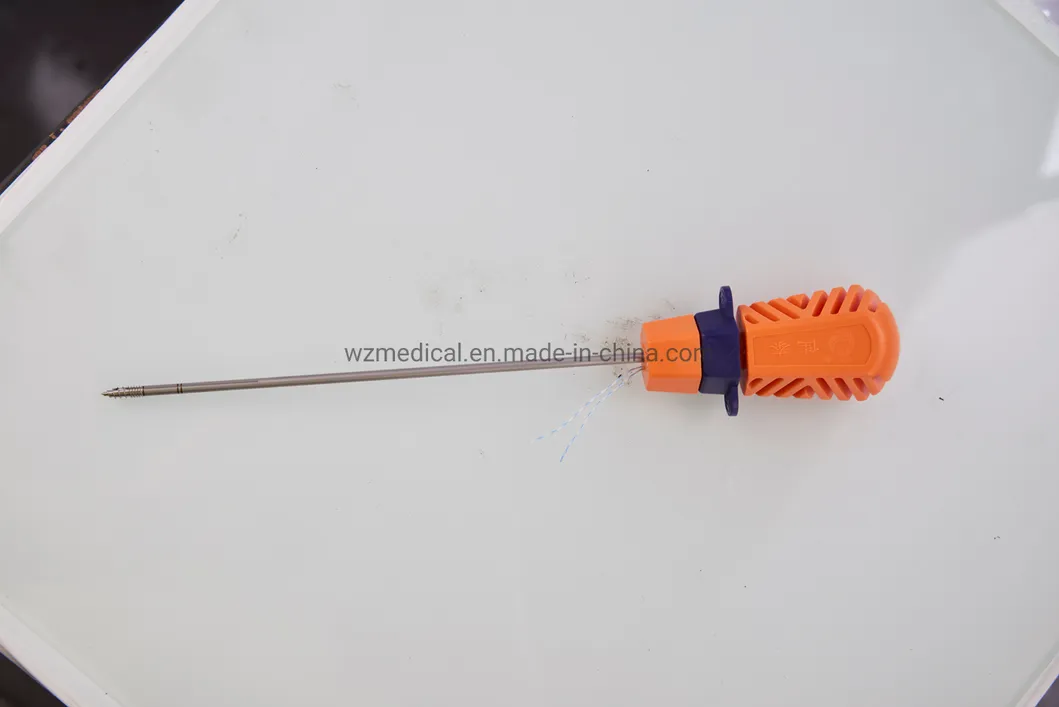

Suture Anchor Detail

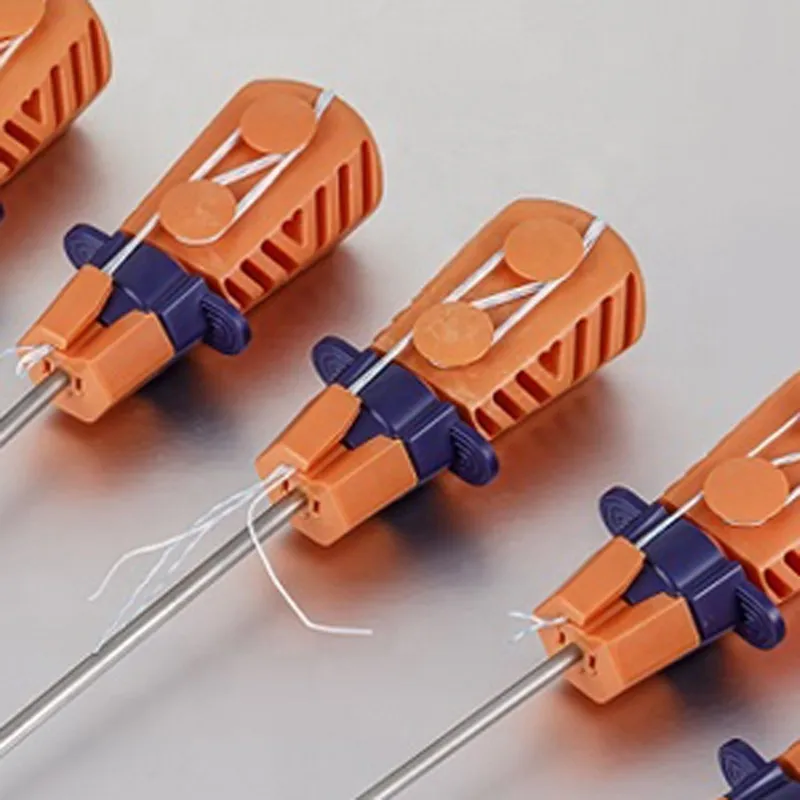

Suture Anchor Components

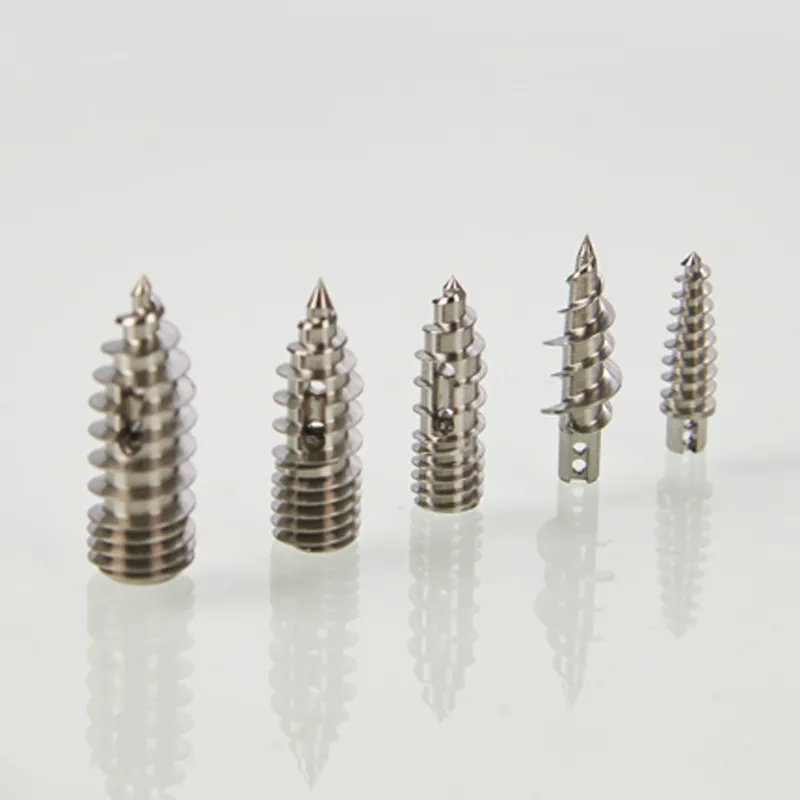

Suture Anchor Application

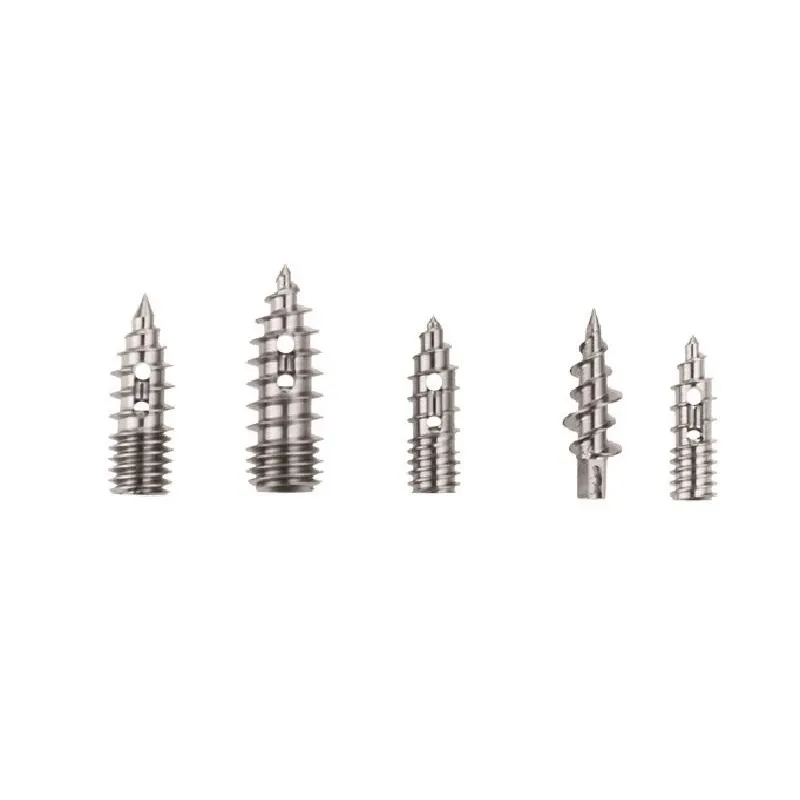

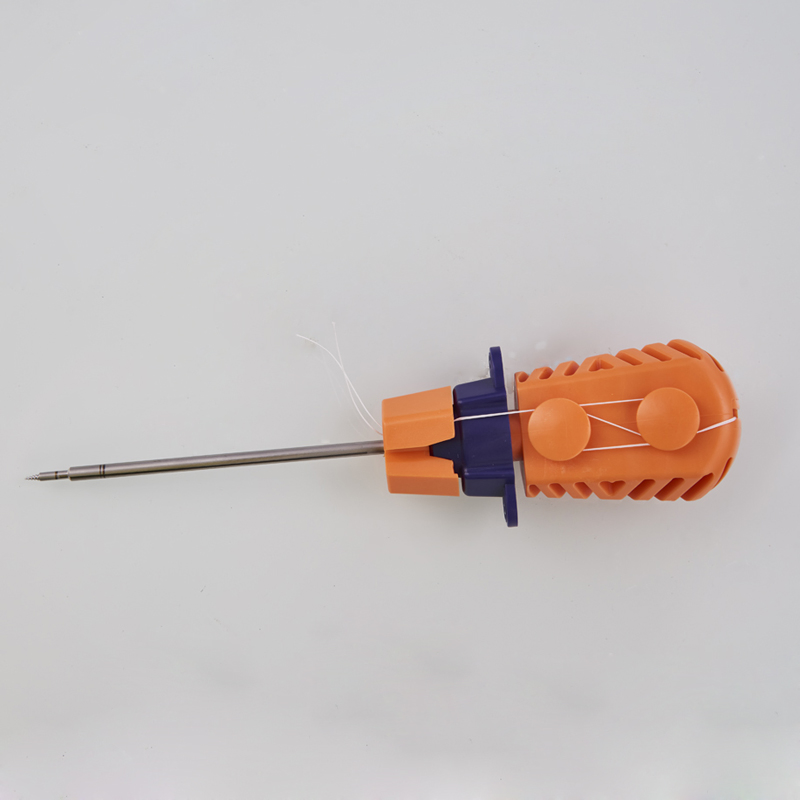

Suture Anchor Inserter

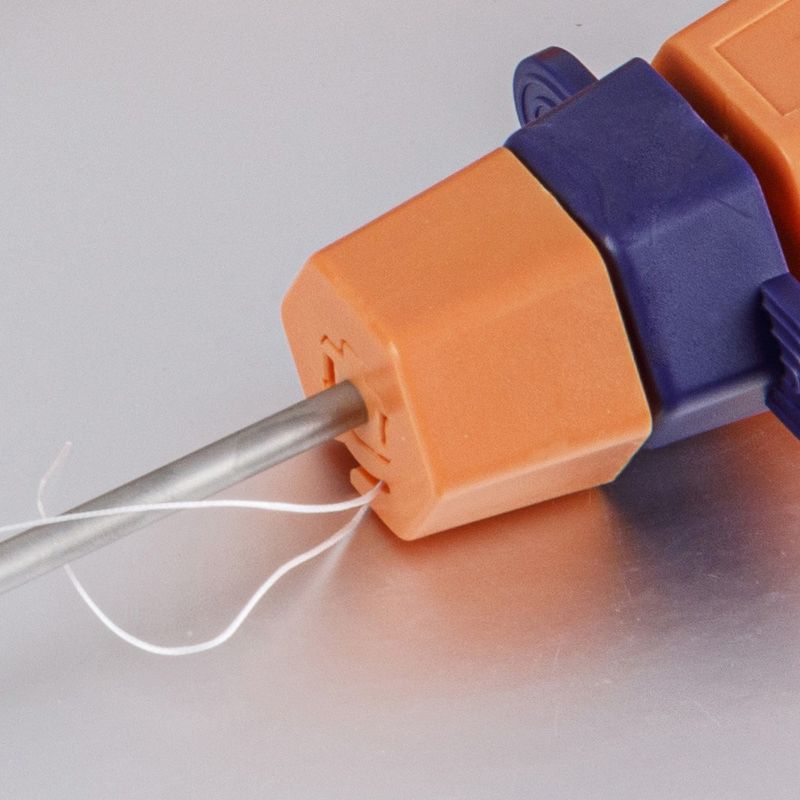

Suture Anchor Close-up
📦 Packaging & Shipping

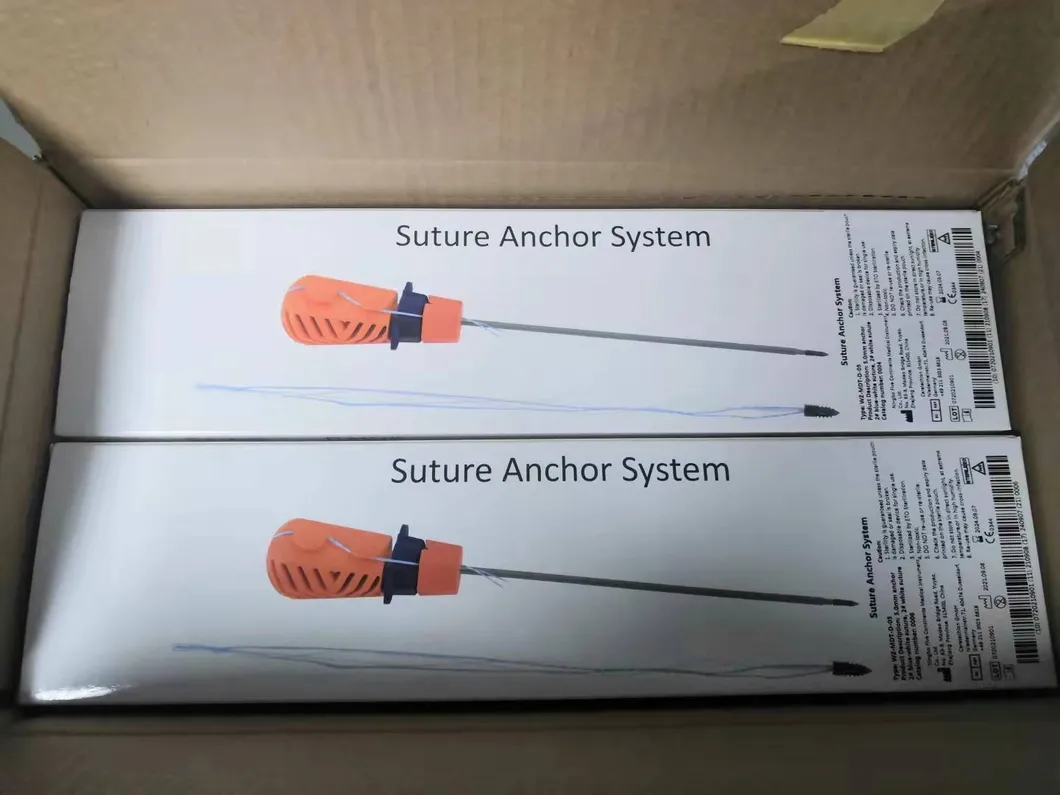

Packaging Box

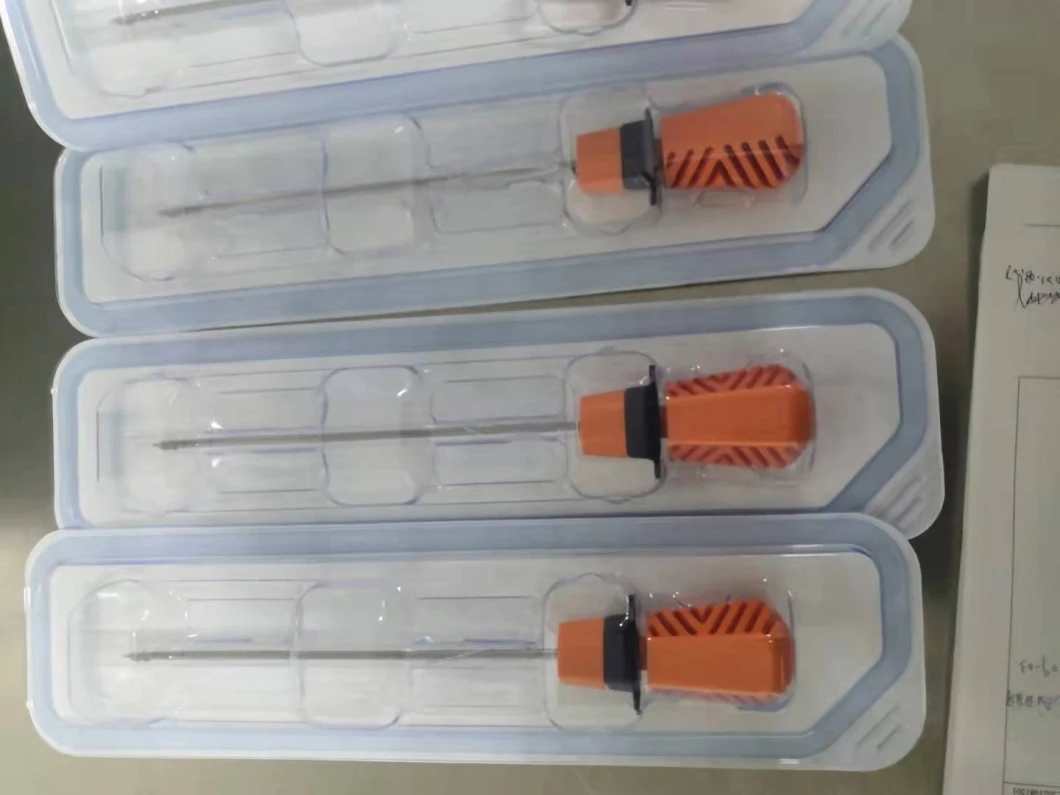

Sterile Packaging
📏 Specification

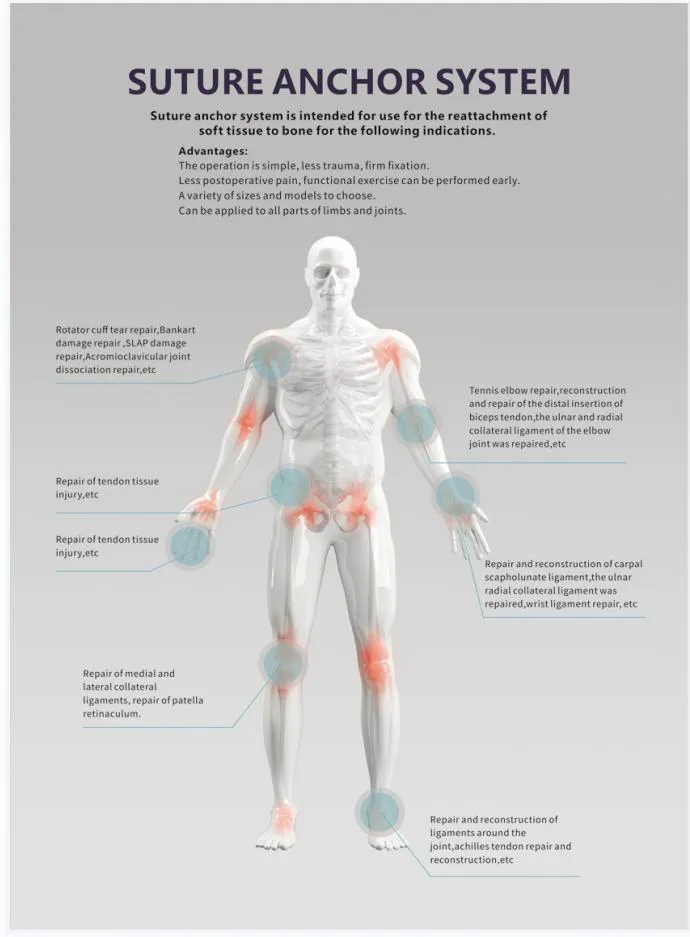

Specification Diagram 1

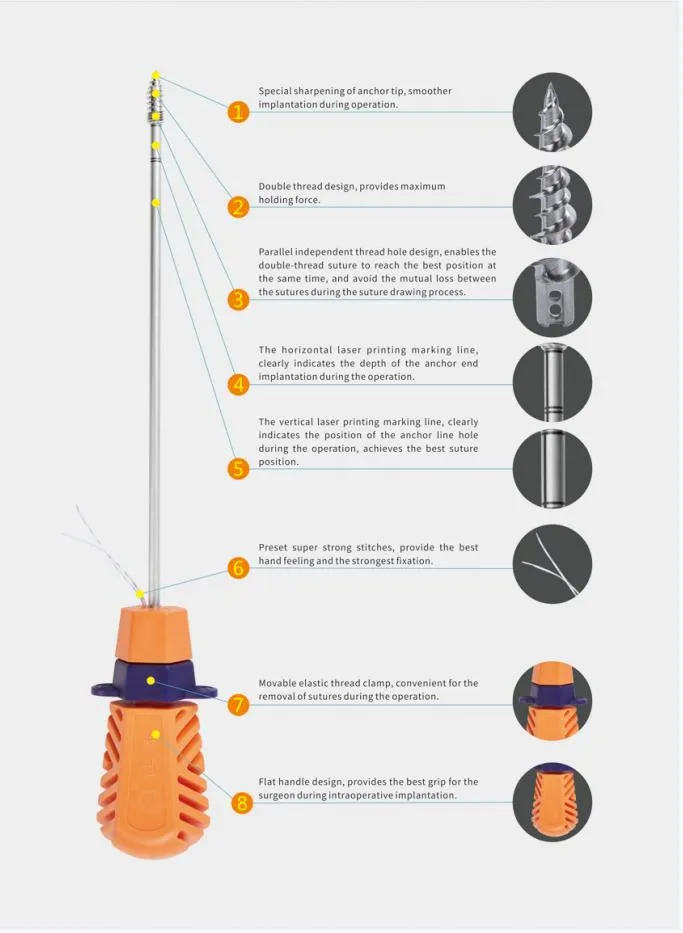

Specification Diagram 2
Item Value
PropertiesImplant Materials & Artificial Organs
Model NumberWZ-MDT-S-01
Instrument classificationClass II
Warranty1 Year
Product nameSuture Anchor System
MaterialTitanium Alloy
ColorSilver+Orange
SpecificationDiameter 1.8x6mm
CertificateCE
PackageSterile Packaging 1pc/package
UsageOrthopedic Surgery
ApplicationImplantology

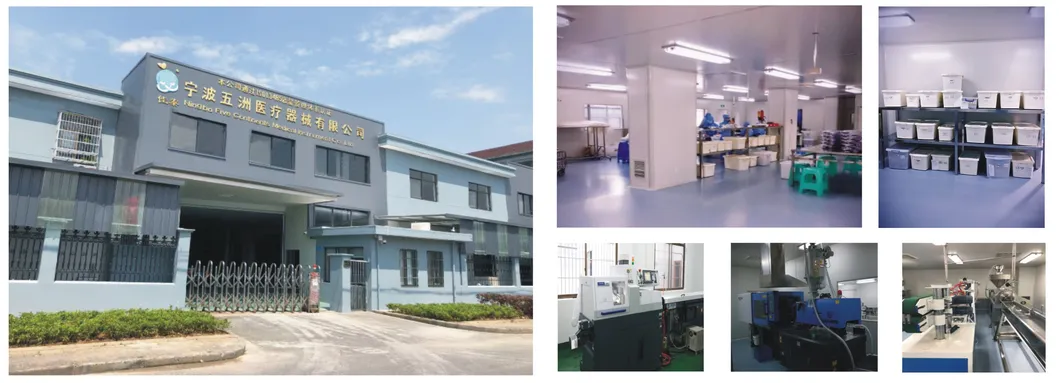

Product Capability Display
Frequently Asked Questions
What are the primary applications for this Suture Anchor System?
It is primarily used in orthopedic surgery, specifically for shoulder arthroscopy and other procedures to connect soft tissue to bone.
What materials are used for the anchor and the suture?
The anchor is made of high-strength Ti6Al4V titanium alloy, while the suture consists of ultra-high molecular weight polyethylene (UHMWPE).
Is the product provided in a sterile condition?
Yes, the system is EO (Ethylene Oxide) sterilized and individually packed in sterile blister packaging to ensure surgical safety.
What certifications does the Suture Anchor System hold?
The product is Class II instrument classified and holds both CE and ISO13485 certifications, meeting international medical standards.
What are the dimensions of the anchor?
The standard specification for the anchor is a diameter of 1.8mm and a length of 6mm, suitable for delicate orthopedic implants.
