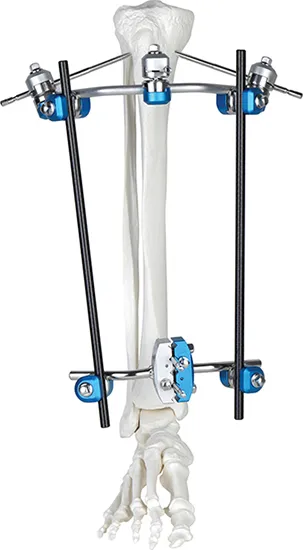

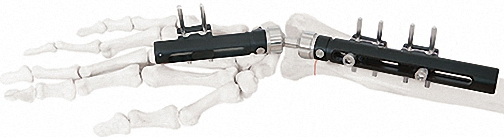

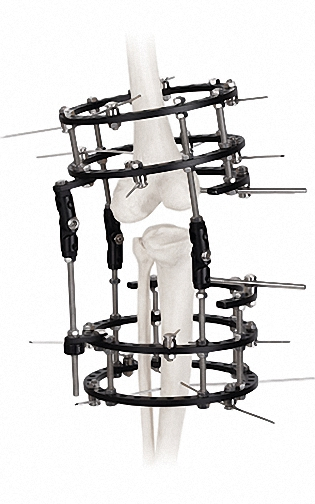

Titanium Alloy White & Black Bone External Fixator

1 / 5

Titanium Alloy White & Black Bone External Fixator

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Production Cap.

500,000 Pieces/Year

Origin

China

HS Code

90211000

Package

Box

Product Highlights

External Fixator -- Experience the Zenith of Modular Fixation Systems

⚙️

Autonomous arrangement of bone screws, adapting to proximal and distal fracture management.

⏱️

Snap-fit design for seamless and efficient surgical procedures.

🛡️

Top-grade Medical aluminum and carbon fiber for superior stability and visualization.

📦

Sleek, space-efficient frame for effortless use and convenient transportation.

🏥

Designed for complex fractures and soft tissue challenges with high precision.

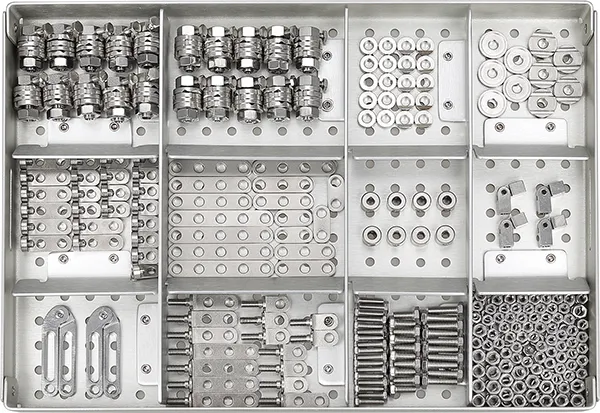

Technical Components List

Component Description	Specifications	Quantity
Independent Coupling	φ6*φ14(1.5-2.0)	10
Needle Clip	φ4*φ9 (φ1.0)	5
Double Groove Needle Clamp	φ4*φ14(2.0-2.5)	5
Post With Threaded Post	φ425(2 Hole)M4	8
Connection Plate	φ4*50 (5 Hole)	4
Fixator (Hinge)	M4*20mm	4
Hex Nut	M4	90
Straight Threaded Rod	M4*100	2
Bone Screws	1.2*150	20

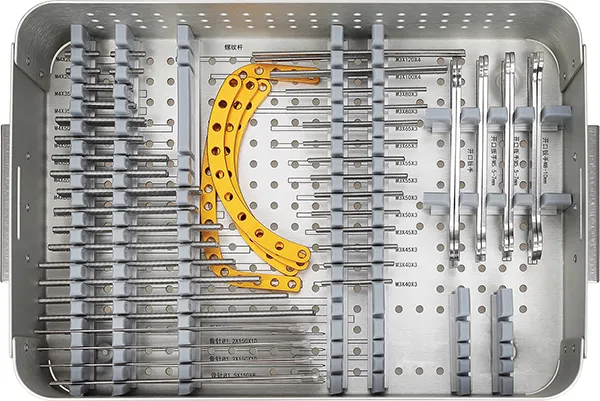

Instrument Set	Standard Case	1

Clinical Applications Gallery

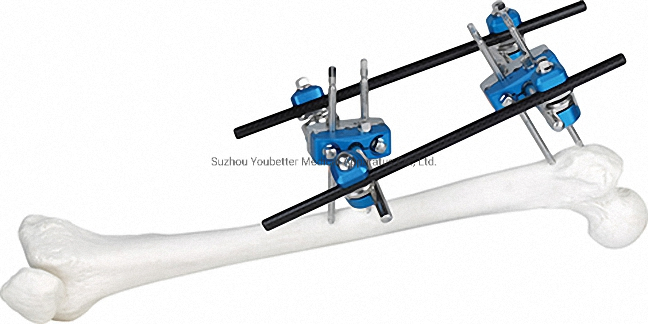

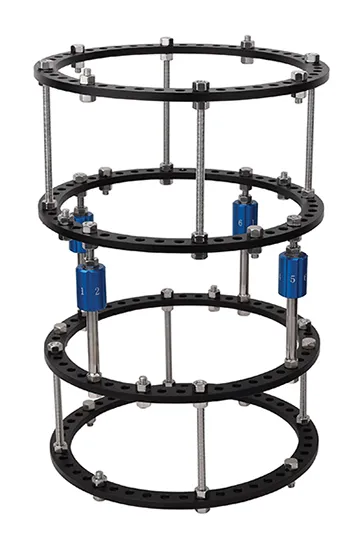

Lower Limbs Lengthening

Used for Tibia/Femur

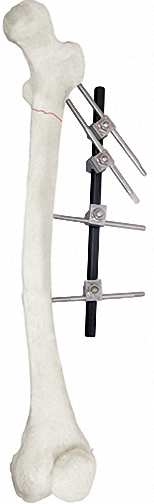

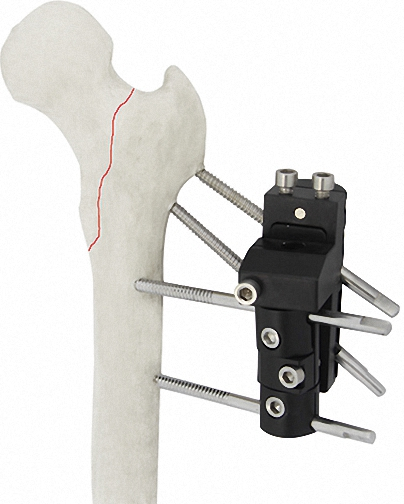

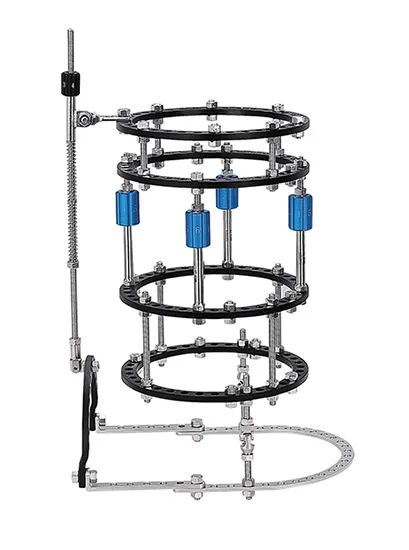

Orthopedic Fixator

Used for Humeral & Tibial

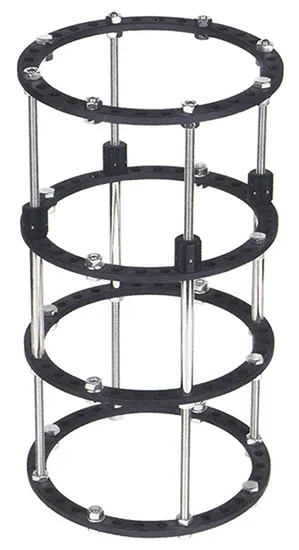

Ring Fixator

Standard Tibia/Femur Model

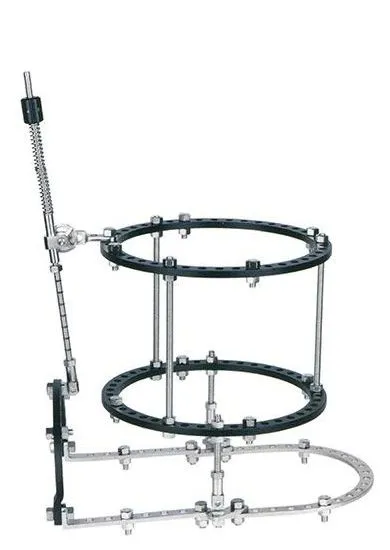

Ankle Joint Fixator

Used for Equinus Management

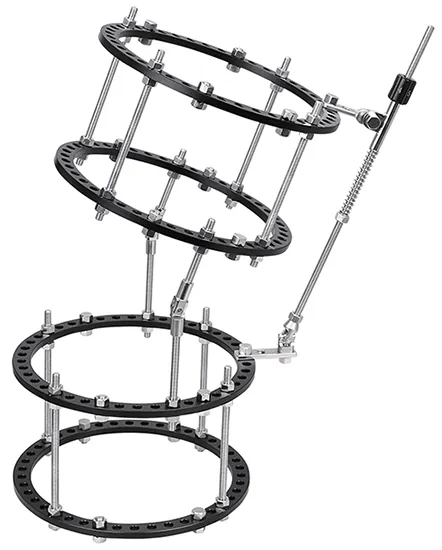

Knee Joint Fixator

Specific for Knee Stability

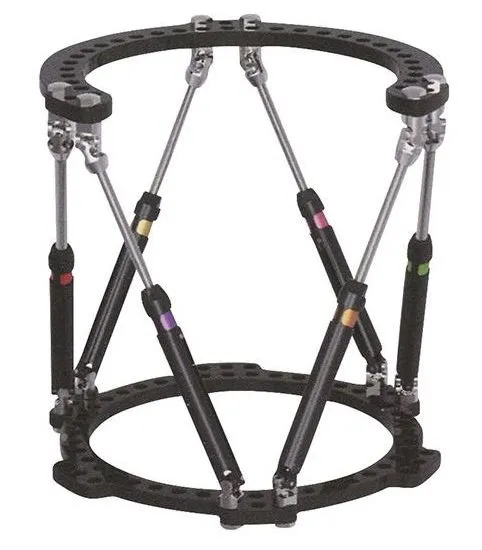

2/3 and Full Ring

Advanced Fixation Scenarios

Frequently Asked Questions

What materials are used in this external fixator?

The system utilizes high-grade Titanium Alloy and Stainless Steel, combined with Medical Aluminum and carbon fiber for optimal radiolucency and stability.

Is the fixator reusable?

Yes, the main frame components are designed to be reusable after proper sterilization procedures.

What certifications does the product hold?

The external fixation system is fully certified with CE and ISO13485 standards, ensuring international medical quality compliance.

Can it be used for limb lengthening?

Yes, we provide specific models designed for Lower Limbs Lengthening, applicable to both Tibia and Femur procedures.

How does the snap-fit design benefit surgeons?

The snap-fit design allows for rapid assembly and adjustment during surgery, significantly reducing operating time and improving fracture visualization.

What is the production capacity for this model?

We have a robust manufacturing capability of 500,000 pieces per year to meet large-scale clinical demands globally.
