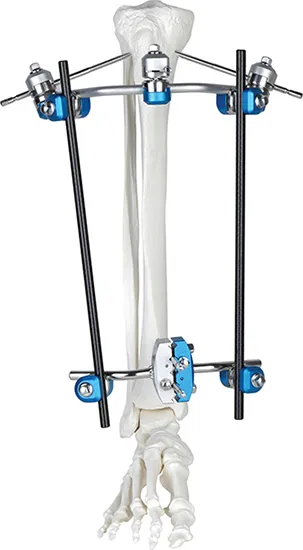

Titanium Alloy Femur Fixator for Bone Alignment

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Information

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Capacity

500,000 Pieces/Year

Product Description: Modular External Fixation System

💠Distinguished by cutting-edge technology and user-friendly operation.
💠Allows independent arrangement of bone screws for both proximal and distal fractures.
💠Incorporates snap-fit design for streamlined, time-efficient procedures.
💠Enhances fracture visualization using premium Medical aluminum carbon fiber.
💠Delivers optimal stability and flexibility in a compact frame.
💠Designed to address complex fractures and soft tissue loss.

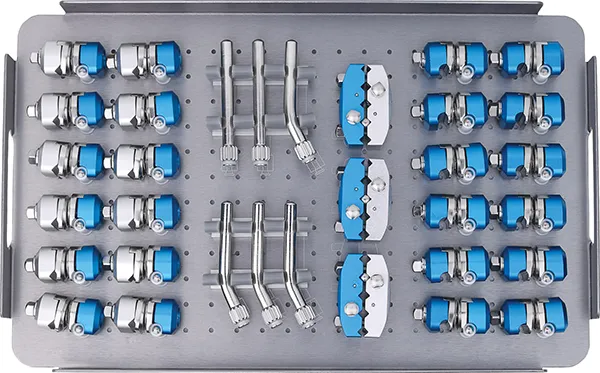

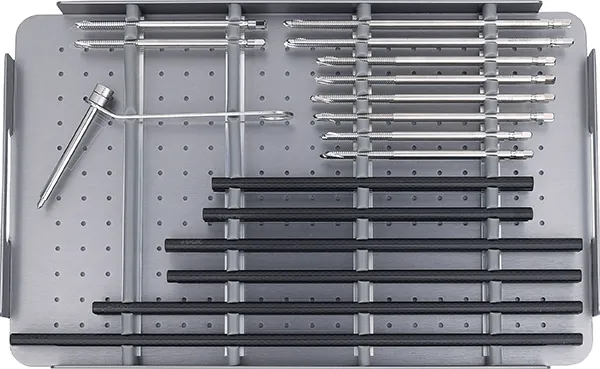

Component Item	Specification	Quantity
Pin To Rod Coupling	φ8/4-5	12
Rod To Rod Coupling	φ8/8	12
5-Hole Pin Clamp	φ8/5	3
Straight Post / 30° Post	φ8	2 / 4
Self Drilling/Self Tapping Bone Screws	φ5*120/130/150/180	Various
Carbon Fibre Rod	φ8*200/250/300/350	Various
T-Wrench / Torque Wrench	#7	1

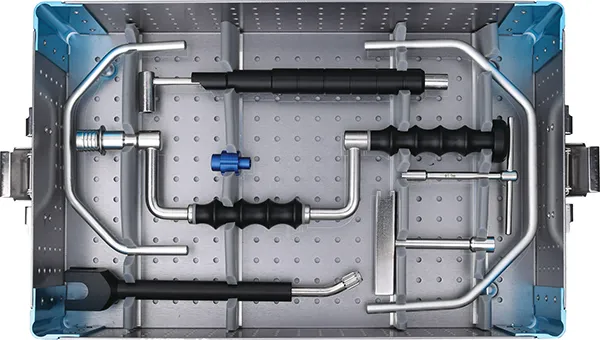

Instrument Set	Standard	1

Specialized Modular Kits

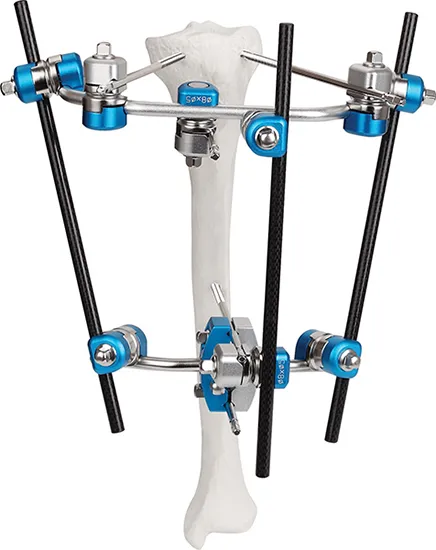

Proximal Tibia External Fixator Components:

Rod to Rod Coupling (4 Pcs)
Pin To Rod Coupling (3 Pcs)
5-Hole Pin Clamp (1 Pc)
30° Post (2 Pcs)
Carbon Fibre Rods & Bone Screws

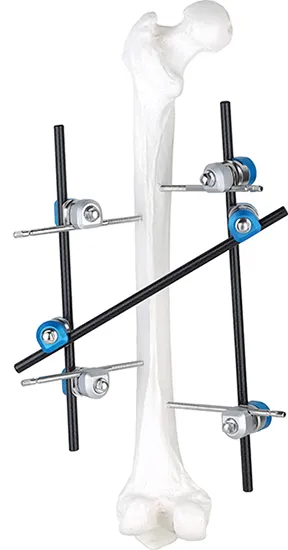

Femoral Shaft Fixator Components:

Rod To Rod Coupling (2 Pcs)
Pin To Rod Coupling (4 Pcs)
Carbon Fibre Rod 8*200mm/250mm
Self Drilling Screws 5*150mm (4 Pcs)

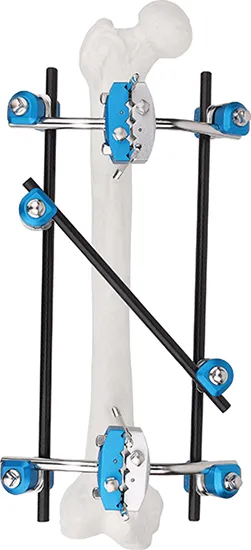

Half Ring Fixator (Tibia Perone)

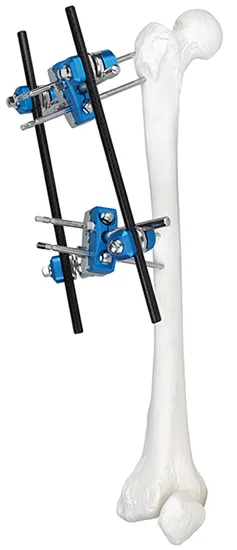

Proximal Femur Fixator

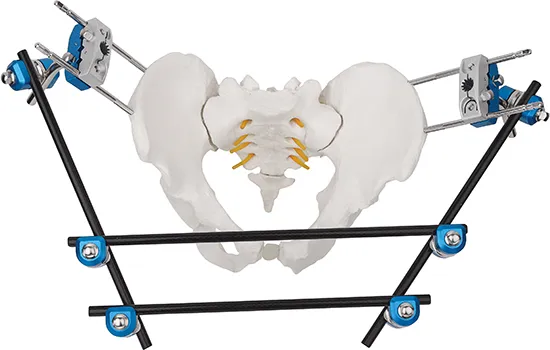

Pelvic Fixator Kit

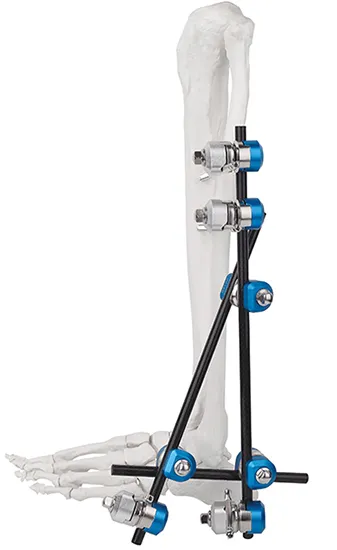

Ankle Joint Fixator

Frequently Asked Questions (FAQ)

🔵 What materials are used in the External Fixation system?

The system is constructed from high-grade Titanium Alloy and Stainless Steel. It also incorporates Medical aluminum carbon fiber for rods to ensure lightweight strength and radiolucency.

🔵 Is this fixation system reusable?

Yes, the system is designed to be reusable, offering a cost-effective solution for bone alignment and fixation procedures.

🔵 What are the key benefits of the carbon fiber components?

The use of premium medical carbon fiber enhances fracture visualization during imaging (X-rays/fluoroscopy) while providing excellent stability and reducing the overall weight of the frame.

🔵 Can the bone screws be arranged independently?

Yes, the modular design allows for the independent arrangement of bone screws for both proximal and distal fractures, providing surgeons with maximum flexibility.

🔵 Which clinical applications is this system suitable for?

This modular system is engineered to address complex fractures, soft tissue loss, and specific fixations for the pelvic area, femur, tibia, and ankle joints.

🔵 Does the product hold international quality certifications?

Yes, the External Fixator is certified under CE and ISO13485 standards, ensuring it meets international medical safety and quality requirements.
